Professional 75W soldering station with 3.5" LCD display, temperature range 200-480°C, ESD-safe design, and advanced features including temperature stabilization, calibration, hibernation mode, and settings memory for precision electronic soldering.

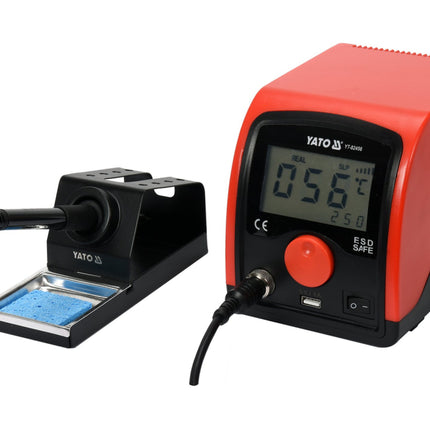

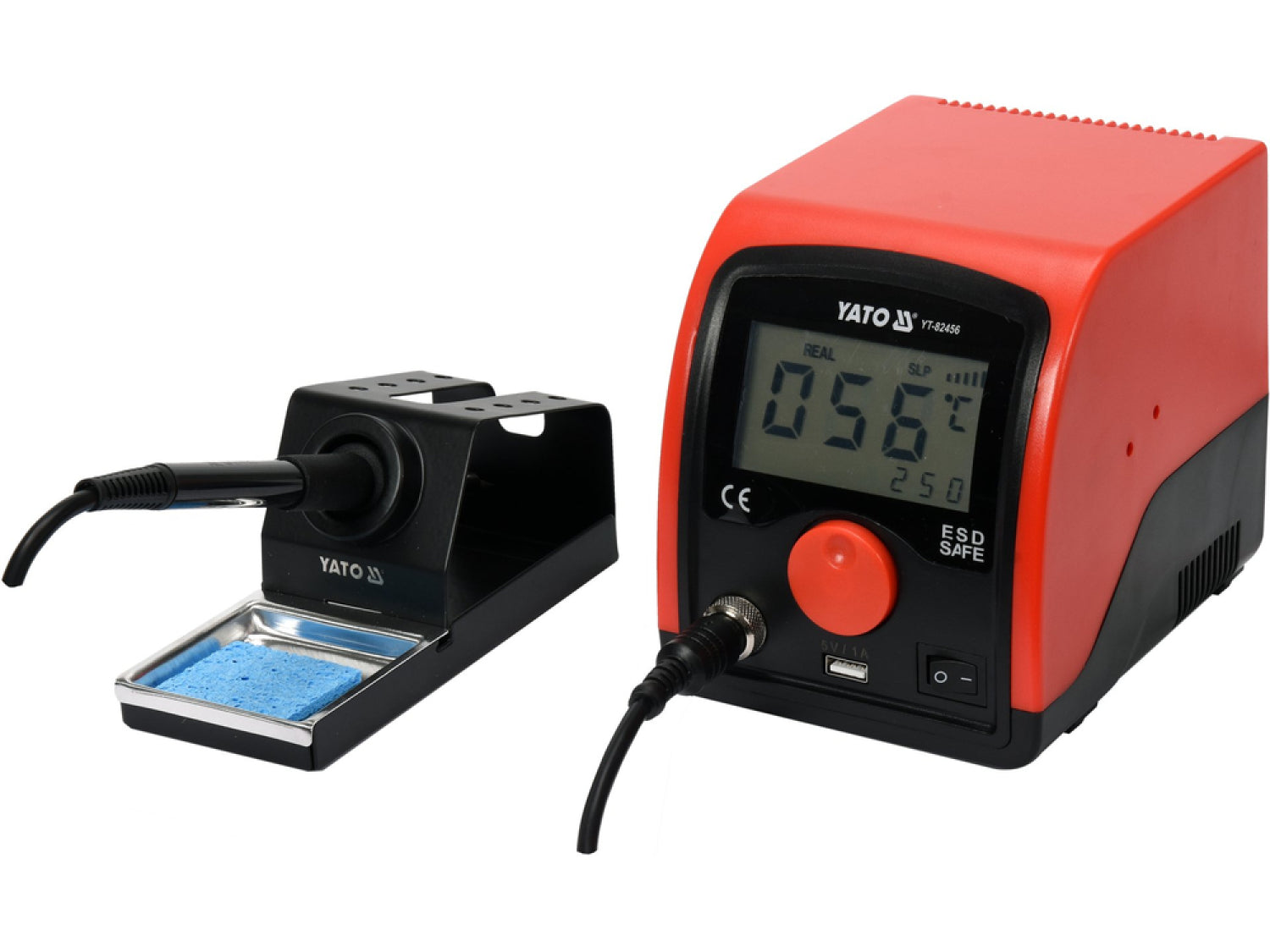

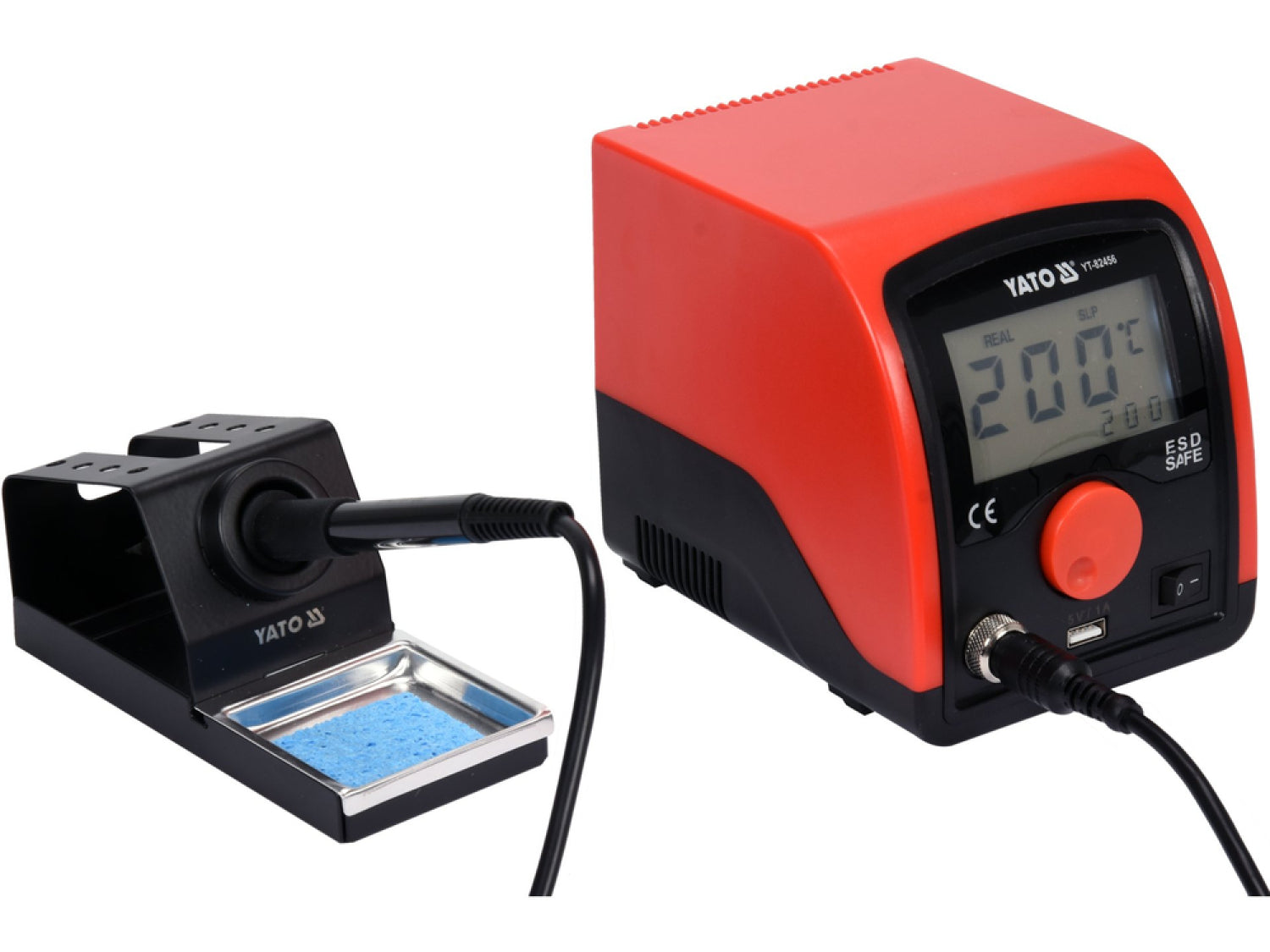

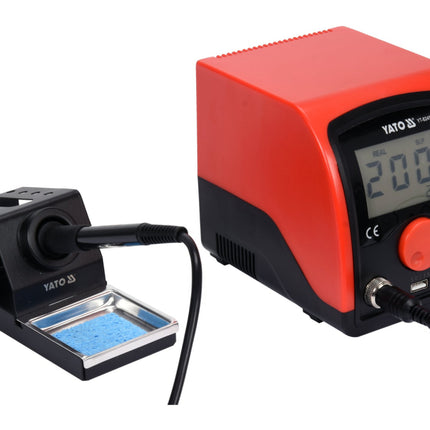

The YATO YT-82456 is a professional-grade soldering station featuring a large 3.5" LCD display with adjustable backlight, designed for precise electronic soldering applications. With 75W power output and a temperature range of 200-480°C, this ESD-safe station delivers exceptional performance for both hobbyists and professionals. The station heats up to operational temperature of 350°C in approximately 25 seconds, making it ideal for rapid soldering tasks.
This soldering station incorporates advanced temperature stabilization technology that maintains consistent heat output by continuously monitoring actual temperature and adjusting power consumption accordingly. The device features multiple intelligent functions including temperature calibration for sensor accuracy adjustment, automatic hibernation mode that reduces temperature to 200°C after 1-240 minutes of inactivity, and sensor failure detection for auto-diagnosis. The 908D soldering tip with ceramic heater and 900M head type is mounted on a stable metal stand, with a 1-meter cable for convenient workspace positioning.
The YT-82456 offers comprehensive user control through its intuitive LCD interface displaying set and actual temperatures, device status, lock function, sound signaling, hibernation mode, and intensity levels. Additional features include settings memory with three channels for saving preferred configurations, device lock function requiring a three-digit password for security, USB charging port (DC5V/1A), and audible signaling when the unit reaches operational temperature. The ESD-safe design prevents electrostatic charge accumulation, protecting sensitive SMD circuits from damage during soldering operations.
Key Features
- Large 3.5" LCD display with adjustable backlight showing real-time temperature and device status
- Advanced temperature stabilization system maintaining consistent heat output under varying conditions
- ESD-safe design preventing electrostatic charge accumulation to protect sensitive SMD circuits
- Multiple intelligent functions including temperature calibration, hibernation mode, sensor failure detection, and settings memory
- Rapid heating to 350°C in approximately 25 seconds with 75W power output
- Three-channel settings memory for saving preferred temperature configurations
- Device lock function with three-digit password security for unauthorized access prevention
- Automatic hibernation reducing temperature to 200°C after 1-240 minutes of inactivity

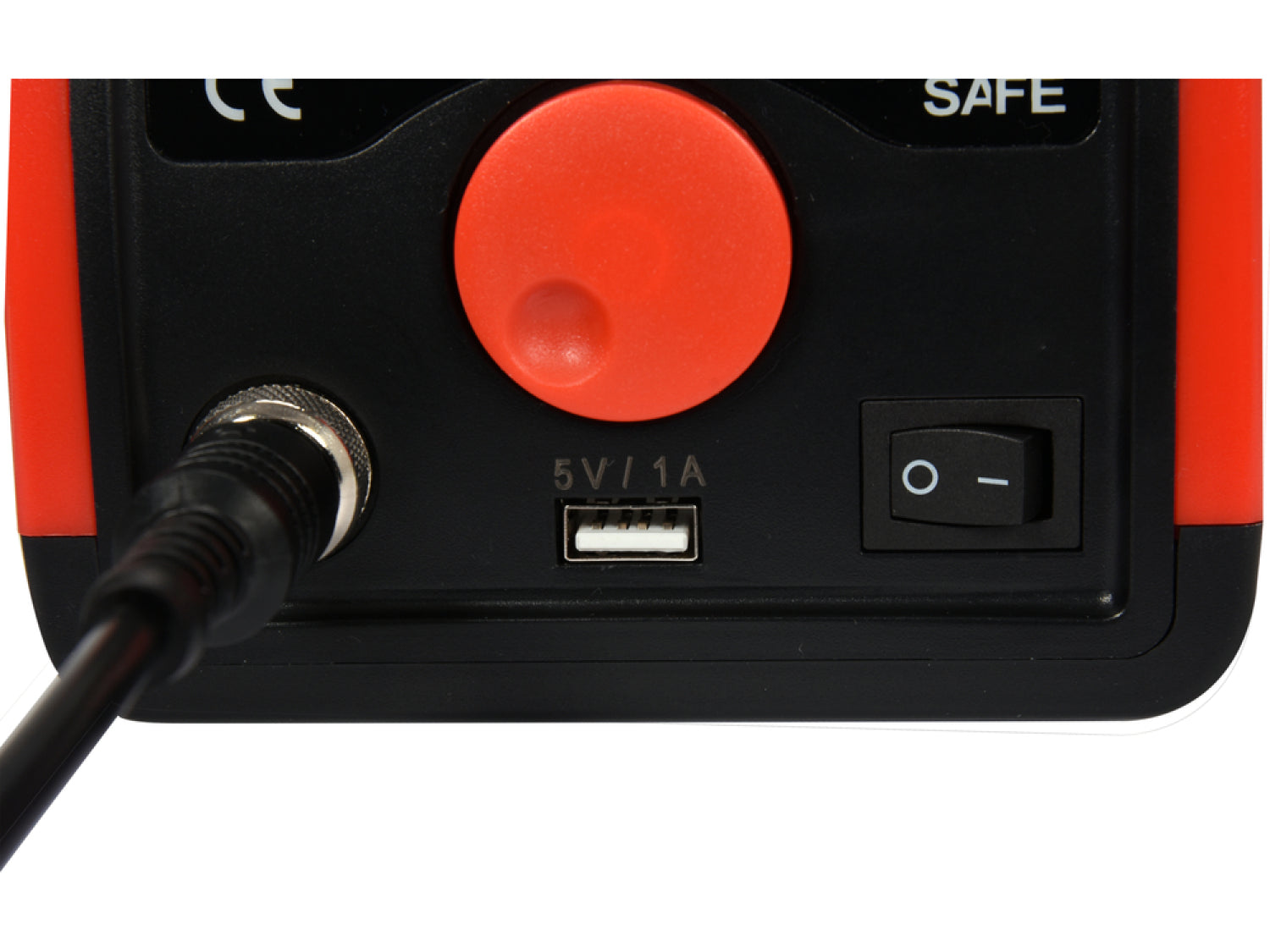

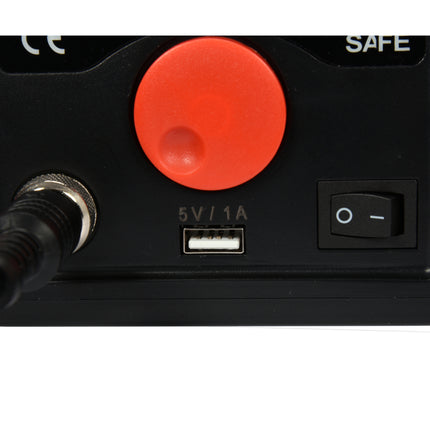

- USB charging port (DC5V/1A) for auxiliary power
- Audible signaling when unit reaches operational temperature
Technical Specifications
| Specification |
Value |
| Model | YT-82456 |
| Brand | YATO |
| Type | Soldering Station, ESD-safe |
| Power | 75W |
| Voltage | 220-240V AC |
| Frequency | 50Hz |
| Temperature Range | 200-480°C |
| Temperature Accuracy | ±1°C |
| Maximum Working Temperature | 480°C |
| Heating Time to 350°C | Approximately 25 seconds |
| Soldering Tip Type | 908D with 900M head |
| Heater Type | Ceramic heater |
| Heater Outer Diameter | 3.85mm |
| Heater Working Voltage | 24V |
| Tip Weight | Approximately 100g |
| Cable Length | 1m |
| Display Type | LCD 3.5" (89mm) with adjustable backlight |
| Feed Type | With power cord |
| Dimensions | 160x120x140mm |
| Weight | 2.1kg |
| Functions | Temperature stabilization, temperature calibration, device hibernation (1-240 minutes), sensor failure detection, settings memory (3 channels), device lock, sound signaling |
| USB Charging Port | DC5V/1A |
| Front Switch | Yes |
| Temperature Control | Yes |
| Electrical Protection Class | Class I |
| Fuse Rating | 5V DC / 1A |
| Series | GRF |
| Charger Type | USB |
Order Yato SOLDERING STATION 3.5 LCD TIP 900M 75W | YT-82456 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
