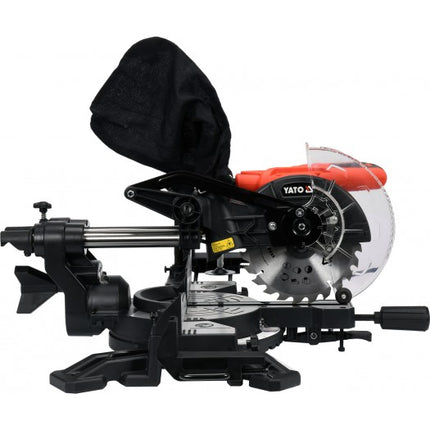

Professional miter saw for cutting skirting boards, panels, siding, abutting panels, plastic trees, cable trays, square timber, cotton, etc. They ensure accurate and fast cutting of materials.

Features:

laser cutting line indicator
Side supports for cutting longitudinal elements
Stable and level base with precise vertical and horizontal cutting angle adjustment
Feed carrier of cutting disc
Smoothly working integrated blade mixing guard with switch
The clamp integrated with the base enables safe and quick assembly of processed materials
Built-in dust extraction system
The compact dimensions and carriage handle in the central part of the housing ensure proper balance and easy carrying
Disc mounting hole: 30mm
Dust bag included

height x max.cutting length:

Horizontal Rotation Angle 0° / Tilt Angle 0° [mm]: 60×210
Horizontal rotation angle 45° / tilt angle 0° [mm]: 60×145
Horizontal Rotation Angle 0° / Tilt Angle 45° [mm]: 38 x 210
Horizontal Rotation Angle 45° / Tilt Angle 45° [mm]: 38×145

Technical data:

Code: YT-82172
EAN: 5906083047268
Cutting depth [mm]: 60
power [w]: 1500
Rotation speed: 4500
Diameter [mm]: 185
Circular saw: garbage. x outer dia install thickness x max. [mm]: 185 x 30 x 3.0

SKU: YT-82172
