Description

Features:

  • The universal meter yt-73080 with a manual range for each measurement allows you to perform basic and advanced electrical measurements.
  • This is the basic model in our offer.
  • Additional protection against mechanical damage is the so-called holster - a rubber housing that is pulled over the housing of the device.

Basic measurements:

  • Alternating voltage measurement: ac 0-500v
  • Dc voltage measurement: dc 0-500v
  • Dc current measurement: dc 0-5a
  • Resistance measurement: 0-2m
  • Diode test: I f 1ma, u r 3v
  • Continuity test: 0-30

Additional measurements:

  • Hfe transistor test: 0-1000, built-in test socket
  • Square wave generator: 5vpp, 50hz

Measurement accuracy:

An example of determining the accuracy for the measurement of ac voltage. Calculation for the measurement result: 235v

  • The accuracy of the measurement of the yt-73080 meter for this range is: ± (2% + 10), resolution 1v
  • Calculation of measurement error formula: (measurement result x 2%) + 10 x resolution
  • Calculations: (235 x 2%) + 10 x 1 = 4.7 + 10 = 14.7v

Additional information:

  • Lcd display, the maximum displayed result: 1999
  • Acoustic signal in the circuit continuity test for resistance below 30ω
  • Automatic switching of the diode test on the continuity test with a circuit resistance below 30ω (no possibility to set the meter for diode test only)
  • Measuring probes included
  • Construction with overload protection
  • Housing made of abs plastic + the so-called holster, I.E. A rubber casing that protects the meter against mechanical damage
  • Low battery indicator
  • Power supply: 9v battery (6f22)

Technical data:

  • Symbol: yt-73080
  • Ean: 5906083730801
  • Brand: yato
  • Weight (kg): 0.2800
  • Master carton mc: 50
  • Pile: 900
  • Measurement of hfe of the transistor: yes
  • Ac voltage measurement: 0-500v
  • Dc voltage measurement: 0-500v
  • Resistance measurement: 0-2mω
  • Constant current: 0-5a
  • Continuity test: yes
  • Diode test: yes

Read more

Product form

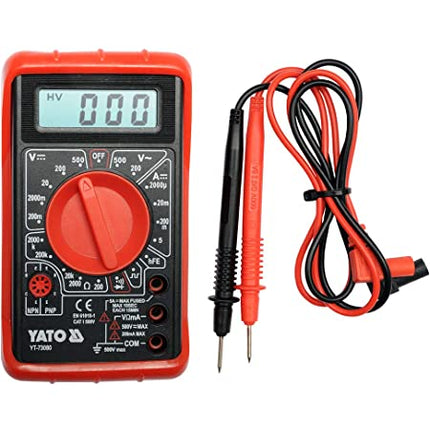

Digital Multimeter

Yato

SKU: YT-73080

15,000 IQD
