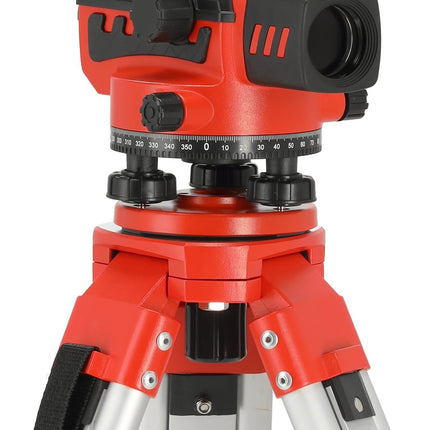

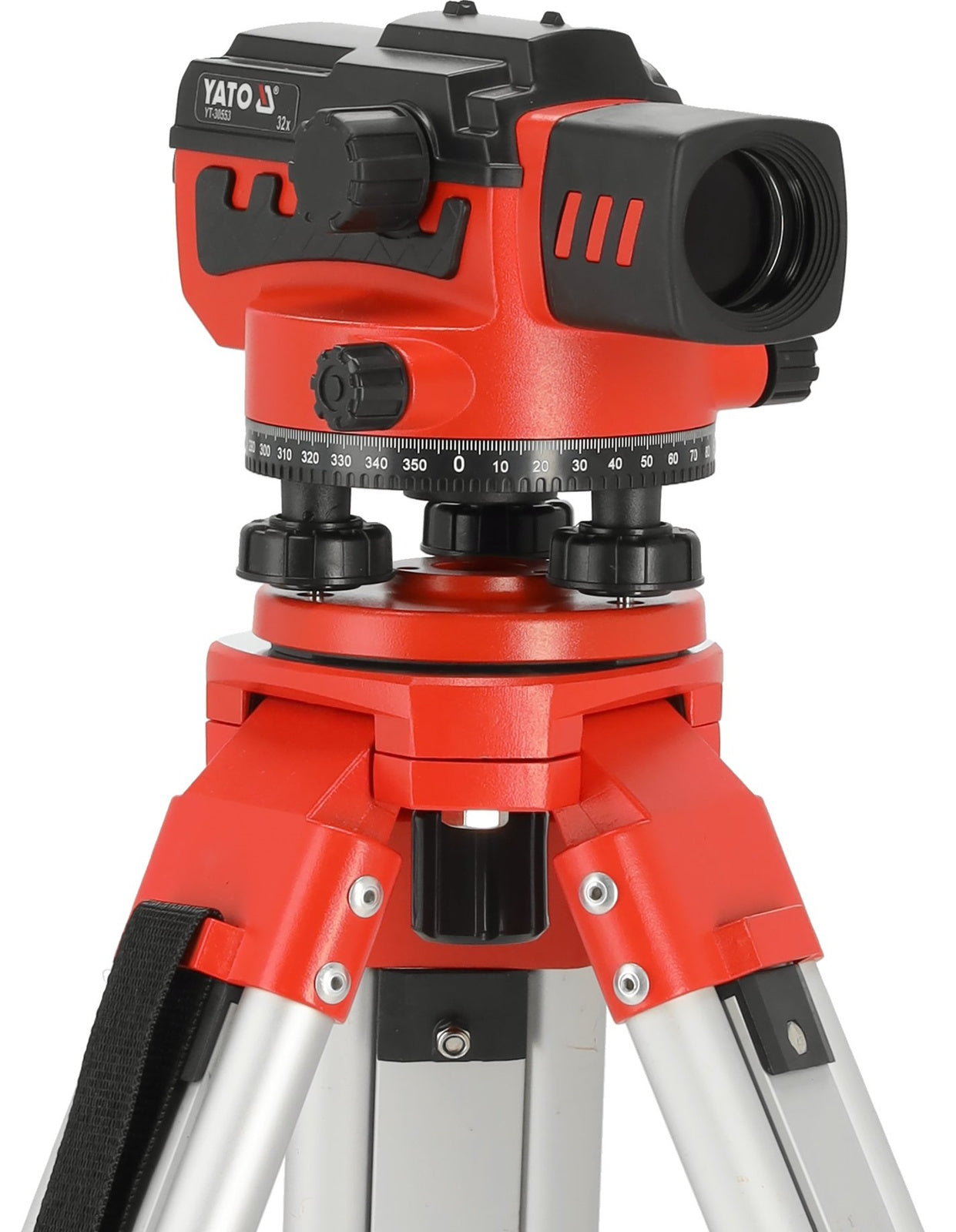

The YATO YT-30553 32X Automatic Level with Stadia and Tripod is a practical optical levelling set designed for construction, surveying, landscaping, road work, and site measurement tasks. With 32x telescope magnification and a measuring range of up to 100m, it helps users take accurate height and level measurements across job sites.
This automatic level provides reliable measurement accuracy, including ±2mm standard deviation per 1km double run and 1mm height measurement accuracy at 30m. The gas-operated compensator with ±15' compensation range helps stabilize the line of sight, making it easier to achieve consistent results during field work.

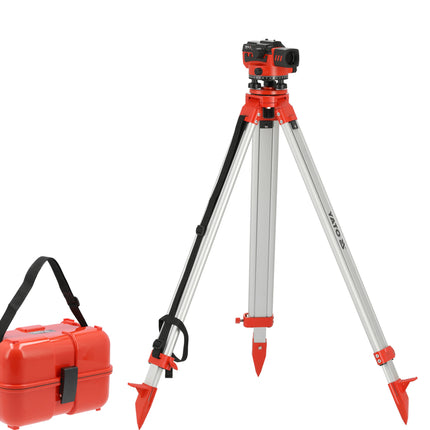

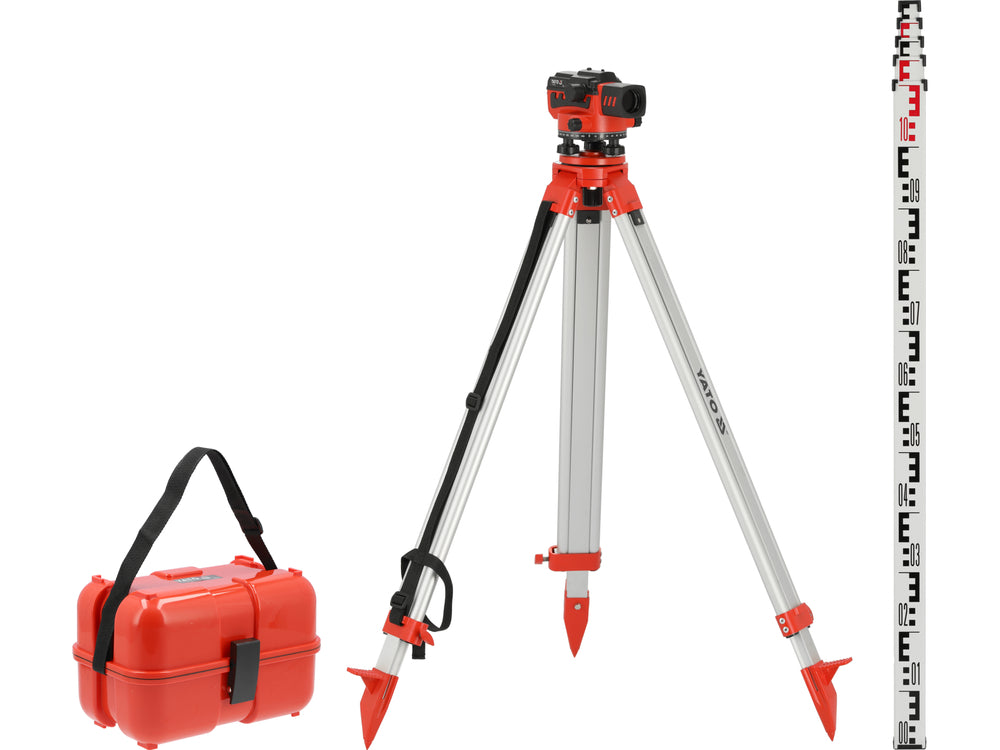

The YT-30553 set is supplied with essential accessories, including a tripod, measuring rod, plumb bob, adjustment pin, hex key, and carrying case. With IP54 protection and an operating temperature range from -20°C to +50°C, it is suitable for regular outdoor use in construction and measurement environments. Product specifications are based on the YATO listing for YT-30553, which identifies the 32x magnification, 100m range, IP54 protection, tripod, measuring rod, and complete accessory set.
Features:
- 32x automatic optical level for construction and surveying work
- Measuring range up to 100m for site levelling applications
- Minimum measuring distance of 1m for close-range checks
- ±2mm standard deviation per 1km double measurement
- 1mm height measurement accuracy at 30m
- Gas-operated compensator for stable measurement performance
- ±15' compensation range with ±0.5" compensation accuracy
- 360° horizontal circle with 1° graduations
- 38mm lens diameter for clear viewing
- IP54 protection for outdoor jobsite use
- Includes tripod, measuring rod, plumb bob, tools, and carrying case
- Suitable for construction, road work, landscaping, site layout, and surveying tasks
Specifications:
| Specification |
Details |
| Brand |
YATO |
| Model |
YT-30553 |
| Product Type |
Automatic Optical Level Set |
| Standard |
CE |
| Magnification |
32x |
| Measuring Range |
100m |
| Minimum Measuring Distance |
1m |
| Standard Deviation |
±2mm / 1km double measurement |
| Height Measurement Accuracy at 30m |
1mm |
| Constant |
0 |
| Multiplication Factor |
100 |
| Horizontal Circle |
360° / 1° increments |
| Compensation Range |
±15' |
| Compensation Accuracy |
±0.5" |
| Compensation Type |
Gas-operated |
| Bubble Tube Accuracy |
8′ / 2mm |
| Lens Diameter |
38mm |
| Tripod Thread Size |
5/8 inch / 15.9mm |
| Protection Rating |
IP54 |
| Operating Temperature |
-20°C to +50°C |
| Storage Temperature |
-20°C to +50°C |
| Dimensions |
210 x 135 x 140mm |
| Weight |
1.4kg |
