Professional pneumatic oil extractor with 90L capacity, six interchangeable suction probes, and advanced pressure control system for efficient oil drainage in automotive, industrial, and marine applications.

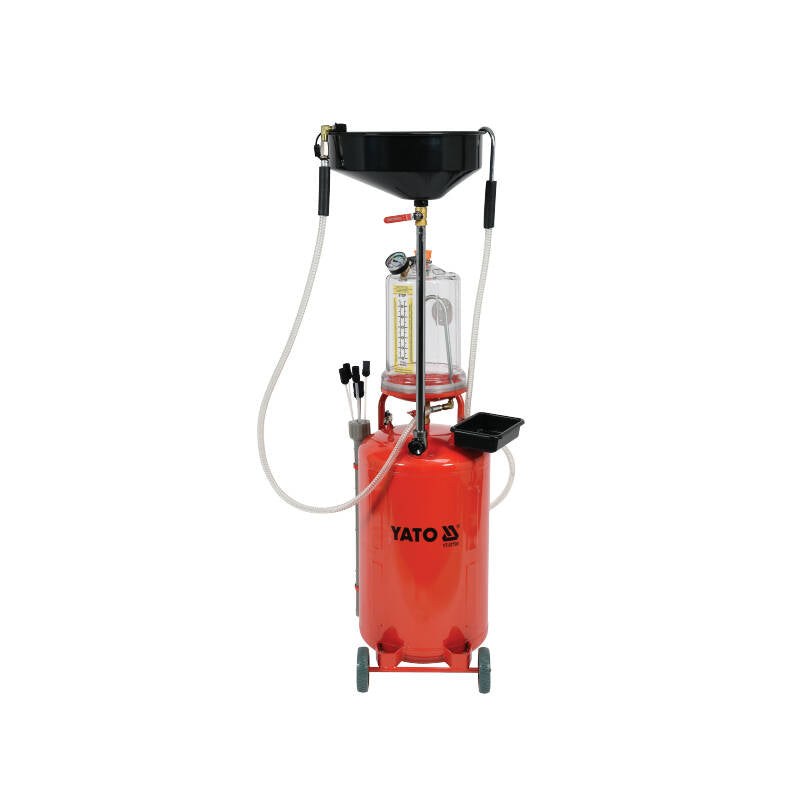

The Yato YT-07190 Pneumatic Oil Drain/Extractor 90L is a professional-grade device designed for efficient oil removal from various equipment and machinery using pneumatic power. With a substantial 90-liter tank capacity, this extractor eliminates the need for manual effort, making oil changes faster and more convenient across automotive, industrial, and marine applications. The device features six interchangeable suction probes including flexible and metal options to accommodate different equipment types and sizes, ensuring versatility in various maintenance scenarios.
This pneumatic oil extractor is engineered with advanced specifications including a negative pressure generation capability of -1 to 0 MPa, recommended extraction pressure of 0.7 MPa, and maximum extraction pressure of 0.8 MPa. The unit operates with a required air flow of 150 l/min and features an air connection diameter of 3/8" (10.0 mm). With four wheels for mobility and a height of 150 cm, this equipment is designed for optimal accessibility and ease of movement within workshops and industrial facilities. The sound pressure level of 101.2 ± 3.0 dB(A) makes it suitable for professional environments.

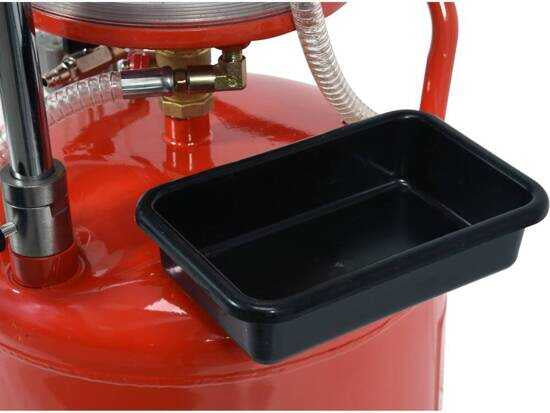

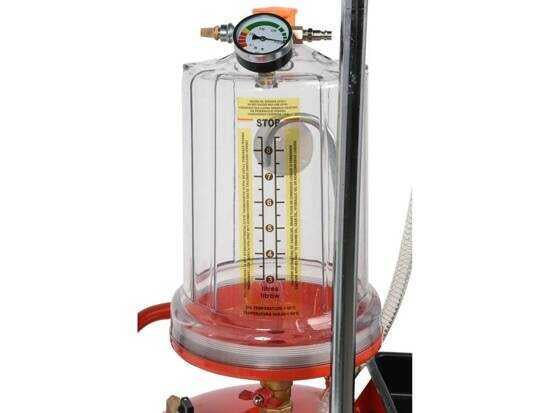

The YT-07190 is equipped with a multi-tank system including a main tank capacity of 70 liters, a control tank of 10 liters, and a bowl capacity of 10 liters with a 410mm diameter. The device maintains optimal performance with fluid temperatures between 40-60°C and includes colic functionality for enhanced operation. This robust equipment is ideal for automotive workshops, industrial facilities, marine applications, agricultural maintenance, construction sites, and mining operations where regular oil changes and maintenance are essential.
Key Features
- Pneumatic power operation eliminates manual effort and reduces oil change time
- Large 90-liter tank capacity handles substantial oil volumes from large machinery
- Six interchangeable suction probes including flexible and metal options for versatility
- Advanced pressure control with -1 to 0 MPa negative pressure and 0.7 MPa recommended extraction
- Mobile design with four wheels and 150cm height for easy workshop accessibility
- Multi-tank system with 70L main tank, 10L control tank, and 10L collection bowl
- Operates efficiently with 150 l/min air flow and 3/8" air connection
- Suitable for automotive, industrial, marine, agricultural, and construction applications
- Sound pressure level of 101.2 dB(A) for professional workshop environments
- Operates with fluid temperatures between 40-60°C for optimal performance
Technical Specifications
| Specification |
Value |
| Product Code | YT-07190 |
| Brand | Yato |
| Series | GRF |
| Tank Capacity | 90 liters |
| Main Tank Capacity | 70 liters |
| Control Tank Capacity | 10 liters |
| Collection Bowl Capacity | 10 liters |
| Bowl Diameter | 410mm |
| Height | 150cm |
| Mass/Weight | 20kg |
| Number of Wheels | 4 |
| Required Air Flow | 150 l/min |
| Air Connection Diameter | 3/8" (10.0mm) PT standard |
| Negative Pressure Generated | -1 to 0 MPa |
| Recommended Extraction Pressure | 0.7 MPa |
| Maximum Extraction Pressure | 0.8 MPa |
| Maximum Tank Emptying Pressure | 0.18 MPa |
| Fluid Temperature Range | 40-60°C |
| Sound Pressure Level | 101.2 ± 3.0 dB(A) |
| Acoustic Power Level | 119.8 ± 3.0 dB(A) |
| Suction Probes Included | 6 probes - 4 flexible (5x780mm, 6x780mm, 6x780mm, 8x780mm) and 2 metal (6x730mm, 8x730mm) |
| Colic Function | Yes |
| Place of Origin | China |
| OEM Availability | Available |
| Sample Availability | Available |
| Supply Ability | 9999 pieces per month |
| Payment Terms | L/C, T/T, D/P, D/A |
Order Yato PNEUMATIC OIL DRAINS/EXTRACTORS 70L | YT-07190 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
