Professional 1500W wet tile saw with laser guide, 250mm diamond blade, and precision cutting up to 1200mm. Perfect for ceramic tiles, porcelain, and stoneware with adjustable 0-45° cutting angles.

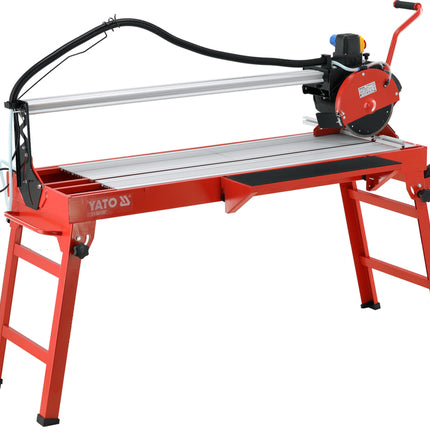

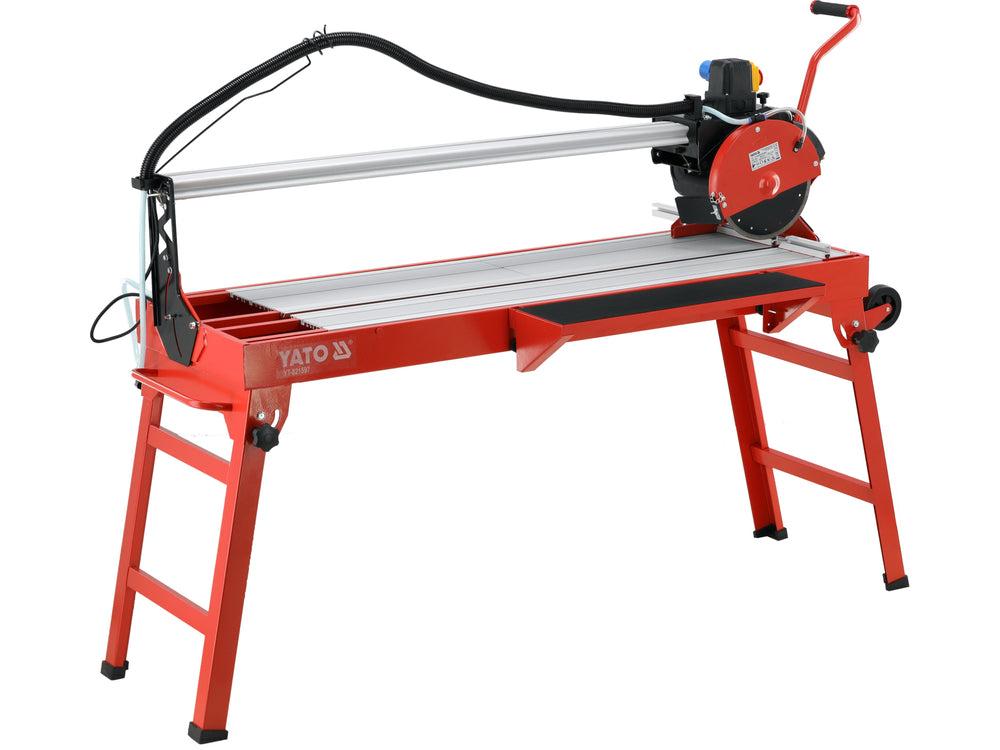

The YATO Tile Saw Machine YT-821597 is a professional-grade wet cutting machine specifically designed for ceramic materials including tiles, glazed tiles, porcelain stoneware, and terracotta. This robust table saw features a powerful 1500W motor with rotational speed of 2990 rpm, ensuring precise burr-free cutting in both straight lines and at 45-degree angles. The machine is equipped with a large working surface of 1000x460mm and an additional table top that allows for cutting large-format tiles up to 1200x600mm maximum size.
The precision cutting capability is enhanced by an integrated laser pointer (Class 2, 655nm wavelength) that eliminates the need for scribing, combined with a guide rail system for absolute accuracy. The machine features adjustable cutting length (max 1250mm), depth (50mm at 90°, 37mm at 45°), and angle (0-45°), with a movable head in the vertical axis for versatile cutting operations. Safety is paramount with features including a residual current circuit breaker, cutting blade guard, and wet operation capability with attached water pump and hose.
The machine is built with a duralumin table top, 4 folding legs with locking knobs, and large wheels with handle for easy transportation. It operates at 230V AC, 50Hz with IP54 protection grade and Class I electrical insulation. The acoustic pressure is 85.0±3.0 dB(A) with vibration levels below 2.5 m/s². Weighing 51kg, this professional tile cutter combines durability, precision, and ease of use for both professional contractors and serious DIY enthusiasts.
Key Features
- Powerful 1500W motor with 2990 rpm for burr-free cutting
- Integrated Class 2 laser pointer (655nm) with guide rail for precision cutting without scribing
- Large working surface 1000x460mm with additional table top for large-format tiles up to 1200x600mm
- Adjustable cutting parameters: length (1250mm max), depth (50mm-90°/37mm-45°), and angle (0-45°)
- Wet operation capability with attached water pump and hose for dust-free cutting
- Safety features including residual current circuit breaker and cutting blade guard
- Portable design with 4 folding legs, large wheels, and handle for easy transport
- Duralumin table top for durability and corrosion resistance
- Professional-grade construction suitable for ceramic, glazed tiles, porcelain stoneware, and terracotta
Technical Specifications
| Specification |
Value |
| Model | YT-821597 |
| Brand | YATO |
| Series | GRF |
| Power | 1500 W |
| Voltage | 230 V AC |
| Frequency | 50 Hz |
| Rotational Speed | 2990 min⁻¹ |
| Cutting Disc Outer Diameter | 250 mm |
| Cutting Disc Internal Diameter | 25.4 mm |
| Maximum Cutting Length | 1250 mm |
| Maximum Cutting Depth | 50 mm (90°), 37 mm (45°) |
| Cutting Angle Range | 0-45° |
| Working Table Dimensions | 1000 x 460 mm |
| Work Type | Dry, Wet |
| Laser Type | Class 2 Laser |
| Laser Wavelength | 655 nm |
| Laser Power | ≤1 mW |
| Laser Power Supply | 2x1.5V AAA Batteries |
| Switch Type | Yes, Residual Current |
| Electric Insulation Class | Class I |
| Protection Grade | IP54 |
| Acoustic Pressure | 85.0 ± 3.0 dB(A) |
| Acoustic Power | 98.0 ± 3.0 dB(A) |
| Vibration Level | <2.5 m/s² |
| Weight | 51 kg |
| Table Material | Duralumin |
| Legs | 4 Folding Legs with Locking Knobs |
| Water System | Attached Water Pump and Hose |
| Suitable Materials | Ceramic Tiles, Glazed Tiles, Porcelain Stoneware, Terracotta |
| Portable | Yes - Large Wheels and Handle |
