Description

Professional SDS Plus Premium drill bit for reinforced concrete with X-tip technology, 8mm diameter, 210mm length, featuring polished surface and automatic head soldering for superior durability and 50% more holes per bit.

The YATO YT-41943 SDS Plus Premium drill bit is a professional-grade tool specifically designed for drilling reinforced concrete (dzelzbetons) in industrial applications. This premium series drill bit features an advanced X-tip cutting edge technology that delivers superior performance compared to standard drill bits. With a total length of 210mm and 8mm diameter, this bit is engineered to withstand the demanding conditions of reinforced concrete drilling, including encounters with steel reinforcement bars. This drill bit incorporates a polished surface finish that reduces friction by up to 50%, allowing operators to drill significantly more holes before requiring replacement. The four-cutter head design is equipped with additional cutting edges specifically engineered to penetrate through reinforcement steel within the concrete matrix. The automatic soldering process of the cutting head ensures maximum heat resistance during continuous drilling operations, preventing head detachment when the bit contacts reinforcement - a common failure point with standard drill bits. The bit is constructed from elastic high-carbon steel (40Cr material grade) with a hardness rating of 40 HRC, providing exceptional resistance to deformation from high impact forces and frequent percussion. The deep flute design with four flutes before the head efficiently evacuates drilled material, while the centralization process prevents lateral deflection. The SDS-Plus holder attachment conforms to international SDS+ size standards, ensuring compatibility with all standard SDS-Plus power tools.

Key Features

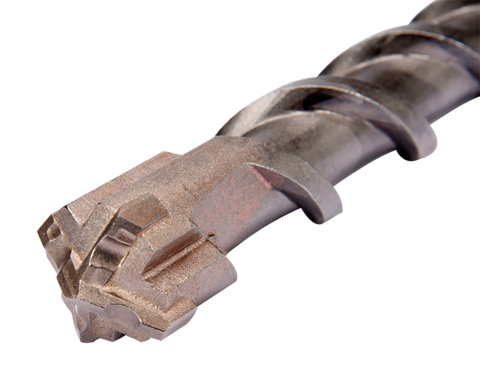

X-tip four-cutter head design penetrates reinforcement steel in concrete
Polished surface reduces friction and enables 50% more drilling capacity
Automatic head soldering ensures maximum heat resistance during continuous drilling
Deep flute design efficiently evacuates drilled material and prevents clogging
High-carbon steel construction (40Cr) with 40 HRC hardness resists deformation
Centralization process prevents lateral deflection and maintains hole accuracy
International SDS-Plus standard compatibility with all power tools
Maintains diameter consistency after multiple uses for easy anchor insertion

Technical Specifications

Specification	Value
Product Code	YT-41943
Brand	YATO
Series	GRD Premium
Total Length	210 mm
Diameter	8 mm
Working Length	150 mm
Holder Type	SDS-Plus
Material	40Cr High-Carbon Steel
Surface Treatment	Polished Coating
Hardness	40 HRC
Cutting Edge Material	DD Carbide
Blade Type	X-tip
Spiral Type	Single
Additional Cutting Edges	Yes
Automatic Head Soldering	Yes
Application	Reinforced Concrete (Dzelzbetons)
Stock Status	80 pieces available
Price	10.34 PLN (gross)
Warranty	Manufacturer warranty included
Compliance	International SDS+ standards

YATO SDS Plus Premium Drill Bit 8mm x 210mm Reinforced Concrete

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

SKU: YT-41943

4,000 IQD

Description

Professional SDS Plus Premium drill bit for reinforced concrete with X-tip technology, 8mm diameter, 210mm length, featuring polished surface and automatic head soldering for superior durability and 50% more holes per bit.

The YATO YT-41943 SDS Plus Premium drill bit is a professional-grade tool specifically designed for drilling reinforced concrete (dzelzbetons) in industrial applications. This premium series drill bit features an advanced X-tip cutting edge technology that delivers superior performance compared to standard drill bits. With a total length of 210mm and 8mm diameter, this bit is engineered to withstand the demanding conditions of reinforced concrete drilling, including encounters with steel reinforcement bars. This drill bit incorporates a polished surface finish that reduces friction by up to 50%, allowing operators to drill significantly more holes before requiring replacement. The four-cutter head design is equipped with additional cutting edges specifically engineered to penetrate through reinforcement steel within the concrete matrix. The automatic soldering process of the cutting head ensures maximum heat resistance during continuous drilling operations, preventing head detachment when the bit contacts reinforcement - a common failure point with standard drill bits. The bit is constructed from elastic high-carbon steel (40Cr material grade) with a hardness rating of 40 HRC, providing exceptional resistance to deformation from high impact forces and frequent percussion. The deep flute design with four flutes before the head efficiently evacuates drilled material, while the centralization process prevents lateral deflection. The SDS-Plus holder attachment conforms to international SDS+ size standards, ensuring compatibility with all standard SDS-Plus power tools.

Key Features

X-tip four-cutter head design penetrates reinforcement steel in concrete
Polished surface reduces friction and enables 50% more drilling capacity
Automatic head soldering ensures maximum heat resistance during continuous drilling
Deep flute design efficiently evacuates drilled material and prevents clogging
High-carbon steel construction (40Cr) with 40 HRC hardness resists deformation
Centralization process prevents lateral deflection and maintains hole accuracy
International SDS-Plus standard compatibility with all power tools
Maintains diameter consistency after multiple uses for easy anchor insertion

Technical Specifications

Specification	Value
Product Code	YT-41943
Brand	YATO
Series	GRD Premium
Total Length	210 mm
Diameter	8 mm
Working Length	150 mm
Holder Type	SDS-Plus
Material	40Cr High-Carbon Steel
Surface Treatment	Polished Coating
Hardness	40 HRC
Cutting Edge Material	DD Carbide
Blade Type	X-tip
Spiral Type	Single
Additional Cutting Edges	Yes
Automatic Head Soldering	Yes
Application	Reinforced Concrete (Dzelzbetons)
Stock Status	80 pieces available
Price	10.34 PLN (gross)
Warranty	Manufacturer warranty included
Compliance	International SDS+ standards
