Premium SDS-Plus drill bit for reinforced concrete with 50% more drilling capacity, ground surface, 4-cut fork with additional cutting edges, and automated brazing for maximum heat resistance.

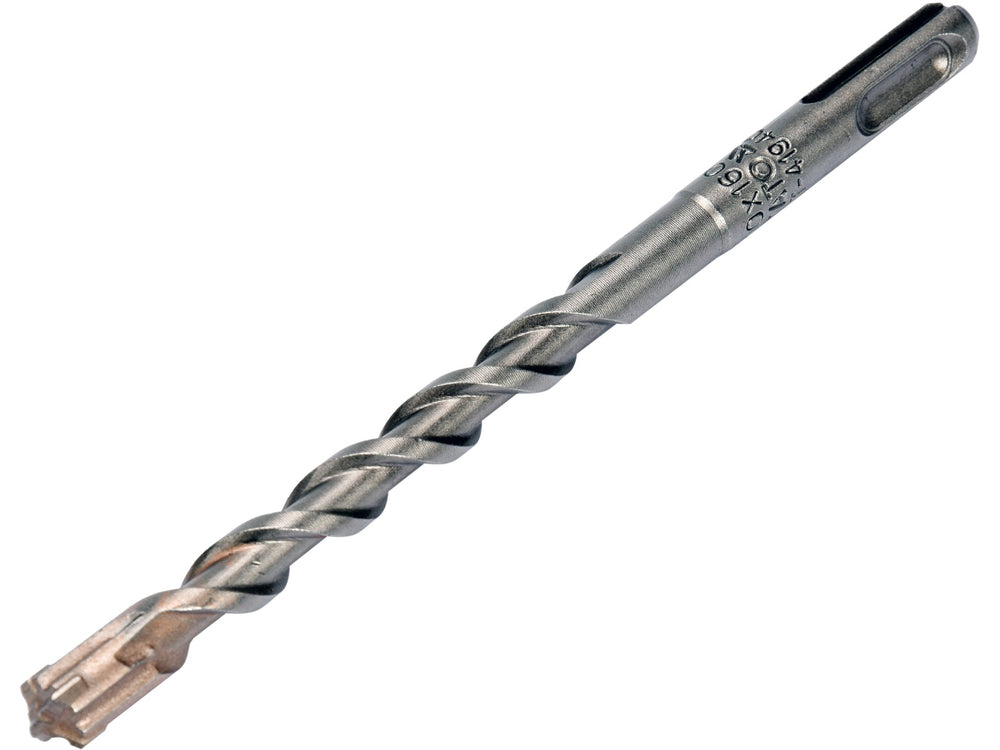

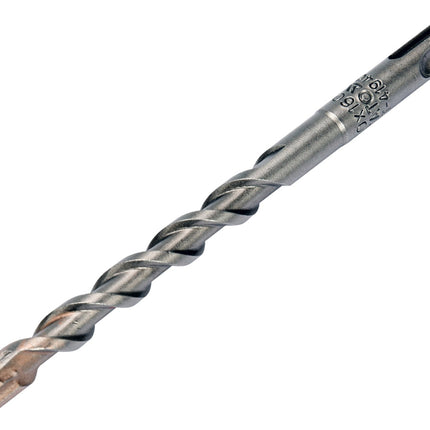

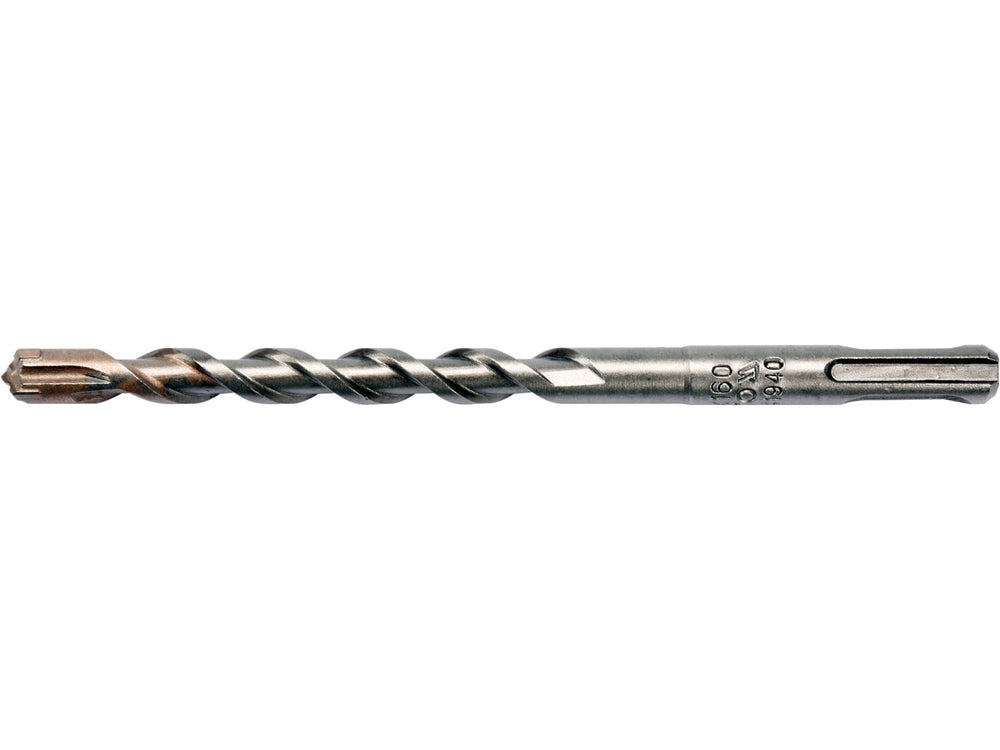

The YATO YT-41940 Premium SDS-Plus drill bit is specifically engineered for reinforced concrete and industrial applications. This high-performance masonry drill features a ground surface that reduces friction coefficient by up to 50%, enabling significantly more holes compared to standard drill bits. The advanced 4-cut fork design is equipped with additional cutting edges that effectively drill through rebar in reinforced concrete, making it ideal for professional construction and renovation projects.
This premium drill bit is constructed from resilient high-carbon steel (40Cr) with a hardness of 40 HRC, providing exceptional durability and resistance to deformation caused by high impact forces and frequent use. The automated fork brazing process guarantees maximum heat resistance, preventing widia deterioration even during serial drilling in reinforced concrete. The drill maintains its diameter even after drilling numerous holes, allowing for easy insertion of dowels, anchors, and fasteners into the created holes.
The bit features a deep spiral design preceded by 4 grooves in the drill head that effectively evacuate excavated material, reducing clogging and improving drilling efficiency. With SDS-Plus toolholder compatibility meeting global dimensional standards, the X-tip point configuration and single spiral design provide optimal performance. Available in multiple lengths (110mm, 160mm, 210mm, 460mm, 600mm, 1000mm) and diameters (5-25mm), this versatile drill bit is essential for professional contractors and serious DIY enthusiasts working with reinforced concrete structures.
Key Features
- Ground surface reduces friction by 50% for superior drilling performance and extended bit life

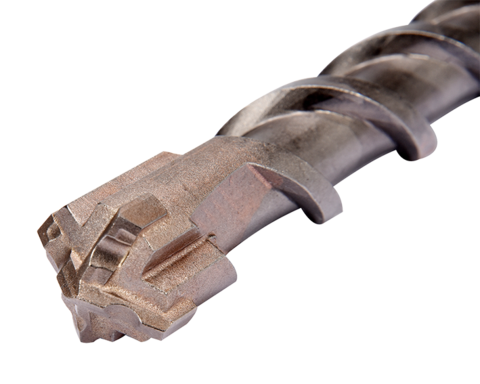

- Advanced 4-cut fork with additional cutting edges effectively drills through rebar in reinforced concrete
- Maintains diameter after multiple holes for easy dowel and anchor insertion
- Automated fork brazing process guarantees maximum heat resistance during serial drilling
- Deep spiral with 4 grooves effectively evacuates excavated material preventing clogging
- Made from resilient high-carbon steel (40Cr) resistant to deformation from impact forces
- SDS-Plus toolholder meeting global dimensional standards for universal compatibility
- X-tip point configuration for optimal penetration and reduced wandering
- Available in 6 lengths and 12 diameter options for comprehensive project coverage
- Professional-grade quality backed by YATO manufacturing excellence
Technical Specifications
| Specification |
Value |
| Brand | YATO |
| Model | YT-41940 |
| Series | GRD Premium |
| Diameter | 10 mm |
| Overall Length | 160 mm |
| Working Part Length | 100 mm |
| Toolholder Type | SDS-Plus |
| Material | 40Cr High-Carbon Steel |
| Surface Finish | Refined/Ground |
| Hardness | 40 HRC |
| Blade Material | DD Carbide |
| Point Configuration | X-tip |
| Spiral Type | Single |
| Additional Cutting Edges | Yes |
| Automatic Brazing | Yes |
| Application | Reinforced Concrete & Industrial |
| Available Lengths | 110mm, 160mm, 210mm, 460mm, 600mm, 1000mm |
| Available Diameters | 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 18mm, 22mm, 25mm |
| Price | 11.60 PLN incl. VAT |
| Warranty | YATO Manufacturer Warranty |
