Professional 1" pneumatic impact wrench with 5800 Nm maximum torque, 7000 RPM, pinless hammer mechanism, and aluminum housing. Perfect for industrial, automotive, and heavy equipment repair applications.

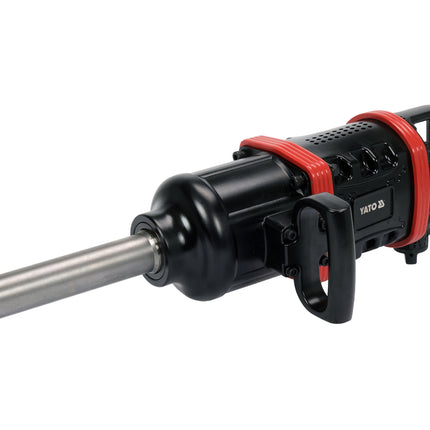

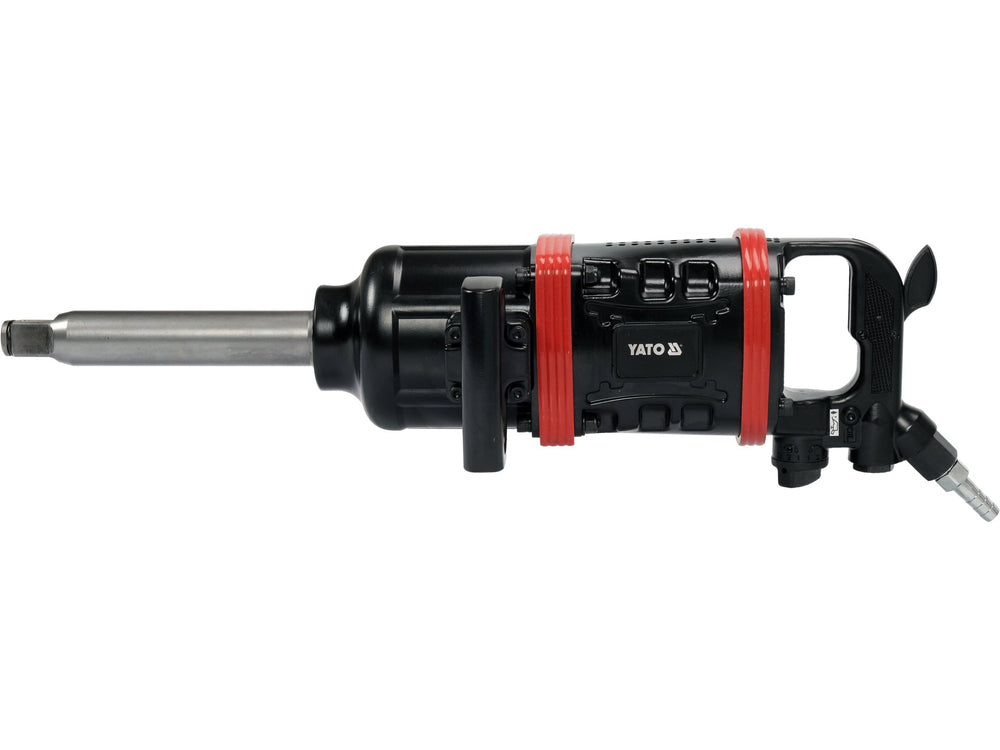

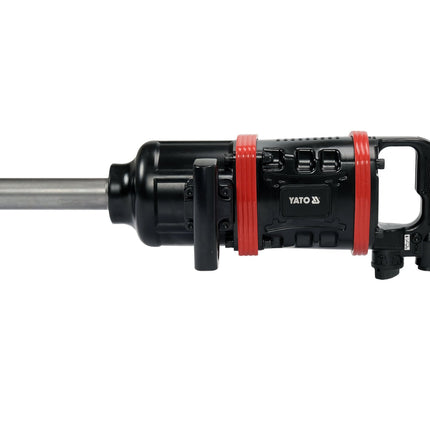

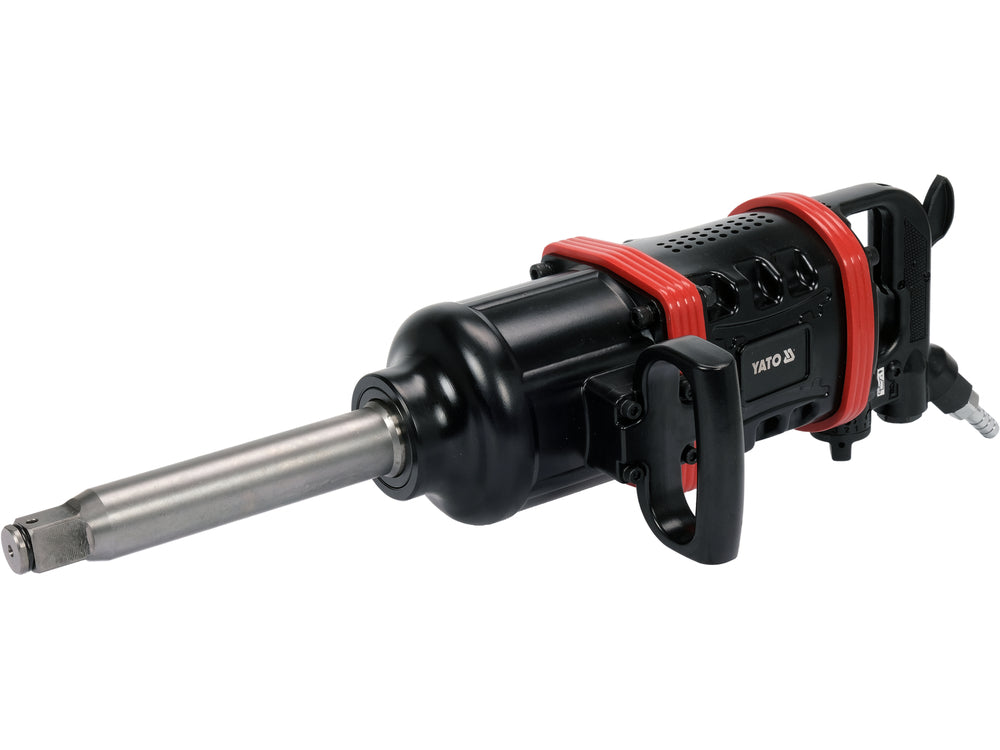

The YATO Pneumatic Impact Wrench YT-09620 is a high-end professional-grade 1" pneumatic impact wrench designed for demanding industrial applications. With an impressive maximum torque of 5800 Nm, this wrench is ideal for use in industrial plants, vulcanization facilities, and both mobile and stationary car repair shops. The tool generates 7000 RPM and features a pinless hammer impact mechanism that ensures efficient and reliable operation. Its solid aluminum housing provides durability and longevity, while the rotation switch allows for directional control. The wrench requires an air flow of 650 l/min at a maximum working pressure of 0.63 MPa and connects via a 1/2" quick coupler.
This pneumatic impact wrench is specifically engineered for heavy-duty applications including truck, bus, tractor, and heavy equipment repairs. The pinless hammer mechanism delivers consistent and powerful impacts, making it perfect for fastening and unfastening large bolts and nuts in demanding environments. The tool's 675 mm length and 21 kg weight provide balanced handling despite its powerful performance. It includes a pneumatic wrench and hose connector as standard equipment, making it ready for immediate use in professional workshops.
The YT-09620 features an acoustic pressure rating of 84.4 ± 3.0 dB(A) and acoustic power of 95.4 ± 3.0 dB(A), with vibrations measured at 2.6 ± 1.5 m/s². This professional tool is manufactured by TOYA S.A., a trusted entity responsible for YATO products in the EU, ensuring quality and reliability in every application.
Key Features
- Extremely high maximum torque of 5800 Nm for heavy-duty fastening applications
- Generates 7000 RPM for efficient and fast operation in industrial environments
- Pinless hammer impact mechanism ensures consistent powerful impacts and reliability
- Solid aluminum housing provides durability and longevity in demanding conditions

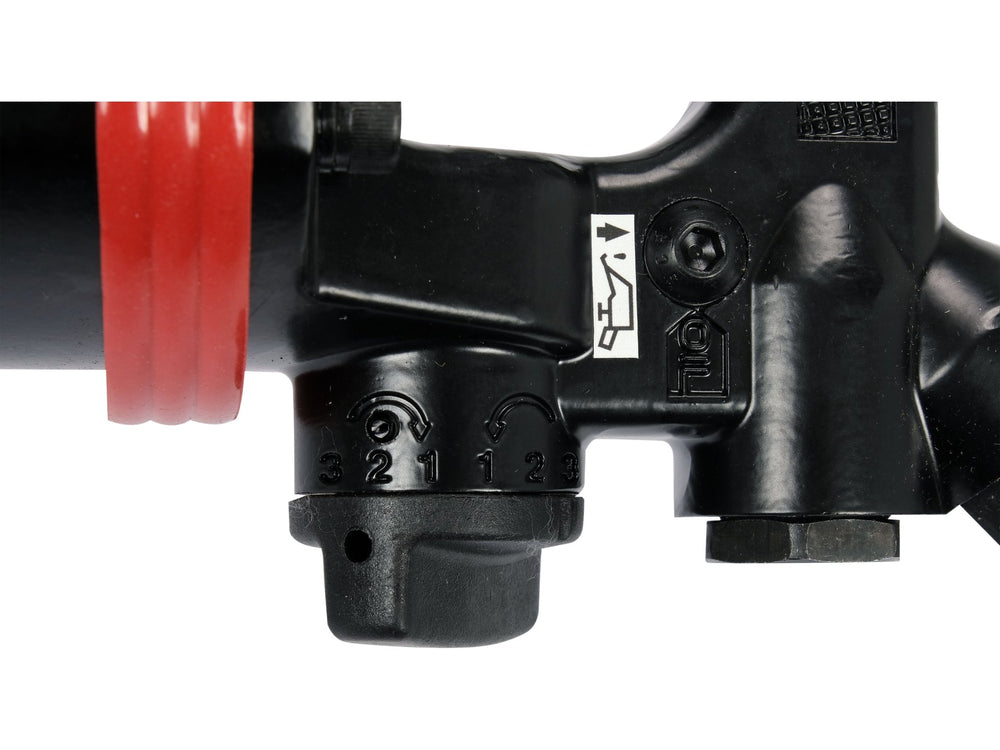

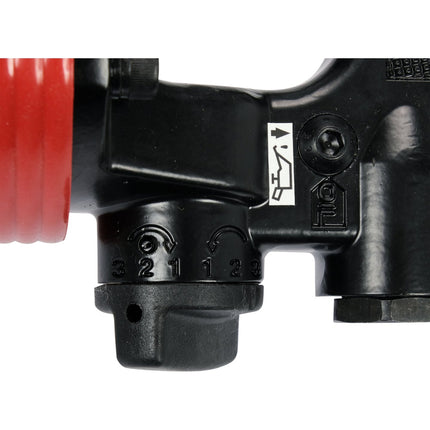

- Rotation switch for directional control and versatile fastening/unfastening operations
- 1/2 inch quick coupler connection for easy integration with pneumatic systems
- Air flow requirement of 650 l/min at 0.63 MPa maximum working pressure
- 675 mm length with 21 kg weight for balanced handling and control
- Acoustic pressure 84.4 dB(A) with manageable noise levels for professional use
- Includes pneumatic wrench and hose connector for immediate operation
Technical Specifications
| Specification |
Value |
| Product SKU | YT-09620 |
| Brand | YATO |
| Series | GRF |
| Holder Size | 1 inch (25.0 mm) |
| Tool Holder Type | Driver |
| Impact Mechanism | Pinless Hammer |
| Maximum Torque | 5800 Nm |
| Rotations | 7000 min⁻¹ |
| Maximum Working Pressure | 0.63 MPa |
| Recommended Working Pressure | 0.63 MPa |
| Required Air Flow | 650 l/min |
| Quick Coupler Size | 1/2 inch (12.7 mm) |
| Air Connection Diameter | 1/2 inch (12.7 mm) PT |
| Air Supply Hose Inside Diameter | 1/2 inch (12.7 mm) |
| Length | 675 mm |
| Casing Material | Aluminum |
| Weight | 21 kg |
| Rotation Switch | Yes |
| Acoustic Pressure | 84.4 ± 3.0 dB(A) |
| Acoustic Power | 95.4 ± 3.0 dB(A) |
| Vibrations | 2.6 ± 1.5 m/s² |
| Set Includes | Pneumatic wrench, hose connector |
| Application | Industry, mobile and stationary car services, tire and truck services |
| Manufacturer | TOYA S.A. |
| Price | 883.14 PLN (incl. VAT) |
Order Yato PNEUMATIC IMPACT WRENCH 1" 5800 NM | YT-09620 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
