Professional 125mm multi-purpose bench vise with 360-degree rotation, 15kN clamping force, hardened steel jaws, and prism pipe holder for locksmith and mechanical workshops.

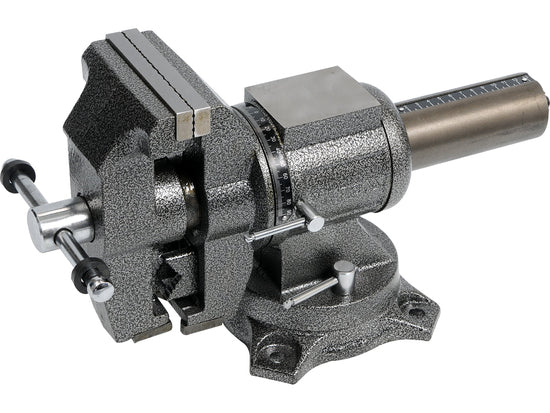

The Yato YT-6506 Multi-Purpose Bench Vice 125mm is a professional-grade vise designed for demanding locksmith workshops, general mechanical services, and automotive repair facilities. Manufactured from high-quality cast iron with specially hardened steel jaws, this versatile vise offers exceptional durability and clamping performance. The vise features a robust 15 kN clamping force, making it suitable for heavy-duty material machining and holding tasks.
This professional vise is engineered with precision and versatility in mind. It features 360-degree horizontal and vertical rotation capabilities, allowing operators to access work from multiple angles. The replaceable jaws measure 125mm in width with a maximum opening capacity of 125mm, accommodating various workpiece sizes. The integrated prism pipe holder enables secure clamping of cylindrical materials, while the anvil provides an additional working surface for precision tasks. The jaw blocks and anvil are manufactured from specially hardened steel with a hardness rating of 45-52 HRC, ensuring long-lasting performance under demanding conditions.
Key features include a covered pull screw mechanism, a scale for deflection measurement relative to the horizontal axis, and additional profile jaws for enhanced versatility. The cast iron body is finished with a hammer-painted surface for durability and corrosion resistance. Weighing 20kg, this bench vise is designed for permanent workshop installation and provides reliable clamping for locksmithing, mechanical work, and automotive applications. The swivel mounting type allows for flexible workbench integration and positioning.
Key Features
- 360-degree horizontal and vertical rotation for flexible workpiece positioning
- Replaceable 125mm wide hardened steel jaws with maximum 125mm opening capacity
- Integrated prism pipe holder for secure clamping of cylindrical materials
- 15 kN powerful clamping force for heavy-duty material machining and holding
- Anvil surface and additional profile jaws for enhanced versatility and functionality
Technical Specifications
| Specification |
Value |
| Brand | Yato |
| Model | YT-6506 |
| Series | GRD |
| Jaw Width | 125mm (5 inches) |
| Jaw Range | 125mm |
| Prism Jaws Range | 15-64mm |
| Clamping Force | 15 kN |
| Material | Cast Iron |
| Jaws Material | Hardened Steel |
| Jaws Hardness | 45-52 HRC |
| Surface Finish | Hammer Painted |
| Mounting Type | Swivel |
| Weight | 20 kg |
| Application | Locksmith, General Mechanical, Automotive Services |
| Features | Replaceable jaws, Prism holder, Anvil, Profile jaws, Deflection scale, Covered pull screw |
| Clamping Type | Rotary |
| Maximum Opening | 125mm |
| Warranty | Manufacturer's warranty as per Yato standards |
