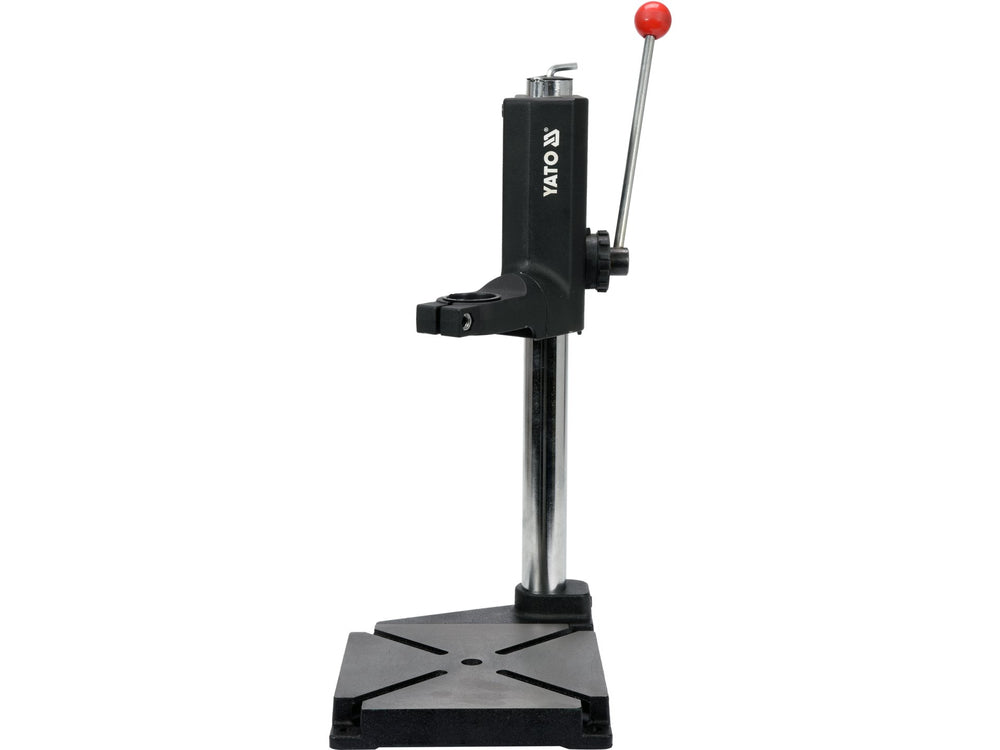

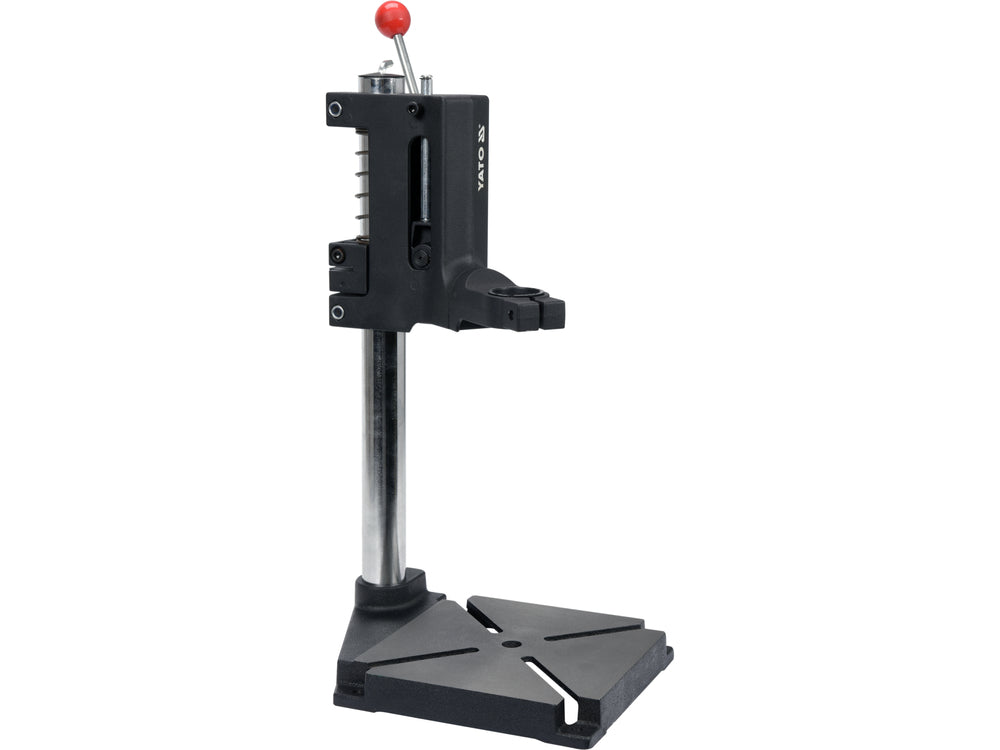

Professional YATO drill stand with 500mm height, 43mm chuck capacity, horizontal rotation function, and stable oiled base for precision drilling operations.
The YATO Drill Stand YT-82970 is an innovative and professional-grade tripod drilling solution designed for precision drilling operations in workshops and industrial settings. This excellent tripod allows you to drill in various positions, such as in engine blocks standing next to the workbench, thanks to its advanced horizontal rotation function. The stand enables you to rotate and drill parts larger than the range of standard column drills allows, making it perfect for handling oversized workpieces and complex drilling tasks.
Features a stable oiled base measuring 210 x 210 mm that provides exceptional stability during operation. The rigid column with thickened walls ensures durability and precision, while the horizontal rotation function allows drilling beyond the outline of the tripod base. With a drill stroke of 60 mm and chuck flange range up to 43 mm, this stand accommodates most standard drilling equipment. The return spring ensures precise plunging of the drill into the material, preventing slippage and ensuring consistent drilling accuracy.
The stand height of 500 mm with a column diameter of 40 mm and column wall thickness of 2 mm provides optimal working height and structural integrity. Manufactured by YATO, a trusted brand in professional tools, this drill stand is part of the GRF series and comes with a user manual for easy setup and operation. Perfect for metalworking, automotive repair, construction, and any application requiring precise, controlled drilling operations.
Key Features

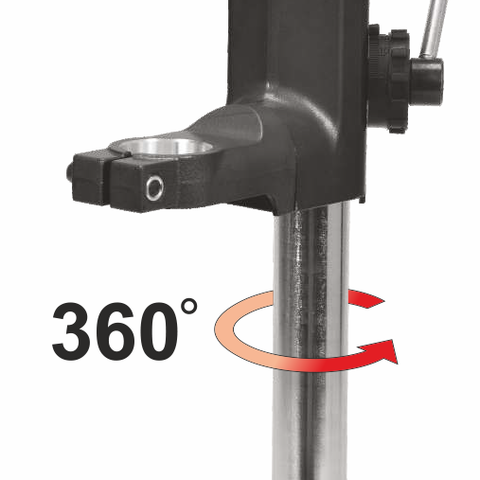

- Horizontal rotation function for drilling beyond standard tripod base outline
- Stable oiled base measuring 210 x 210 mm for exceptional stability
- Rigid column with thickened walls for durability and precision
- 60mm drill stroke with return spring for precise material penetration
- Chuck flange range up to 43mm accommodating most standard drilling equipment
- 500mm stand height providing optimal working position
- 40mm column diameter with 2mm wall thickness for structural integrity
- Professional-grade construction suitable for metalworking and automotive applications
Technical Specifications
| Specification |
Value |
| Brand | YATO |
| Model | YT-82970 |
| Series | GRF |
| Height | 500 mm |
| Base Size | 210 x 210 mm |
| Column Diameter | 40 mm |
| Column Wall Thickness | 2 mm |
| Column Dimensions | 40 x 2 x 500 mm |
| Collar Diameter Range | 38-43 mm |
| Drill Stroke | 60 mm |
| Chuck Flange Range | Up to 43 mm |
| Base Material | Oiled metal |
| Rotation Function | Horizontal rotation |
| Return Spring | Yes, precision plunging |
| Weight | Approximately 8 kg |
| Warranty | Manufacturer warranty included |
| Manufacturer | TOYA S.A., Poland |
Order Yato DRILL STAND 43MM 500MM | YT-82970 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
