Professional YATO diamond blade for precision cutting and grinding of ceramic tiles, porcelain, and stone with 125MM diameter, 10MM segment height, and maximum 12,000 RPM for clean dry cutting without chipping.

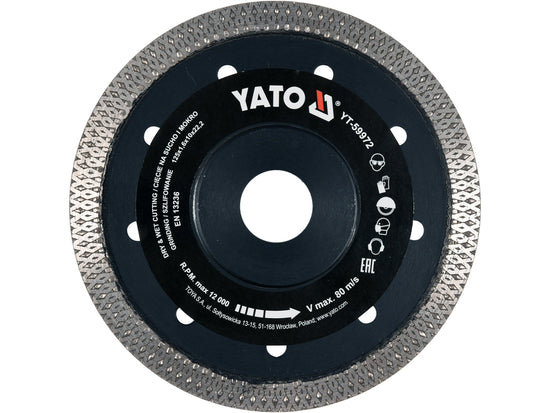

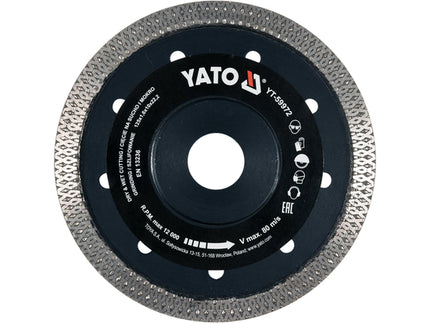

The YATO Diamond Blade for Cutting and Grinding Ceramics 125MM (Model YT-59972) is a professional-grade cutting disc specifically designed for precise and clean dry cutting of ceramic materials. This high-performance diamond blade features a 10mm cutting segment that significantly increases the disc's lifespan while maintaining exceptional cutting accuracy. The blade is engineered with optimally selected cobalt hardness and A-grade industrial diamond granules to deliver superior cutting performance without chipping or edge damage.
This versatile ceramic cutting blade is ideal for cutting ceramic tiles, glazed surfaces, stone tiles, glass, porcelain, ceramics, stoneware, and roof tiles. The reduced cross-sectional area design allows for faster and more precise cutting with minimal load on your grinder, while the centered disc flange ensures no side run-out and delivers cuts without edge bumps. The blade operates at a maximum speed of 12,000 RPM with a linear velocity of 80 m/s, making it suitable for both manual and professional grinding applications.
The diamond blade features advanced segment technology with a chemical composition of Fe 20%, Cu 55%, Sn 7%, Ni 8%, and Every 10%, with 15% diamond coating. It features a 22.2mm mounting hole diameter and 1.6mm cutting segment thickness. This professional tool is perfect for precise grinding of tile edges at 45-degree angles, chamfering of porcelain stoneware tiles, and cutting tile valley edges at angles. The blade is manufactured by YATO, a trusted brand in professional power tool accessories.
Key Features
- High 10mm cutting segment increases disc lifespan and durability
- Reduced cross-sectional area for faster, more precise cutting with minimal chipping
- Optimally selected cobalt hardness with A-grade industrial diamond granules
- Centered disc flange ensures no side run-out and edge bumps for clean cuts
- Precise 45-degree angle grinding capability for tile edge chamfering and valley cutting
Technical Specifications
| Specification |
Value |
| Brand | YATO |
| Model Number | YT-59972 |
| Diameter | 125 mm |
| Maximum Rotations | 12,000 min⁻¹ |
| Maximum Disc Linear Velocity | 80 m/s |
| Mounting Hole Diameter | 22.2 mm |
| Cutting Segment Thickness | 1.6 mm |
| Cutting Segment Height | 10 mm |
| Material | Steel 65Mn |
| Cutting Segment Chemical Composition | Fe 20%, Cu 55%, Sn 7%, Ni 8%, Every 10%, Diamond Coating 15% |
| Work Type | Dry, Wet |
| Application | Ceramic tiles, glaze, stone tiles, glass, porcelain, ceramics, stoneware, roof tiles |
| Series | GRD |
| Stock Availability | 554 pcs available |
| Warranty | Official manufacturer warranty included |
