Professional 30M cable reel with 4 IP44 outlets, thermal protection, and child safety features for construction and outdoor use

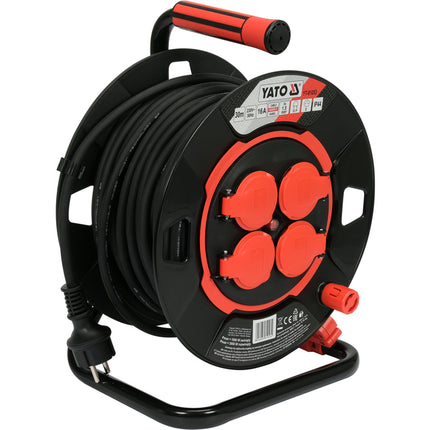

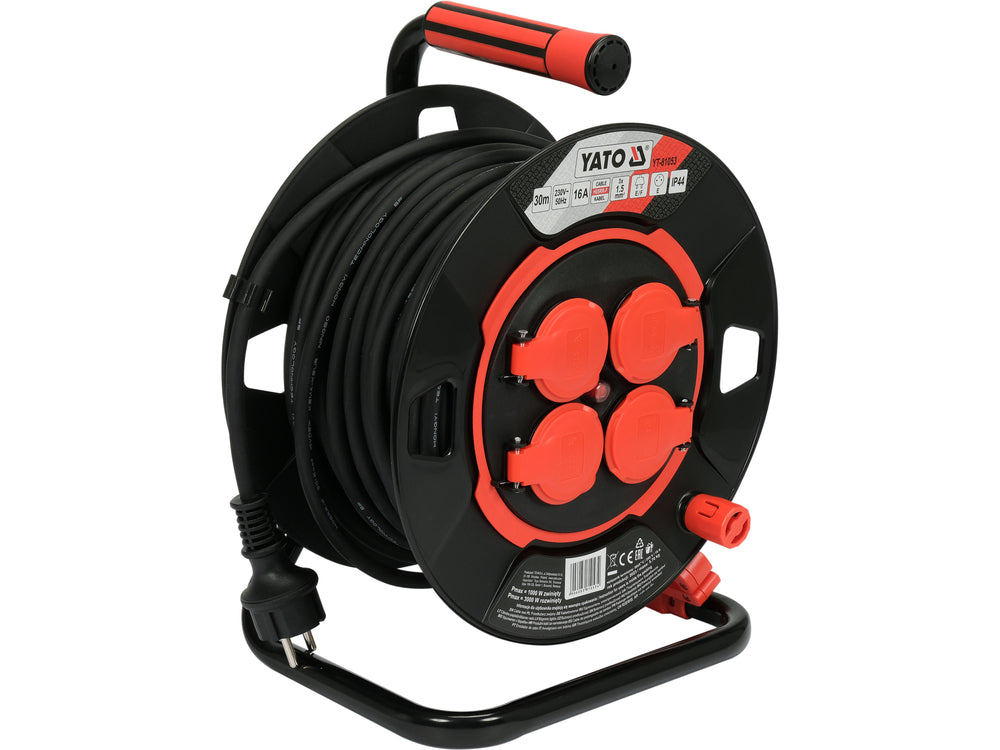

The YATO YT-81053 Cable Reel 30M is a high-quality construction drum extension cord featuring 30 meters of durable copper three-conductor cable with natural rubber insulation. This professional-grade extension cord is designed for both indoor and outdoor use, making it ideal for construction sites, gardens, yards, and factory environments. The cable features a 1.5 mm² cross-section with H05RR-F designation, ensuring excellent flexibility and resistance to mechanical damage, atmospheric factors including sun and cold, and chemical substances such as cooling oils, lubricating oils, gasoline, and alcohols.
The extension cord is equipped with 4 dust and splash-proof outlets featuring IP44 degree of protection, guaranteeing protection against moisture, dust, and sand. The thermal protection system automatically cuts off power supply when cable temperature reaches 56°C ±5°C, providing essential safety during extended use. Child protection flaps and a special mechanism prevent unauthorized access to socket openings, making this extension cord suitable for family and professional environments.
The sturdy metal frame with ergonomic handle allows for easy transportation and storage. The handle located at the edge of the drum accelerates retraction, while a rubber element attached to the cable a few centimeters before the plug enables convenient hooking to the drum edge for simplified storage and transport. Maximum load capacity is 1000W when the cable is completely coiled and 3000W when fully unrolled, providing versatile power distribution for various applications.
Key Features
- 30 meters of durable copper three-conductor cable with natural rubber insulation
- 4 dust and splash-proof outlets with IP44 protection rating
- Thermal protection system cuts power at 56°C ±5°C to prevent overheating
- Child safety protection with plastic flaps and special access mechanism
- Sturdy metal frame with ergonomic handle for easy transportation and storage
- Maximum load capacity: 1000W coiled, 3000W fully unrolled
- H05RR-F cable designation for superior flexibility and chemical resistance
- Suitable for indoor and outdoor use on construction sites, gardens, and factories
- Rubber element for convenient cable hooking and storage
- High resistance to mechanical damage, atmospheric factors, and chemical substances
Technical Specifications
| Specification |
Value |
| Product Model | YT-81053 |
| Brand | YATO |
| Series | GRF |
| Cable Length | 30 meters |
| Extension Cord Type | Drum/Reel |
| Wire Insulation Type | H05RR-F (Natural Rubber) |
| Wire Section Area | 3Gx1.5 mm² |
| Number of Conductors | 3 |
| Number of Outlets | 4 |
| Outlet Type | Dust and Splash-Proof |
| Plug Type | E & F |
| Nest Type | E |
| Voltage Rating | 230 V AC |
| Frequency | 50 Hz |
| Maximum Current | 16 A |
| Maximum Load (Coiled) | 1000 W |
| Maximum Load (Fully Unrolled) | 3000 W |
| Protection Rating | IP44 |
| Thermal Protection | Yes, cuts at 56°C ±5°C |
| Child Protection | Yes, with plastic flaps and special mechanism |
| Earthing/Grounding | Yes |
| Switch | No |
| Reel Material | PVC |
| Frame Material | Metal with Ergonomic Handle |
| Color | Black |
| Stand/Tripod | Yes |
| Weight | 5.7 kg |
| Manufacturer | TOYA S.A. |
| Manufacturer Location | Wrocław, Poland |
Order Yato CABLE REEL 30M 3G1.5MM2 | YT-81053 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
