Professional 3/4" pneumatic impact wrench with 2300 Nm torque, TWIN HAMMER mechanism, 7000 rpm speed, lightweight 3.8 kg construction, ideal for industrial workshops and automotive services.

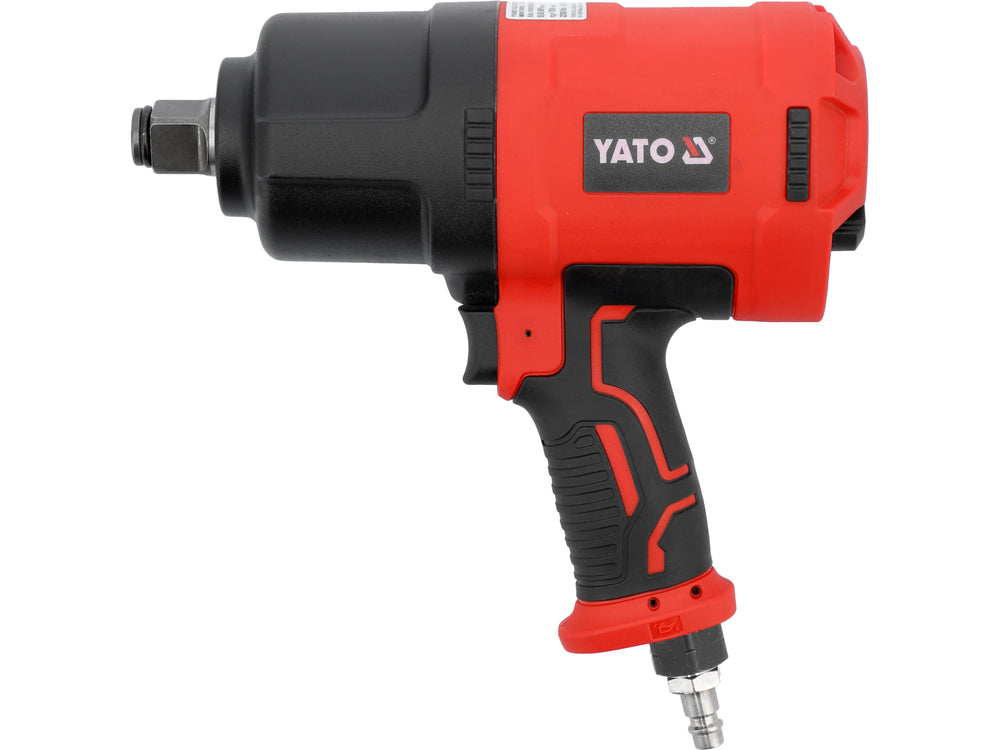

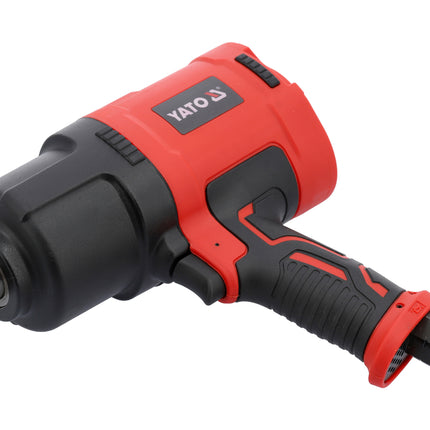

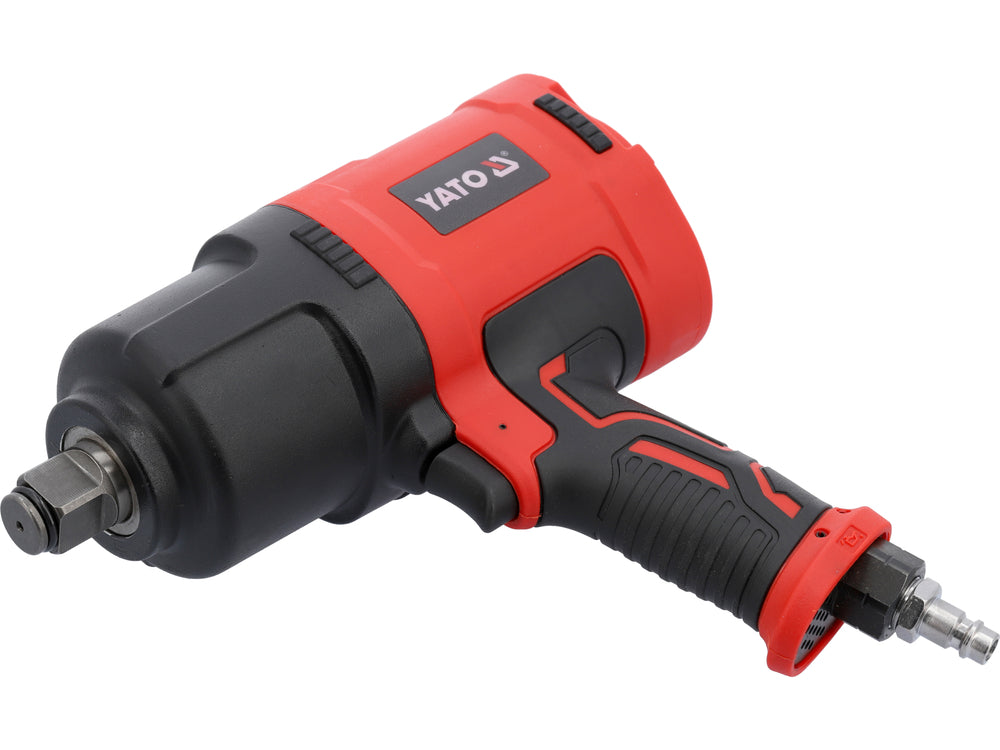

The YATO YT-09575 Air Impact Wrench 3/4" is a professional-grade pneumatic tool designed for intensive industrial applications, mechanical workshops, and automotive services. This powerful impact wrench delivers an impressive maximum torque of 2300 Nm, making it ideal for loosening and tightening heavy-duty fasteners with minimal operator effort. Equipped with the reliable TWIN HAMMER impact mechanism, this tool ensures maximum efficiency and consistent performance across demanding work environments.
Features a high rotational speed of 7000 rpm for rapid work completion and reduced downtime. The wrench is constructed from durable composite and aluminum alloy materials, providing excellent durability while maintaining a lightweight profile of just 3.8 kg for comfortable extended operation. The tool operates at a maximum working pressure of 0.63 MPa with an air flow requirement of 255 l/min, making it compatible with standard industrial air compressor systems. An intuitive rotation direction switch allows for easy operation in both clockwise and counterclockwise directions.
Designed with operator comfort in mind, the YT-09575 features optimized working parameters that minimize vibrations (5.75 ± 1.5 m/s²) and maintain acceptable noise levels (97.9 ± 3.0 dB(A) acoustic pressure). The tool measures 229 mm in length and includes a pneumatic wrench and hose connector in the package. With its 3/4" (19.0 mm) socket size and standard air connections, this impact wrench integrates seamlessly into existing pneumatic tool systems.
Key Features
- Maximum torque of 2300 Nm for heavy-duty fastening applications
- TWIN HAMMER impact mechanism for superior efficiency and reliability
- High rotational speed of 7000 rpm for faster work completion
- Lightweight and durable construction with composite and aluminum alloy materials
- Low weight of 3.8 kg for comfortable extended operation

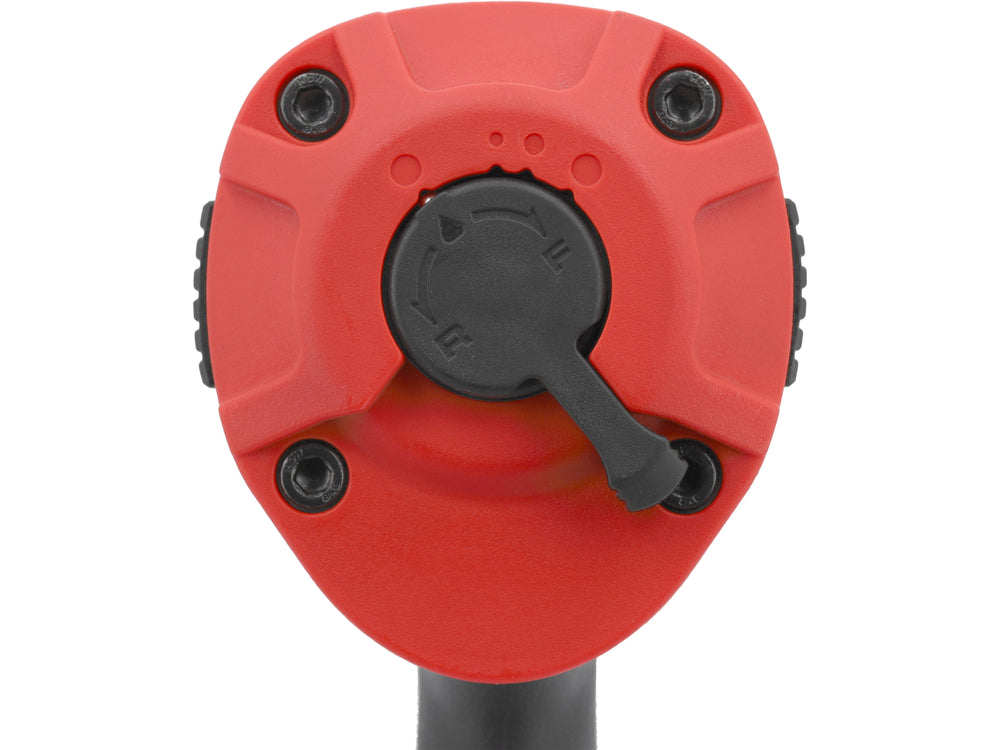

- Intuitive rotation direction switch for bidirectional operation
- Optimized vibration and noise reduction for operator comfort
- Standard 3/4" socket size compatible with most impact sockets
- Professional-grade tool for industry, mechanical workshops, and automotive services
- Includes pneumatic wrench and hose connector in package
Technical Specifications
| Specification |
Value |
| Product Model | YT-09575 |
| Brand | YATO |
| Series | GRF |
| Socket Size | 3/4" (19.0 mm) |
| Maximum Torque | 2300 Nm |
| Rotational Speed | 7000 min⁻¹ |
| Impact Mechanism | TWIN HAMMER |
| Maximum Working Pressure | 0.63 MPa |
| Required Air Flow | 255 l/min |
| Air Supply Hose Diameter | 3/8" (9.5 mm) |
| Air Connection Diameter | Standard PT |
| Quick Coupler Size | Standard |
| Tool Length | 229 mm |
| Casing Material | Composite and Duralumin |
| Weight | 3.8 kg |
| Rotation Direction Switch | Yes |
| Acoustic Pressure Level | 97.9 ± 3.0 dB(A) |
| Acoustic Power Level | 108.9 ± 3.0 dB(A) |
| Vibration Level | 5.75 ± 1.5 m/s² |
| Tool Holder Type | Driver |
| Application | Industry, Mechanical Workshops, Car Services |
| Package Contents | Pneumatic Wrench, Hose Connector |
