Professional 40m construction cable reel with 4 IP44-rated outlets, thermal protection, and child safety features. Rated for 1000W coiled and 3000W uncoiled with natural rubber insulation.

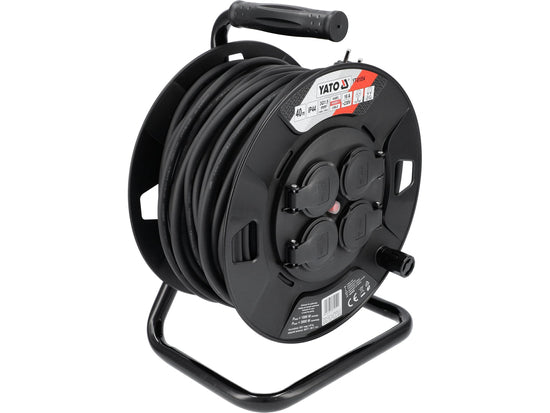

The Yato YT-81054 is a professional-grade 40-meter construction cable reel featuring a robust PVC drum design with four dust and splash-proof outlets rated IP44. This extension cord is engineered for demanding indoor and outdoor applications including construction sites, gardens, yards, and industrial facilities. The cable features natural rubber insulation with three-conductor copper wire (3Gx1.5 mm²) that provides exceptional resistance to mechanical damage, atmospheric conditions, and chemical substances such as oils, gasoline, and alcohols.
The reel is mounted on a sturdy metal frame with an ergonomic handle that facilitates easy reeling and storage. A specialized rubber element attached near the plug allows convenient hooking to the drum edge, significantly improving portability and organization of the rolled extension cord. The design incorporates thermal protection that automatically cuts power at 56°C (±5°C) and child safety features including protective plastic flaps and a special locking mechanism that restricts access to socket openings.
With a maximum load capacity of 1000W when fully coiled and 3000W when completely unrolled, this cable reel operates at 230V AC, 50Hz frequency with a 16A maximum current rating. The H05RR-F designation indicates compliance with harmonized standards for rated voltage of 300/500V with natural rubber insulation and multi-strand flexible conductors. Weighing 6.95kg, this professional tool is ideal for contractors, electricians, and homeowners requiring reliable power distribution in challenging environments.
Key Features
- 40-meter length with 4 dust and splash-proof outlets (IP44 protection)
- Natural rubber insulation resistant to mechanical damage, atmospheric factors, and chemicals
- Thermal protection automatically cuts power at 56°C (±5°C) for safety
- Child protection with plastic flaps and special socket access mechanism
- Sturdy metal frame with ergonomic handle and rubber cable hook for easy storage and transport
- Maximum load: 1000W coiled, 3000W fully unrolled
- H05RR-F certified 3-conductor copper cable (3Gx1.5 mm²)
- Operates at 230V AC, 50Hz with 16A maximum current rating
- Durable PVC reel material suitable for indoor and outdoor use
- Professional grade for construction sites, gardens, and industrial applications
Technical Specifications
| Specification |
Value |
| Brand | Yato |
| Model/SKU | YT-81054 |
| Series | GRF |
| Cable Length | 40 meters |
| Extension Cord Type | Drum |
| Number of Outlets | 4 |
| Outlet Type | Dust and splash-proof (IP44 rated) |
| Plug Type | E & F |
| Voltage | 230V AC |
| Frequency | 50 Hz |
| Maximum Current | 16 A |
| Wire Type | 3-conductor copper cable |
| Wire Section Area | 3Gx1.5 mm² |
| Wire Insulation Type | H05RR-F (Natural rubber insulation and sheath) |
| Reel Material | PVC |
| Color | Black |
| Maximum Load (Coiled) | 1000 W |
| Maximum Load (Fully Unrolled) | 3000 W |
| Protection Grade | IP44 |
| Earthing/Grounding | Yes |
| Thermal Protection | Yes (cuts at 56°C ±5°C) |
| Child Protection | Yes (plastic flaps and locking mechanism) |
| Switch | No |
| Stand/Tripod | Yes (metal frame with handle) |
| Weight | 6.95 kg |
| Nest Type | E |
| Manufacturer | TOYA S.A., Wrocław, Poland |
