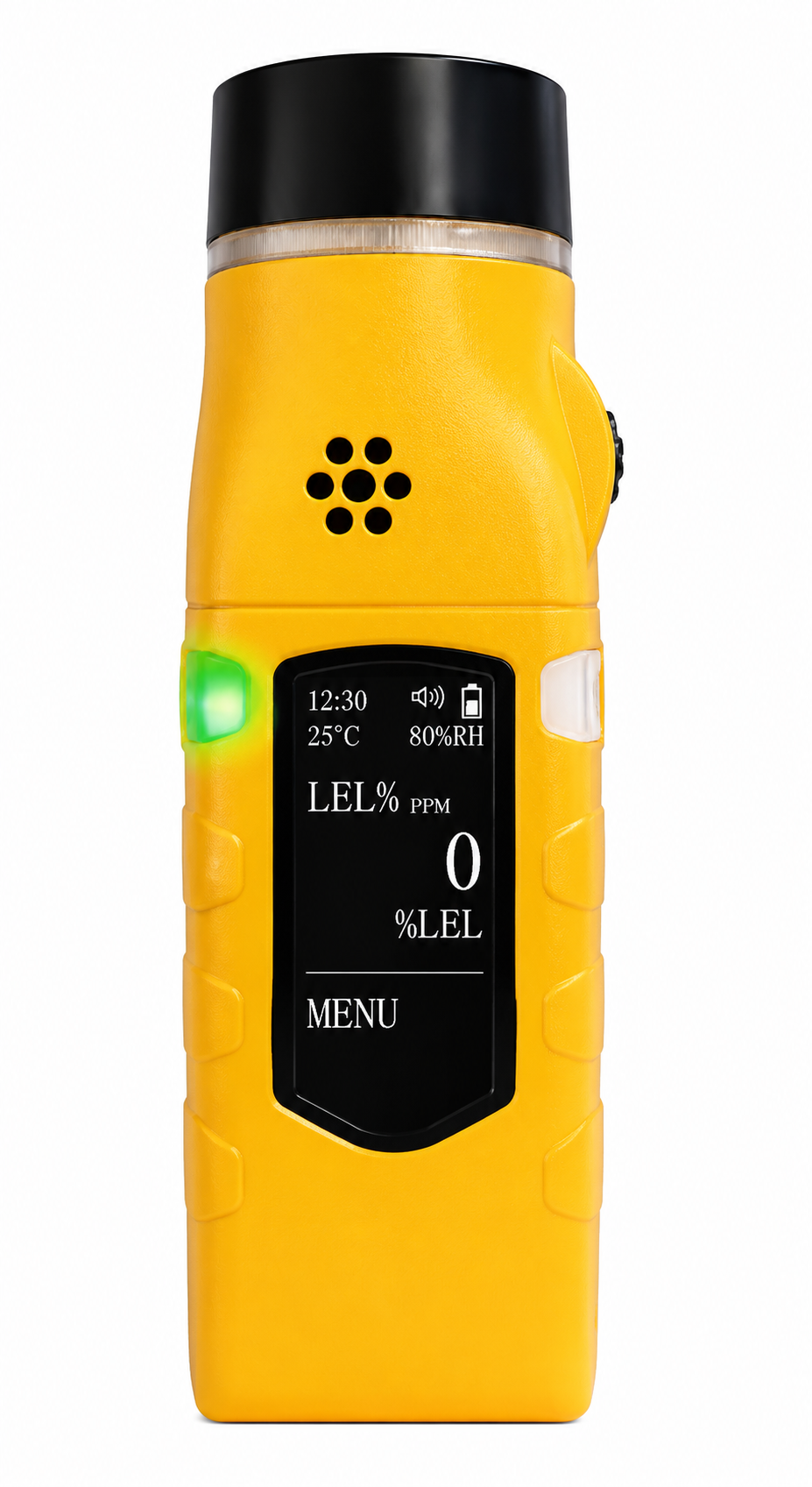

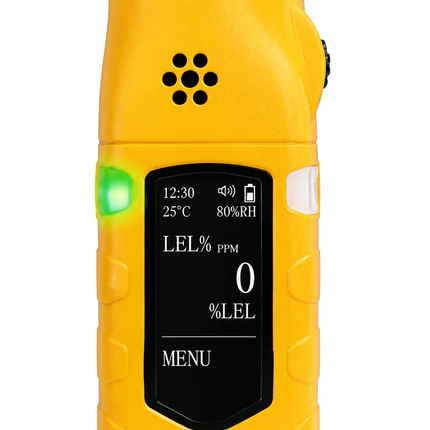

The Yaoan YA-P100 Portable Single Gas Detector is a compact personal gas monitor designed to detect one combustible, toxic or oxygen gas, depending on the installed sensor. Its lightweight handheld design makes it suitable for workers who need continuous gas monitoring in industrial and potentially hazardous environments.
The detector features a 1.3 inch OLED LCD display that shows the gas type, concentration, measurement unit, operating status, time and battery level in real time. It also uses a triple alarm system with sound, light and vibration, helping ensure the user receives a clear warning when hazardous gas levels are detected.
For easier status recognition, green, yellow and red indicators correspond to normal, fault and alarm conditions. The YA-P100 also provides fault, high, low and low-battery alarms, together with zero adjustment and calibration functions.
A 2900 mAh rechargeable battery supports extended portable use. Yaoan's current product listing specifies at least 12 hours of operation, while the supplied product sheet states up to 24 hours continuous use and up to 45 days standby; actual battery performance can vary by configuration and operating conditions.
The detector can store up to 60,000 records, including alarm and operation records. A Type-C connection allows stored data to be exported to a computer for review and documentation.
Features
- Portable Single Gas Monitoring: Detects one combustible, toxic or oxygen gas according to the installed sensor.
- Compact and Lightweight: Small handheld design weighing approximately 120 g.
- 1.3 Inch OLED LCD Display: Clearly displays gas type, concentration, status, time and battery level.
- Triple Alarm: Audible, visual and vibration alerts provide clear warning in hazardous conditions.
- Three Colour Status Indicators: Green, yellow and red indicators identify normal, fault and alarm states.
- Multiple Alarm Modes: Supports fault, high, low and low-battery alarms.
- High Capacity Battery: Equipped with a 2900 mAh rechargeable lithium battery.
- Large Data Storage: Stores up to 60,000 alarm, switch and operation records.
- Type C Data Export: Allows recorded data to be transferred to a computer.
- Diffusion Detection: Continuously samples the surrounding atmosphere without requiring a pump.
- Industrial Applications: Suitable for chemical, petroleum, metallurgy, LPG, painting, gas transmission and other areas with potential gas leakage.
Specifications
| Specification |
Details |
| Brand |
Yaoan |
| Model |
YA-P100 |
| Product Type |
Portable Single Gas Detector |
| Number of Gases |
One Gas |
| Detection Object |
Combustible Gas Toxic Gas or Oxygen |
| Display |
1.3 Inch OLED LCD |
| Detection Method |
Diffusion |
| Combustible Gas Range |
0 to 100 percent LEL |
| Toxic Gas Range |
Up to 1000 μmol/mol depending on sensor |
| Accuracy |
±5 percent FS depending on sensor |
| Operating Temperature |
-20°C to 50°C |
| Humidity Range |
≤95 percent RH |
| Sensor Life |
Up to 36 months depending on sensor |
| Battery |
2900 mAh 3.7 V Rechargeable Lithium Battery |
| Working Time |
At least 12 hours according to current Yaoan listing |
| Standby Time |
Up to 45 days according to supplied product sheet |
| Data Storage |
Up to 60,000 Records |
| Data Interface |
Type C |
| Alarm Type |
Sound Light Vibration |
| Weight |
120 g |
| Dimensions |
126 x 41.8 x 36 mm |
| Ingress Protection |
IP33 |
| Combustible Sensor Type |
Catalytic Combustion |
| Toxic Sensor Type |
Electrochemical |
| Response Time |
Up to 60 seconds depending on sensor |
| Explosion Proof Mark Combustible |
Ex d ib IIC T4 Gb |
| Explosion Proof Mark Toxic |
Ex ib IIC T4 Gb |
