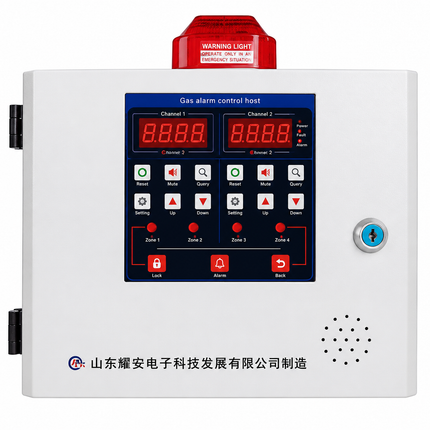

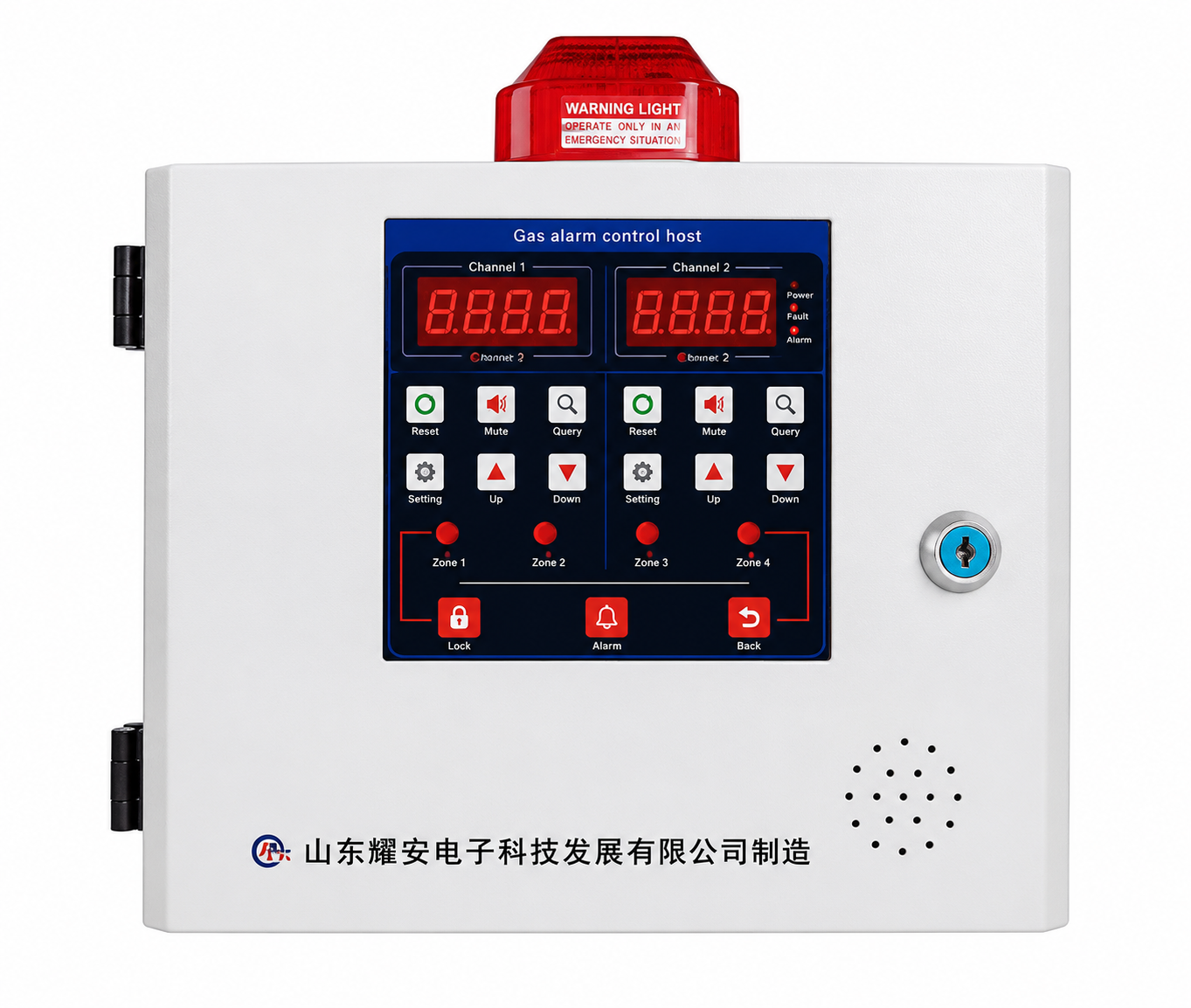

The Yaoan YA-K112S Two Channel Gas Detection Controller is designed for industrial gas detection and early-warning systems that require centralized monitoring of up to two gas detectors. It is compatible with Yaoan YA-D series detectors and can be used with combustible and toxic gas monitoring applications.
Each channel is displayed separately on the controller's Nixie digital display, allowing operators to monitor connected detector readings clearly. When gas concentration exceeds a preset threshold, the controller provides audible and LED visual alarms, while an optional voice alarm can provide an additional warning method.
The YA-K112S uses three-wire 4-20 mA detector inputs and can be supplied with optional 4-20 mA or RS485 outputs for integration with PLC, DCS, RTU and other industrial control systems. It also provides four relay groups with normally open and normally closed contacts, enabling control of equipment such as exhaust fans, solenoid valves and other external safety devices.
The controller is wall mounted and designed for simple operation using physical buttons. According to Yaoan's product information, it operates from 220 VAC power, supports adjustable alarm settings and delivers an alarm level of at least 80 dB.
The supplied product sheet also highlights optional backup-battery configurations and expansion possibilities including LoRa, 4G, Yaoan Cloud and other connectivity features. Availability of these options should be confirmed for the exact configuration supplied.
Features
- Two Channel Monitoring: Supports connection of up to two gas detectors with separate channel displays.
- Compatible with YA-D Series: Designed for Yaoan YA-D combustible and toxic gas detectors.
- Clear Digital Display: Nixie tube display provides easy reading of gas concentration and alarm status.
- Audible and Visual Alarm: Standard sound and LED light warning with optional voice alarm.
- Adjustable Alarm Settings: Alarm thresholds can be configured according to application requirements.
- 4-20 mA Input: Uses three-wire 4-20 mA detector signals.
- Optional RS485 Output: Supports integration with industrial monitoring systems when configured.
- Four Relay Outputs: Normally open and normally closed relay contacts can control connected equipment.
- External Equipment Control: Suitable for exhaust fans, solenoid valves and other safety devices.
- Wall Mounted Design: Compact fixed installation for industrial control rooms and facilities.
- Short Circuit Protection: Supplied product information highlights circuit protection and fault prompts.
- Optional Connectivity: Product literature lists LoRa, 4G, Yaoan Cloud and backup battery options depending on configuration.
Specifications
| Specification |
Details |
| Brand |
Yaoan |
| Model |
YA-K112S |
| Product Type |
Two Channel Gas Detection Controller |
| Channel Capacity |
2 Detectors |
| Compatible Detectors |
Yaoan YA-D Series |
| Applicable Detection |
Combustible and Toxic Gas |
| Input Signal |
Three Wire 4-20 mA |
| Standard Output |
None |
| Optional Output |
4-20 mA RS485 |
| Display |
Nixie Tube Digital Display |
| Power Supply |
220 VAC 50 to 60 Hz |
| Response Time |
<15 Seconds |
| Alarm Mode |
Sound and LED Light |
| Optional Alarm |
Voice Alarm |
| Alarm Volume |
≥80 dB |
| Relay Outputs |
4 Groups NO and NC Contacts |
| Relay Contact Capacity |
250 VAC 7 A |
| Operating Temperature |
-10°C to 40°C |
| Relative Humidity |
10% to 95% RH Non Condensing |
| Installation |
Wall Mounted |
| Weight |
2.5 kg |
| Dimensions |
230 × 280 × 80.27 mm |
| Cable |
RVVP 3 × 1.5 mm² |
| Optional SMS Module |
YA-W100 |
| Compatible Systems |
PLC DCS RTU Fire Control Systems |
