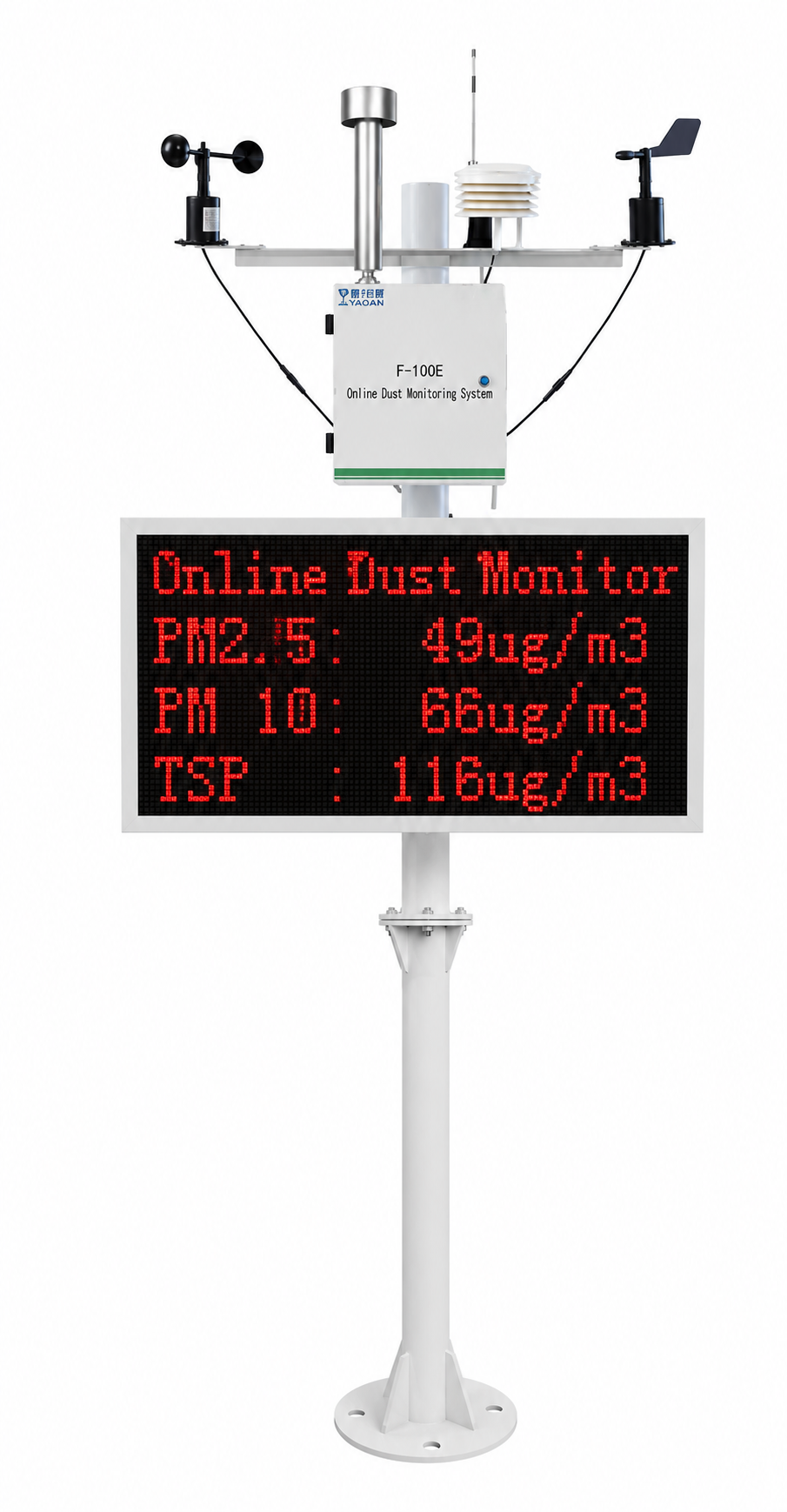

The Yaoan HT-DS200 Dust Monitoring System is a fixed outdoor environmental monitoring solution designed for continuous real-time measurement of industrial dust and related atmospheric parameters. The system uses pump-suction sampling and can monitor PM2.5, PM10 and TSP, while optional sensors expand monitoring to noise, temperature, humidity, wind speed, wind direction, wind force and atmospheric pressure. Yaoan describes the HT-DS200 as a pump-type industrial dust monitoring system for real-time air-quality monitoring.
The pump-suction system actively draws air into the sensor module, helping provide stable sample flow and consistent particulate readings. Yaoan specifies a sampling flow of 1 L/min with accuracy within ±2%. A recent Yaoan-related technical article also states that the HT-DS200 combines pump sampling with a self-developed laser sensor and includes measures intended to improve monitoring during rainy or foggy weather.

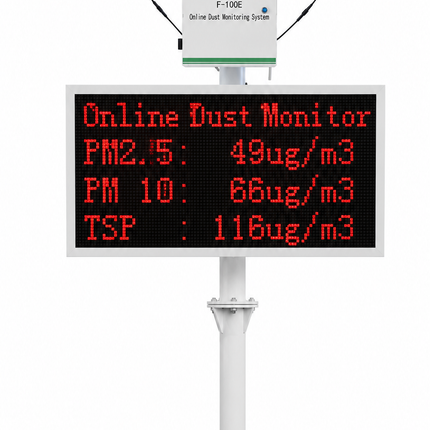

A large outdoor LED dot-matrix display provides clear real-time visibility of PM2.5, PM10, TSP and other configured readings. The supplied product sheet lists a 540 × 1020 mm display enclosure, while Yaoan specifies a complete system size of 2897 × 1020 × 150 mm.
For remote monitoring and data management, the HT-DS200 supports 4G cloud transmission, Wi-Fi configuration, Modbus communication and USB data export. Data can be uploaded to a cloud platform through 4G, while a mobile application can connect over Wi-Fi to read or modify system parameters.
The controller also provides two relay outputs, allowing external equipment such as fog cannons or other dust-control devices to be linked with the monitoring system. This makes the HT-DS200 suitable not only for measurement but also for automated dust-control applications at construction sites, industrial facilities and outdoor environmental monitoring locations.
Features
- Multi Parameter Monitoring: Supports PM2.5, PM10 and TSP, with optional noise, temperature, humidity, wind speed, wind direction, wind force and atmospheric pressure.
- Pump Suction Sampling: Active air sampling supports stable real-time particulate monitoring.
- Laser Dust Sensor: Designed for continuous PM measurement with rapid response.
- 24 Hour Monitoring: Suitable for continuous unattended outdoor operation.
- Large LED Display: Clearly displays dust values and other configured parameters.
- 4G Cloud Connectivity: Uploads monitoring data to a remote cloud platform.
- Wi Fi Configuration: Mobile application can connect locally for parameter setup.
- Modbus Communication: Supports integration with external industrial monitoring systems.
- USB Data Export: Allows monitoring records to be exported for analysis.
- Relay Control: Two relay outputs can be used to control external dust-suppression equipment.
- Customisable System: Optional alarm light, solar power, video monitoring and environmental sensors can be added depending on configuration.
- Outdoor Pole Installation: Designed as a complete fixed monitoring station for field deployment.
Specifications
| Specification |
Details |
| Brand |
Yaoan |
| Model |
HT-DS200 |
| Product Type |
Pump Suction Dust Monitoring System |
| Main Monitoring Parameters |
PM2.5 PM10 TSP |
| Optional Parameters |
Noise Temperature Humidity Wind Speed Wind Direction Wind Force Atmospheric Pressure |
| Sensor Type |
Pump Suction Laser Dust Sensor |
| Sampling Flow |
1 L/min |
| Sampling Flow Accuracy |
≤ ±2% |
| Power Supply |
AC 220 V |
| Communication |
4G Wi Fi Modbus RS485 |
| Data Export |
USB |
| Relay Output |
2 Relays |
| Relay Rating |
10 A 250 V |
| Display |
Outdoor LED Dot Matrix Display |
| Display Box Size |
540 × 1020 mm according to supplied product data |
| Working Environment |
-30°C to 70°C |
| Humidity |
0 to 95% RH Non Condensing |
| System Dimensions |
2897 × 1020 × 150 mm |
| Weight |
Approx. 39 kg |
| Equipment Stand |
Two Pillars |
| Lower Column Height |
1500 mm |
| Upper Column Height |
1325 mm |
| Cloud Monitoring |
Supported via 4G |
| Mobile Configuration |
Supported via Wi Fi |
| Installation |
Outdoor Fixed Pole Installation |
