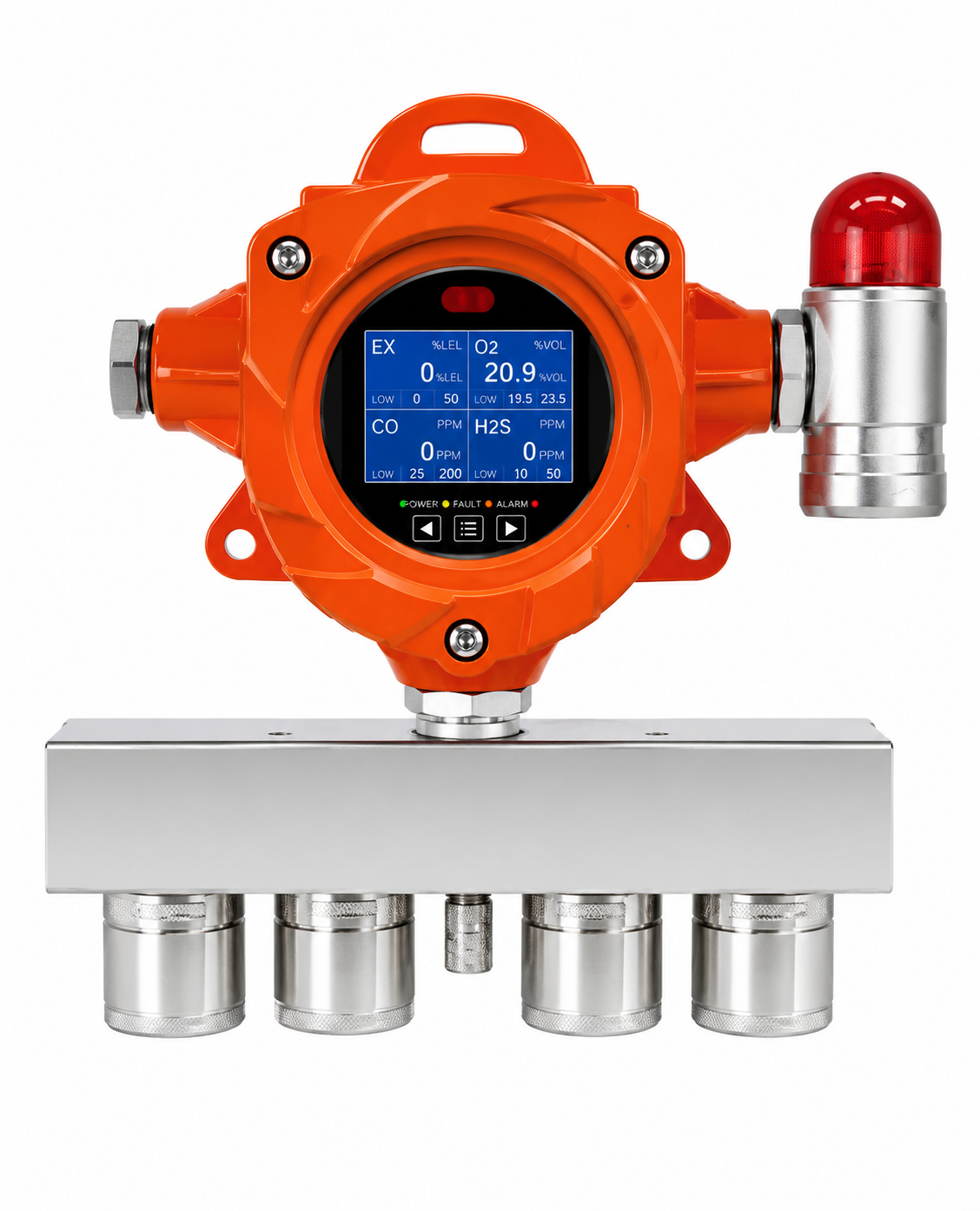

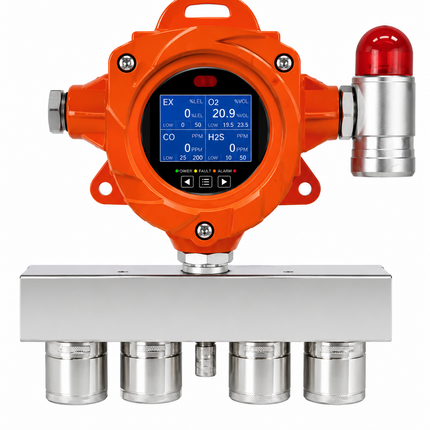

The Yaoan GTQ-YA-C100FT Fixed Six in One Gas Detector is designed for continuous industrial monitoring of multiple gases together with temperature and humidity. The configuration shown supports one combustible gas, three toxic gases, temperature and humidity, providing six monitoring functions in one fixed detector.
Its color LCD display presents gas concentration and operating information clearly, while the high-performance ARM microprocessor provides stable processing and responsive operation. Yaoan also lists fault, high and low alarm functions, infrared remote-control input, sound and light output support, and zero, calibration and testing functions.
The detector supports flexible communication options including RS485, LoRa wireless and Two Bus PowerBus, allowing integration with industrial monitoring and control systems. Yaoan states that the unit uses LoRa communication and supports relay output for automatic equipment control.
Designed for harsh industrial environments, the GTQ-YA-C100FT features IP67 protection and an explosion-protected housing. It is suitable for applications such as factories, chemical and petrochemical facilities, oil and gas sites, wastewater treatment plants, warehouses and other areas requiring continuous multi-gas monitoring.
Features
- Six in One Monitoring: Monitors one combustible gas, three toxic gases, temperature and humidity in a single unit.
- Customisable Gas Configuration: Sensor combinations can be configured according to application requirements.
- Color LCD Display: Large and clear display for gas concentration and detector status.
- ARM Microprocessor: High-performance processing for stable and responsive operation.
- LoRa Wireless Communication: Supports long-range wireless communication for industrial monitoring.
- Infrared Remote Control: Allows configuration without opening the detector enclosure.
- Alarm Functions: Supports fault alarm plus high and low gas alarms.
- Sound and Light Output: Supports external audible and visual alarm functions.
- Data Storage: The supplied product information indicates storage of up to 100 records for later review.
- Smart Integration: Supports RS485, LoRa and Two Bus PowerBus communication.
- IP67 Protection: Rugged enclosure helps protect the detector against dust and water ingress.
- Flexible Installation: Suitable for wall-mounted or tube-mounted installation.
Specifications
| Specification |
Details |
| Brand |
Yaoan |
| Model |
GTQ-YA-C100FT |
| Product Type |
Fixed Six in One Gas Detector |
| Monitoring Configuration |
1 Combustible Gas 3 Toxic Gases Temperature Humidity |
| Detection Object |
Combustible Gas Toxic Gas Oxygen Temperature Humidity |
| Detection Method |
Diffusion |
| Display |
Color LCD |
| Processor |
ARM Microprocessor |
| Working Voltage |
DC 24 V |
| Combustible Gas Temperature Range |
-40°C to 70°C |
| Toxic Gas Temperature Range |
-10°C to 60°C |
| Humidity Range |
15% to 95% RH |
| Response Time Combustible Gas |
≤30 seconds |
| Response Time Toxic Gas |
≤60 seconds |
| Sensor Type Combustible |
Catalytic Combustion |
| Sensor Type Toxic |
Electrochemical |
| Accuracy |
±5% FS depending on sensor |
| Communication |
RS485 LoRa Wireless Two Bus PowerBus |
| Protection Rating |
IP67 |
| Weight |
Approx. 2.5 kg |
| Dimensions |
207 x 214 x 84 mm |
| Installation |
Wall Mounted or Tube Mounted |
| Alarm Functions |
Fault High Alarm Low Alarm |
| Remote Operation |
Infrared Remote Control |
| Explosion Proof Mark |
Ex db IIC T6 Gb and Ex tb IIIC T80°C Db as shown in supplied product data |
| Certifications |
ATEX CE FCC ROHS SIL |
