Description

The Yale 722 Pro Series is a high-performance, surface-mounted door closer designed for heavy-duty use in residential and commercial settings. Its durable rack-and-pinion mechanism ensures smooth, consistent operation across the entire swing range. Offering selectable power sizes EN2–4 and adjustable closing/latching speeds, it fulfills diverse door requirements up to 1100 mm wide and 80 kg in weight. Crafted from die-cast aluminium with a corrosion-resistant finish, it's rated for fire doors (timber: up to 120 min; steel: up to 240 min) and effective in extreme temperatures (−42 ℃ to 55 ℃). Tested to 500,000 cycles and compliant with EN 1154, this closer provides reliable, long-term performance with easy installation and selectable arm options.

Features:

Rack-and-pinion mechanism for smooth operation
Selectable power sizes: EN 2, 3, 4
Adjustable closing & latching speed valves
Non-handed design, includes standard arm & parallel-arm bracket
Optional hold-open or back-check arms
Fire-rated (timber 120 min, steel 240 min)
Suitable for environmental extremes (−42 ℃ to 55 ℃)
UL and EN 1154 certified
Durable finish with corrosion resistance (EN 1670 Grade 3)
500,000-cycle durability testing

Specifications:

Specification	Details
Mechanism	Rack-and-pinion
Power Size	EN 2–4 selectable
Max Door Width	1100 mm
Max Door Weight	80 kg
Closing Speed	Adjustable via valve
Latching Speed	Adjustable via valve
Fire Rating	Timber: 120 min; Steel: 240 min
Operating Temperature	−42 ℃ to 55 ℃
Durability Test	500,000 cycles
Standards	EN 1154, UL-listed
Body Material	Die-cast aluminium
Finish & Color	Corrosion-resistant silver, white, brown, black, gold
Handing	Non-handed (fits both sides)
Mounting Type	Surface-mounted (standard or parallel arm)

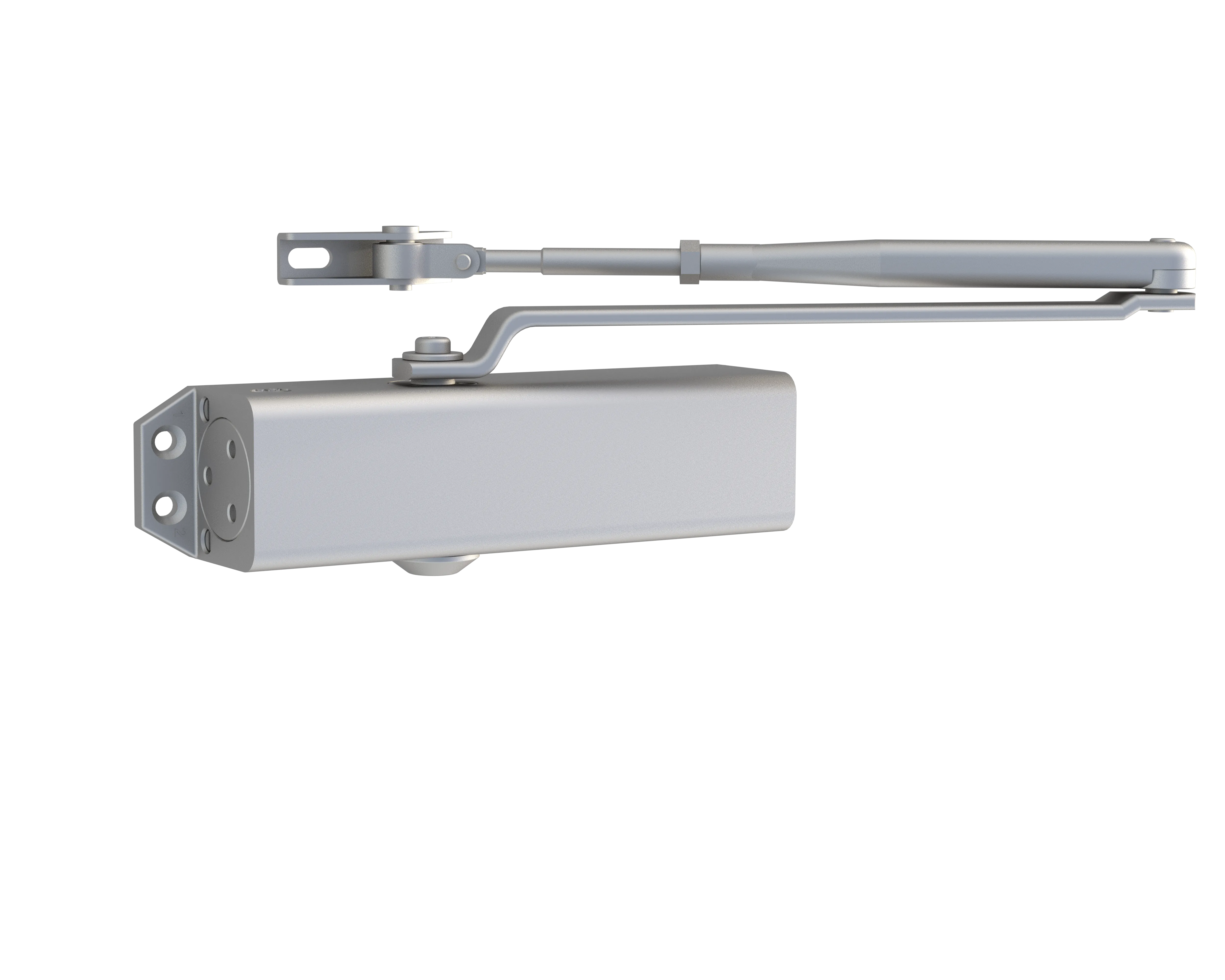

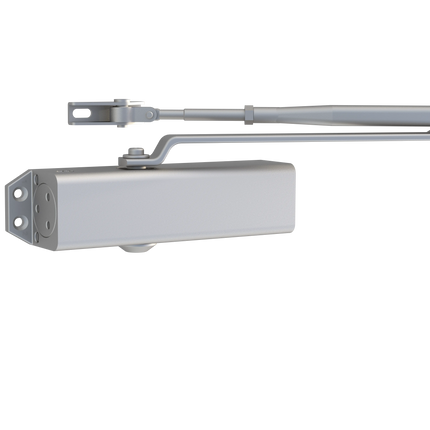

Yale 722 Pro Series Surface Mounted Door Closer

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

SKU: 722 Pro

58,000 IQD

Description

The Yale 722 Pro Series is a high-performance, surface-mounted door closer designed for heavy-duty use in residential and commercial settings. Its durable rack-and-pinion mechanism ensures smooth, consistent operation across the entire swing range. Offering selectable power sizes EN2–4 and adjustable closing/latching speeds, it fulfills diverse door requirements up to 1100 mm wide and 80 kg in weight. Crafted from die-cast aluminium with a corrosion-resistant finish, it's rated for fire doors (timber: up to 120 min; steel: up to 240 min) and effective in extreme temperatures (−42 ℃ to 55 ℃). Tested to 500,000 cycles and compliant with EN 1154, this closer provides reliable, long-term performance with easy installation and selectable arm options.

Features:

Rack-and-pinion mechanism for smooth operation
Selectable power sizes: EN 2, 3, 4
Adjustable closing & latching speed valves
Non-handed design, includes standard arm & parallel-arm bracket
Optional hold-open or back-check arms
Fire-rated (timber 120 min, steel 240 min)
Suitable for environmental extremes (−42 ℃ to 55 ℃)
UL and EN 1154 certified
Durable finish with corrosion resistance (EN 1670 Grade 3)
500,000-cycle durability testing

Specifications:

Specification	Details
Mechanism	Rack-and-pinion
Power Size	EN 2–4 selectable
Max Door Width	1100 mm
Max Door Weight	80 kg
Closing Speed	Adjustable via valve
Latching Speed	Adjustable via valve
Fire Rating	Timber: 120 min; Steel: 240 min
Operating Temperature	−42 ℃ to 55 ℃
Durability Test	500,000 cycles
Standards	EN 1154, UL-listed
Body Material	Die-cast aluminium
Finish & Color	Corrosion-resistant silver, white, brown, black, gold
Handing	Non-handed (fits both sides)
Mounting Type	Surface-mounted (standard or parallel arm)
