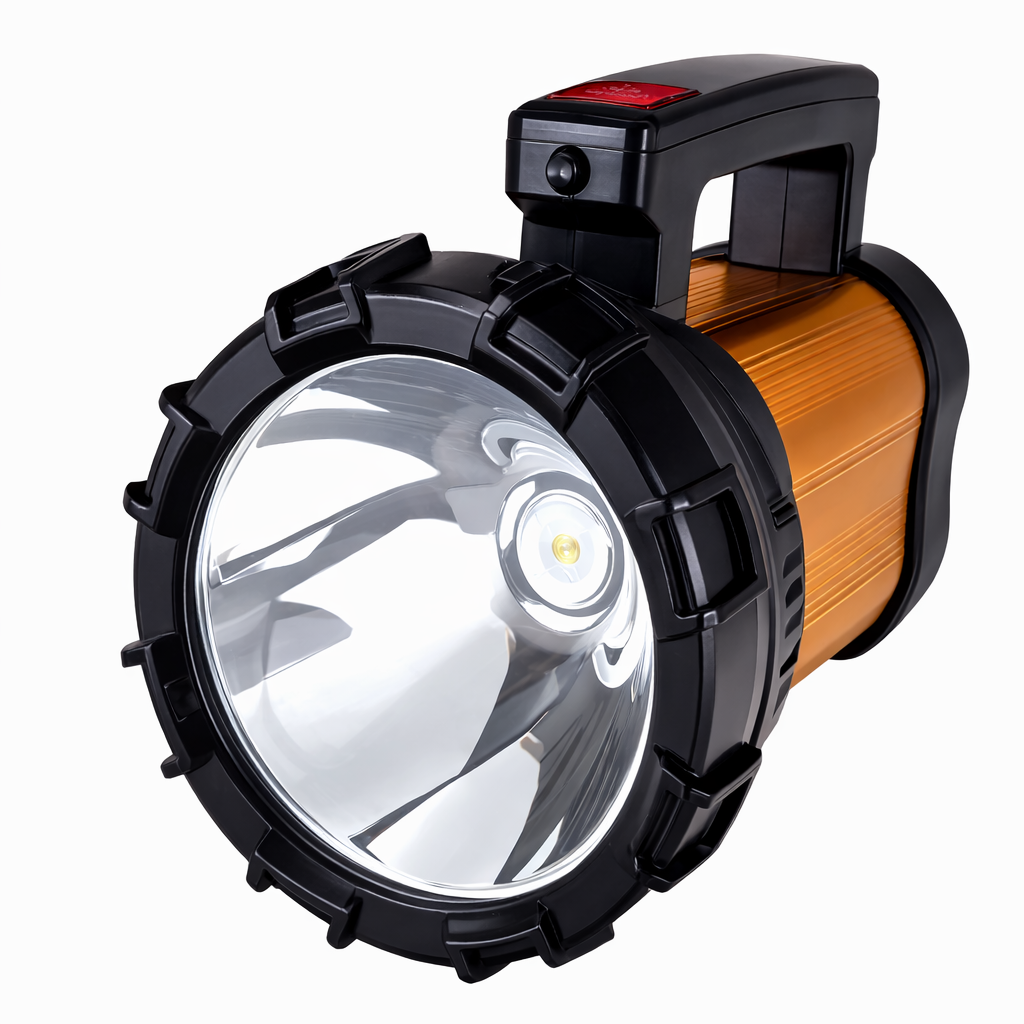

The Portable WD576 Explosion Proof Searchlight is a high-performance lighting solution engineered for hazardous and explosive environments. Designed with a rugged aluminum alloy enclosure and glass lens, this industrial searchlight ensures reliable illumination in challenging workplaces such as oil refineries, petrochemical plants, mining sites, gas facilities, and industrial maintenance areas.
Certified according to ATEX Directive 2014/34/EU, the WD576 searchlight is built to operate safely in potentially explosive atmospheres containing flammable gases, vapors, or combustible dust. The flashlight features advanced explosion-proof protection types including “db”, “ib”, and “tb”, providing reliable safety for industrial professionals working in dangerous environments.
With a durable and ergonomic design, the searchlight includes a top handle for easy carrying, allowing users to operate the device comfortably during inspections, emergency situations, and nighttime operations. The strong housing and IP68 protection rating provide resistance against dust, water, and harsh field conditions.
The WD576 searchlight operates efficiently in a wide temperature range from -20°C to +55°C, ensuring dependable performance across various industrial environments. Its powerful beam and rugged structure make it a reliable lighting tool for emergency teams, field engineers, pipeline inspectors, and industrial maintenance workers.
Features
-
ATEX certified explosion proof portable searchlight
-
Designed for hazardous gas and dust environments
-
Durable aluminum alloy enclosure with glass lens
-
High protection rating IP68 against water and dust
-
Ergonomic top handle for comfortable carrying
-
Reliable illumination for industrial inspection and emergency use
-
Multiple explosion protection types db ib and tb
-
Suitable for oil gas chemical and mining industries
-
Operates in wide temperature environments
-
Heavy duty industrial construction
Specifications
| Specification |
Details |
| Product Type |
Portable Explosion Proof Searchlight |
| Model |
WD576 |
| Certification |
ATEX ECM22 ATEX B DD57 |
| Explosion Protection |
II 2 G Ex db ib IIC T6 Gb |
| Dust Protection |
II 2 D Ex ib tb IIIC T80°C Db |
| Protection Rating |
IP68 |
| Housing Material |
Aluminum alloy enclosure |
| Lens |
Glass light transmitting lens |
| Operating Temperature |
-20°C to +55°C |
| Application Zones |
Zone 1 Zone 2 Zone 21 Zone 22 hazardous areas |

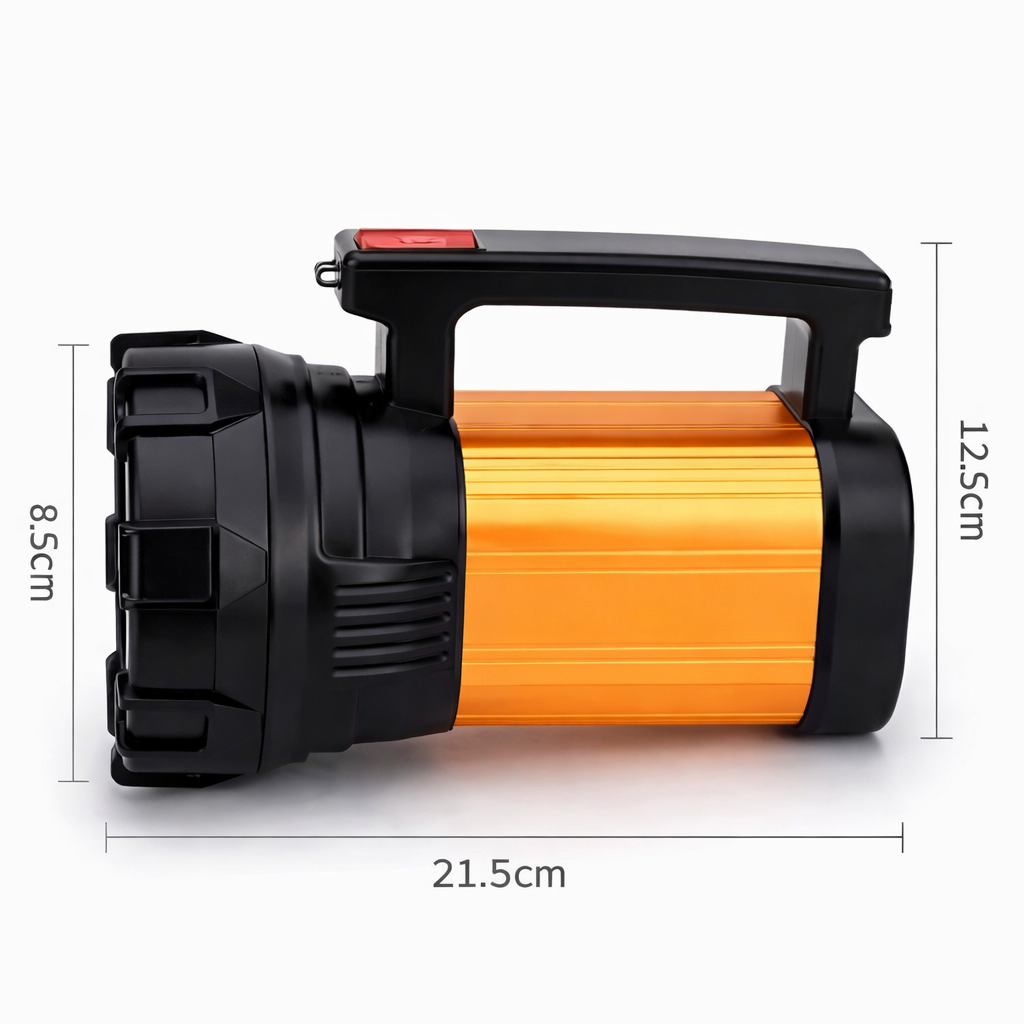

| Length |
21.5 cm |
| Head Diameter |
8.5 cm |
| Height |
12.5 cm |
| Handle |
Integrated carrying handle |
