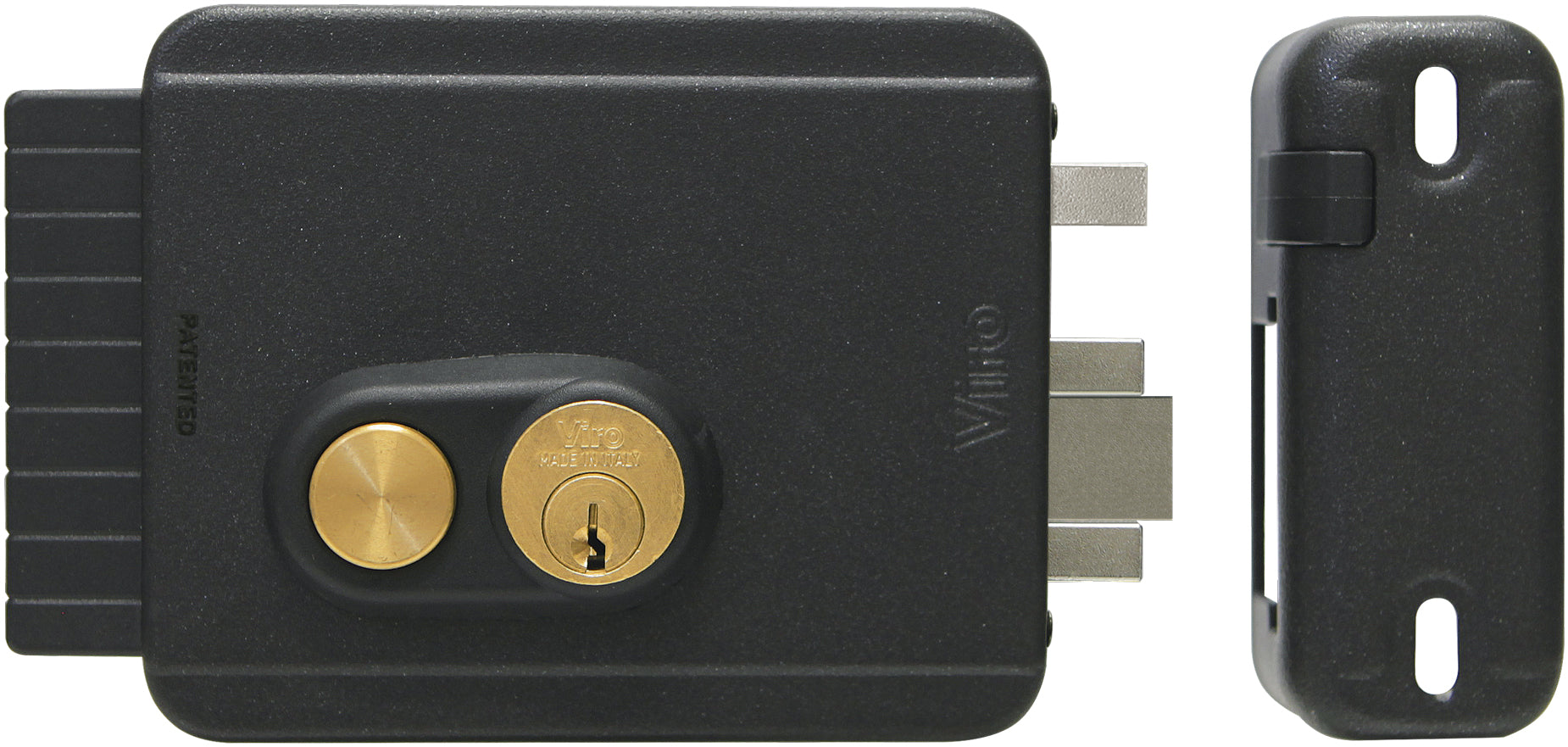

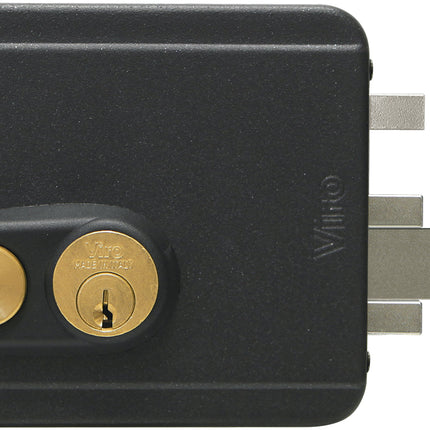

The Viro BLOCK OUT 8977 Series Electric Lock with Push Button is designed for reliable access control on internal and external doors, pedestrian gates, wooden doors, and metal gates. It is a practical solution for residential, commercial, and light industrial entrances where electric opening and strong mechanical locking are both required.
This lock features a manually operated dead bolt that keeps the lock secured independently from the electric impulse. This means the electric opening function can be used for daily access, while the dead bolt provides an added level of physical security when locked manually.
The adjustable backset can be set to 50, 60, 70, or 80 mm using the supplied Allen key, making installation more flexible and helping the lock replace common existing electric locks. The BLOCK OUT is also interchangeable with Viro V97 locks while maintaining the old striker, making it suitable for retrofit applications.
Built with a galvanized steel case and cover finished in anthracite metallic paint, the lock is designed for durability in changing weather conditions. It includes a solid nickel plated brass latch, solid nickel plated brass dead bolt, brass push button, steel adjustable striker, and Viro profile nickel plated brass keys.
Features
- Electric lock with push button for doors and pedestrian gates
- Suitable for internal and external installations
- Works with wooden doors, metal doors, and gates
- Manual dead bolt adds extra locking security
- Lock can only be opened with the key when the dead bolt is inserted
- Adjustable backset from 50 to 80 mm for flexible installation
- Interchangeable with Viro V97 locks while keeping the old striker
- Compatible with many common already installed electric locks
- Double replaceable coil distributes load evenly for longer service life
- Solid nickel plated brass latch and dead bolt for durability
- Adjustable steel striker helps compensate for vertical movement
- Standard 12V AC operation with other voltage options available on request
- Supplied with striker, keys, Allen key, and fixing screws
- Single box packaging for easy storage and resale
Specifications
| Specification |
Details |
| Brand |
Viro |
| Product Name |
BLOCK OUT with Push Button |
| Series |
8977 Series |
| Product Type |
Electric lock with push button and dead bolt |
| Installation Type |
Horizontal |
| Suitable For |
Internal doors, external doors, pedestrian gates, wooden doors, metal doors and gates |
| Backset |
Adjustable 50, 60, 70, 80 mm |
| Lock Dimensions |
127.5 x 103.5 mm |
| Standard Voltage |
12V AC |
| Optional Voltage |
12V DC, 24V AC or DC on request |
| Case Material |
One piece galvanized steel with anthracite metallic paint |
| Cover Material |
Galvanized steel with anthracite metallic paint |
| Handle Material |
Nylon |
| Latch Material |
Solid nickel plated brass |
| Dead Bolt Material |
Solid nickel plated brass |
| Dead Bolt Projection |
20 mm |
| Push Button Material |
Brass |
| Ejector Material |
Nickel plated steel |
| Striker |
Adjustable steel striker with self lubricating nylon support |
| Cylinders |
Solid brass internal fixed, external fixed or loose depending on version |
| Keys Supplied |
3 Viro profile nickel plated brass keys |
| Mechanism |
Brass pins, pick resistant mushroom brass counterpins, phosphor bronze springs |
| Supplied With |
Striker, cylinder ring nut or escutcheon depending on version, Allen key, fixing screws |
| Packaging |
Single box |
| Available Item Codes |
8977.794.1.469 Right, 8977.794.2.469 Left, 8977.712.1.469 Right, 8977.712.2.469 Left |
| Unit Weight |
Approx. 1625 g to 1635 g depending on version |
