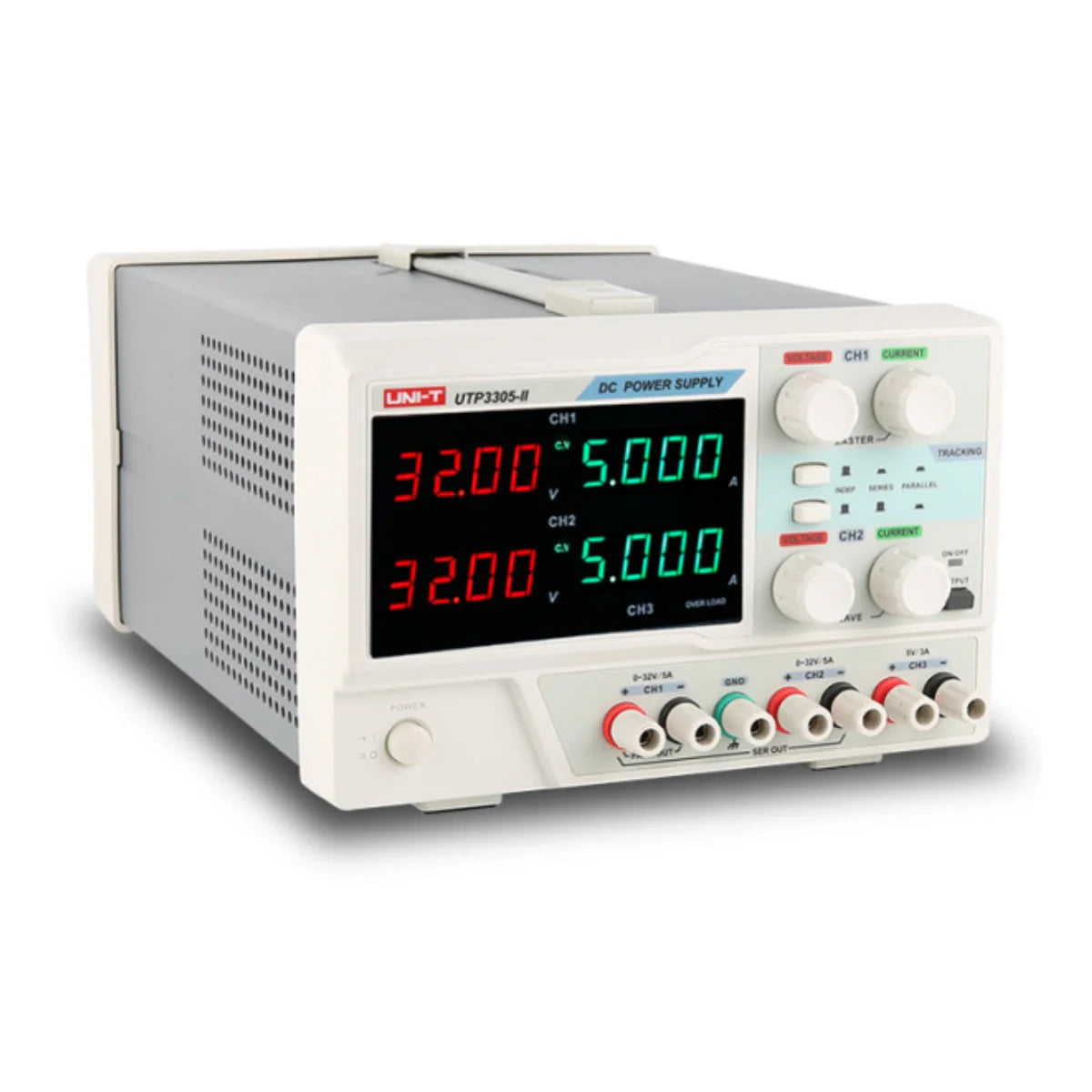

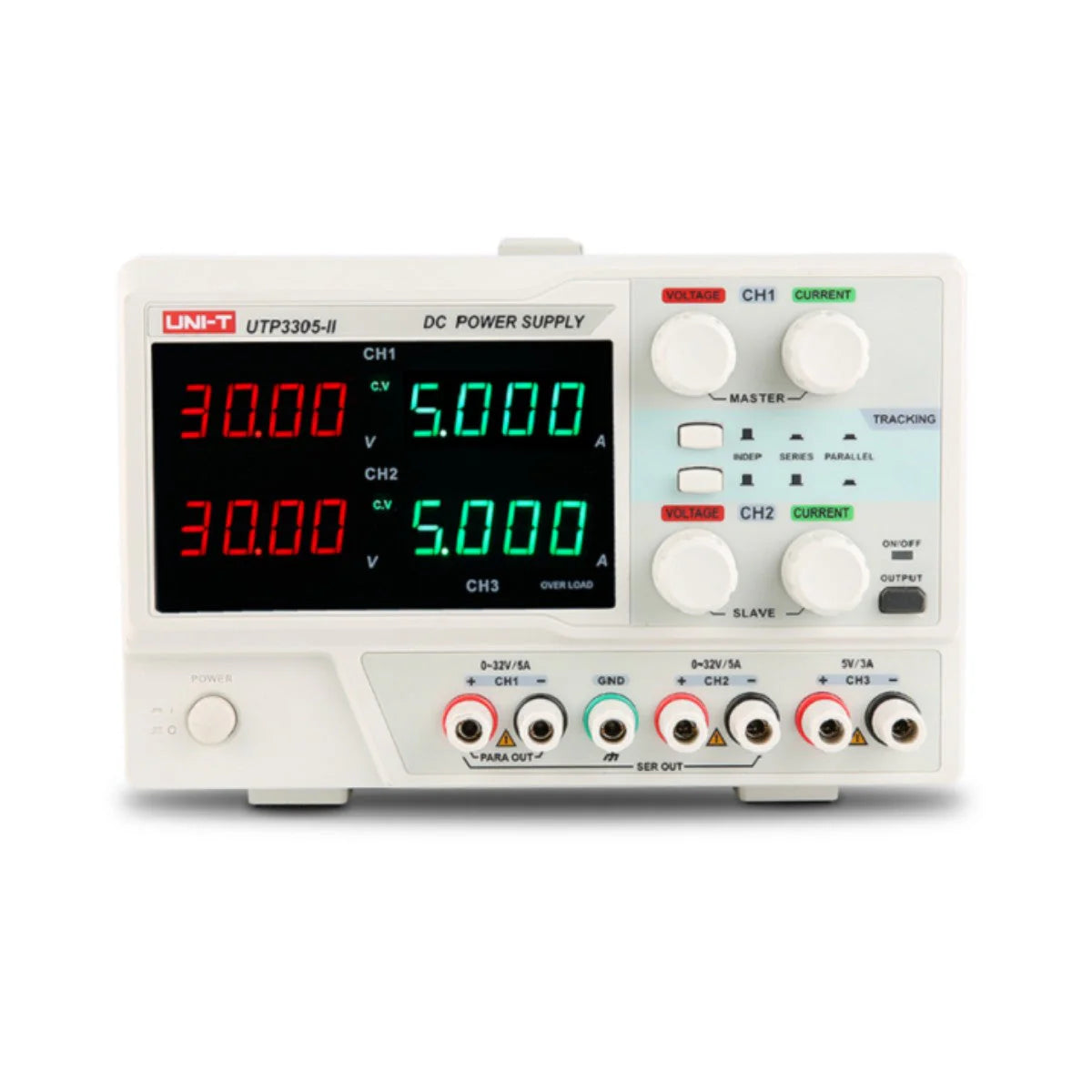

The UNI T UTP3305 II DC Power Supply is a high performance linear power supply designed for laboratories, electronics development, testing environments, and educational institutions. With three independent output channels and a total power capacity of 335 W, this device provides reliable and stable DC power for a wide range of applications.
The power supply offers a maximum output voltage of 32 V and a maximum output current of 5 A, allowing users to power and test different electronic circuits with precision. Its high resolution of 10 mV for voltage and 1 mA for current enables accurate adjustment and monitoring of output parameters.
This linear DC power supply ensures stable and low noise output, making it suitable for sensitive electronic experiments and professional circuit testing. The intuitive front panel controls and digital display allow users to easily monitor voltage and current levels for each channel.
Built with UNI T’s trusted engineering quality, the UTP3305 II DC Power Supply is an essential instrument for engineers, technicians, laboratories, and electronics repair professionals who require precise and reliable power control.
Features
-
Triple channel DC power supply for flexible testing
-
Maximum output voltage up to 32 V
-
Maximum output current up to 5 A
-
Total output power of 335 W
-
High resolution voltage and current adjustment
-
Stable linear power output with low noise
-
Ideal for laboratories, electronics development, and repair work
Specifications
| Feature |
Specification |
| Model Number |
UTP3305-II |
| Channels |
3 Channels |
| Output Voltage |
32 V |
| Output Current |
5 A |
| Total Power |
335 W |
| Max Voltage Resolution |
10 mV |
| Max Current Resolution |
1 mA |
| Type |
Linear DC Power Supply |
| Setting Accuracy |
Voltage < 0.01% + 3 mV, Current ≤ 0.2% + 3 mA |
| Warranty |
3 Years |
| Shipping Dimensions |
505 × 270 × 335 mm |
| Shipping Weight |
9.6 kg |
