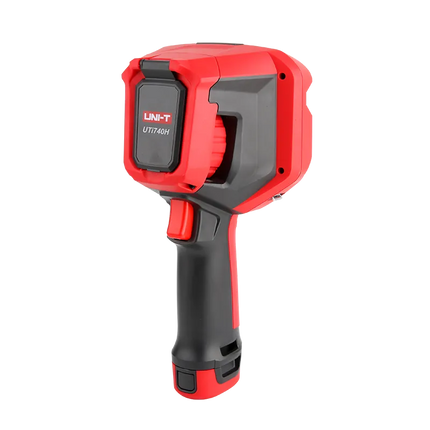

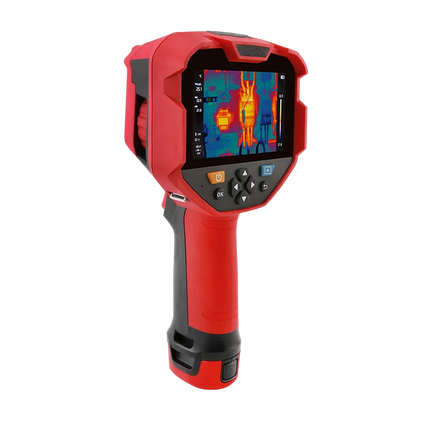

The UNI T UTi740H Professional Enhanced Thermal Camera is a high-performance industrial thermal imaging solution designed for advanced diagnostics and inspection tasks. With a wide temperature measurement range from -30°C to 650°C, it delivers precise thermal analysis for electrical, mechanical, and industrial maintenance applications.
Equipped with a 384×288 infrared resolution sensor and a 4.3 inch IPS display, the UTi740H provides sharp, detailed thermal images. The integrated 5MP digital camera enhances documentation capabilities, while manual focus allows precise adjustment based on inspection distance.
The device supports WiFi connectivity, isotherm analysis, on-screen measurement tools, and multiple image modes including thermal, visual, fusion, and PIP. With IP54 protection and 2 meter drop resistance, it is built for demanding field environments.
An ideal solution for professional thermographers, maintenance engineers, and industrial inspectors.
Features:
-
384 × 288 infrared resolution
-
Wide temperature range from -30°C to 650°C
-
4.3 inch IPS display (800 × 480)
-
5MP digital camera
-
Manual focus lens
-
2x and 4x digital zoom
-
7 color palettes
-
Image modes: Thermal, Visual, Fusion, PIP
-
On-screen analyzer (points, lines, rectangles, circles)
-
Isotherm function (Auto/Manual)
-
WiFi connectivity via mobile app
-
PC software for analysis and reporting
-
IP54 protection rating
-
2 meter drop resistance
-
Replaceable 5200mAh Li-ion battery
-
Type-C charging
Specifications:
| Specification |
Details |
| IR Resolution |
384 × 288 |
| Display |
4.3" IPS (800 × 480) |
| Field of View |
28° × 21° |
| Thermal Sensitivity (NETD) |
≤60mK |
| Spatial Resolution (IFOV) |
1.3 mrad |
| Frame Rate |
≤25Hz |
| Spectral Range |
8–14μm |
| Focus |
Manual |
| Temperature Range |
-30°C to 650°C |
| Accuracy |
±2°C or ±2% (whichever is greater) |
| Emissivity |
0.01–1.00 adjustable |
| Digital Camera |
5MP |
| Digital Zoom |
2x, 4x |
| Storage |
32GB Micro SD card |
| Battery |
3.7V 5200mAh Li-ion |
| Battery Runtime |
Approx. 5 hours |
| USB Interface |
Type-C |
| IP Rating |
IP54 |
| Drop Test |
2 meters |
| Net Weight |
806g |
| Product Size |
266.02 × 126.66 × 136 mm |
