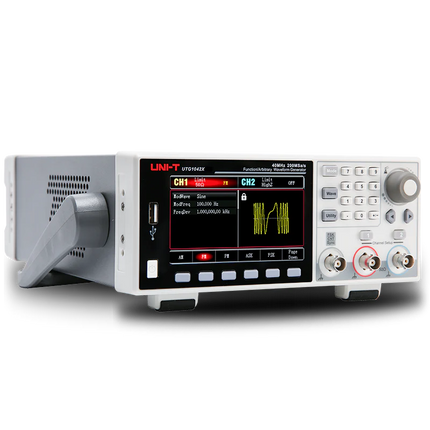

The UNI T UTG1022X Waveform Generator is a versatile signal generation instrument designed for electronics engineers, laboratories, and testing environments. With a maximum output frequency of 20 MHz and dual channel capability, this waveform generator allows users to produce stable and precise signals for a wide range of electronic testing applications.
Featuring a 200 MSa/s sample rate and 16 bit vertical resolution, the UTG1022X ensures high accuracy and signal clarity when generating waveforms. Its arbitrary waveform capability with a length of 4 kpts enables users to create customized signals for advanced testing and development tasks.
The generator is equipped with a 4.3 inch TFT LCD display that provides clear visualization of waveform parameters and system settings. With an intuitive control interface and reliable performance, this instrument is ideal for signal simulation, circuit design, education, maintenance, and research applications.
Designed with UNI T’s trusted engineering quality, the UTG1022X provides dependable performance for professional electronics measurement and signal generation.
Features
-
Maximum output frequency up to 20 MHz
-
Dual channel signal generation for simultaneous outputs
-
200 MSa/s sampling rate for precise waveform creation
-
16 bit vertical resolution for high signal accuracy
-
Arbitrary waveform length up to 4 kpts
-
4.3 inch TFT LCD display for clear signal monitoring
-
Ideal for electronics testing, development, and laboratory use
Specifications
| Feature |
Specification |
| Model Number |
UTG1022X |
| Max Output Frequency |
20 MHz |
| Channels |
Dual Channel |
| Sample Rate |
200 MSa/s |
| Arbitrary Wave Length |
4 kpts |
| Vertical Resolution |
16 Bits |
| Display |
4.3 inch TFT LCD |
| Warranty |
3 Years |
| Shipping Dimensions |
17 × 14 × 5 in |
| Shipping Weight |
2.2 kg |
| Documents |
English download guide, multi language safety manual, calibration report COC |
| Included Accessories |

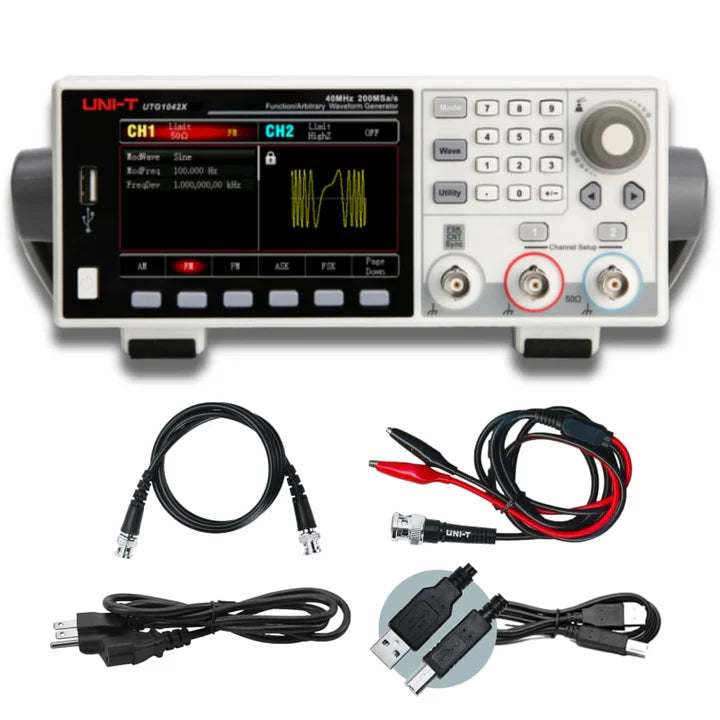

Power cord, USB2.0 printing cable, BNC straight through cable, BNC to alligator clip cable |
