The UNI T UT220 Digital Clamp Meter is a professional measurement tool designed for electricians, engineers, and industrial technicians who need to measure high AC currents safely and efficiently. With a measurement capability of up to 2000A AC, this clamp meter provides reliable performance for power systems, industrial equipment, and electrical maintenance tasks.
The clamp design allows non contact current measurement, enabling users to measure current without disconnecting circuits. This ensures safer operation and faster diagnostics in electrical systems.
The UT220 also supports AC voltage measurement up to 750V and DC voltage measurement up to 1000V, making it suitable for a wide range of electrical testing applications. It also includes resistance measurement up to 20MΩ, providing flexibility for troubleshooting circuits and electrical components.
Additional functions such as auto range, MAX MIN recording, diode testing, data hold, and continuity buzzer make the UT220 a practical and reliable instrument for daily electrical work.
Designed with a clear LCD display and powered by a standard 9V battery, the UNI T UT220 clamp meter is suitable for industrial maintenance, electrical installations, and power system diagnostics.
Features
-

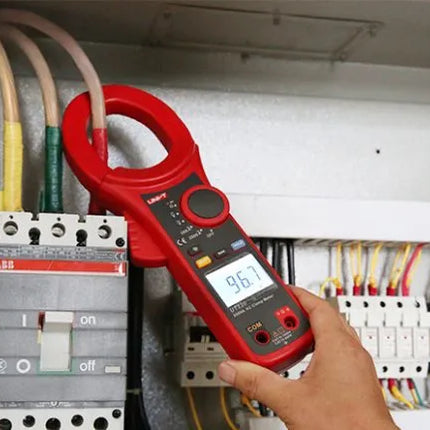

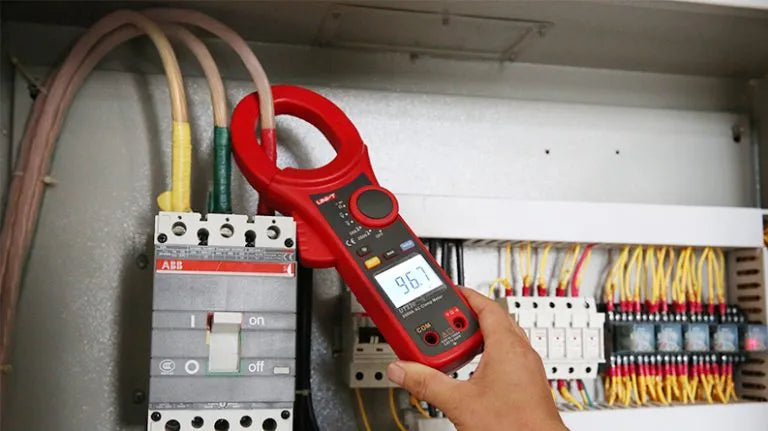

Measures AC current up to 2000A using clamp sensor
-

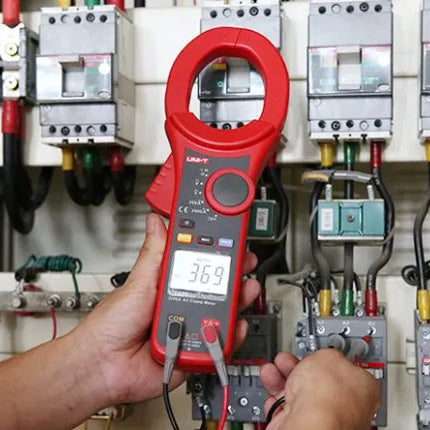

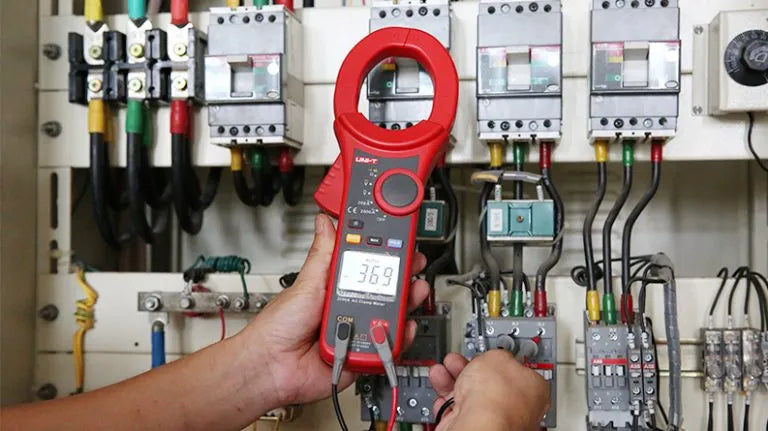

AC voltage measurement up to 750V
-
DC voltage measurement up to 1000V
-
Resistance measurement up to 20MΩ
-
Auto range for convenient operation
-
MAX MIN measurement recording
-
Diode test and continuity buzzer
-
Data hold function for easy reading
-
Low battery indication
Specifications
| Feature |
Specification |
| Model Number |
UT220 |
| AC Current Range |
2000 A |
| AC Current Accuracy |
±(2.5% + 5) |
| AC Voltage Range |
750 V |
| AC Voltage Accuracy |
±(1.2% + 5) |
| DC Voltage Range |
1000 V |
| DC Voltage Accuracy |
±(0.8% + 1) |
| Resistance |
20 MΩ |
| Display |
43 mm × 30 mm LCD |
| Power Supply |
9V Battery (6F22) |
| Product Size |
298 × 107 × 47 mm |
| Product Weight |
389 g |
| Warranty |
3 Years |
