Professional 1000A True RMS digital clamp meter with LoZ mode, LPF filter, inrush current measurement and NCV detection for electrical troubleshooting. (147 characters)
Extended Description:

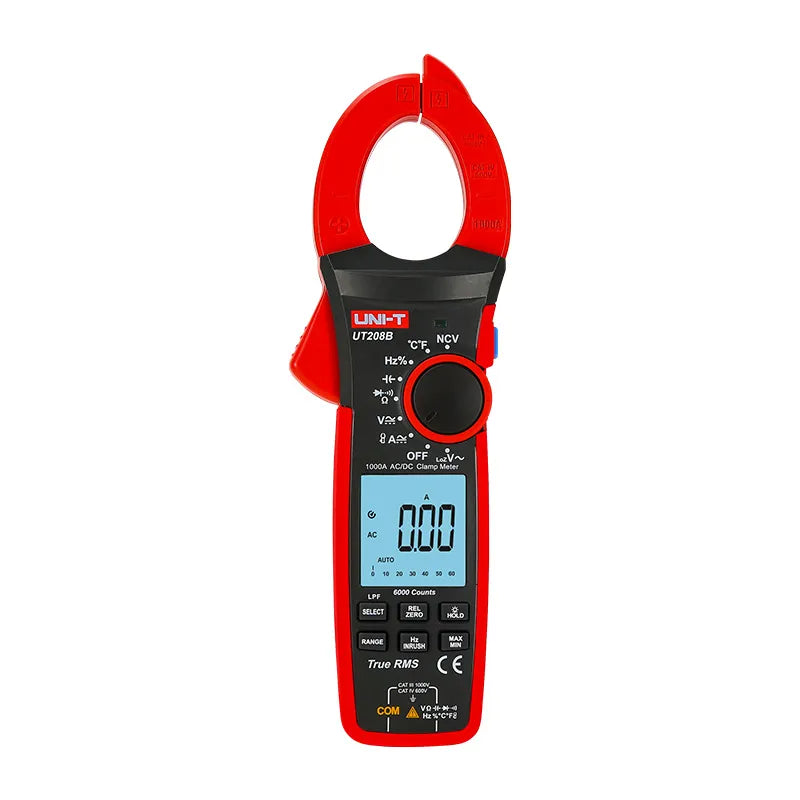

The UNI T UT208B True RMS Digital Clamp Meter is a professional electrical measuring tool designed for accurate current and voltage measurements in industrial and commercial environments. With a measurement capability of up to 1000A AC/DC current, it is ideal for electricians, maintenance engineers, and power technicians.
This clamp meter features True RMS technology, ensuring precise readings even when measuring non-linear signals. The LoZ (Low Impedance) mode helps eliminate ghost voltage, while the LPF (Low Pass Filter) function allows accurate measurement of variable frequency drive (VFD) signals.
The UT208B also includes inrush current measurement for detecting startup current in motors and electrical equipment. Additional functions such as NCV detection, temperature measurement, and a 6000-count display make it a versatile tool for professional diagnostics.
Designed with a large LCD display, flashlight, and durable clamp structure, the UT208B provides reliable performance in demanding field environments.
Features:
-
True RMS measurement for accurate readings
-
AC/DC current measurement up to 1000A
-
LoZ mode to eliminate ghost voltage
-
Low Pass Filter (LPF) for VFD measurements
-
Inrush current measurement
-

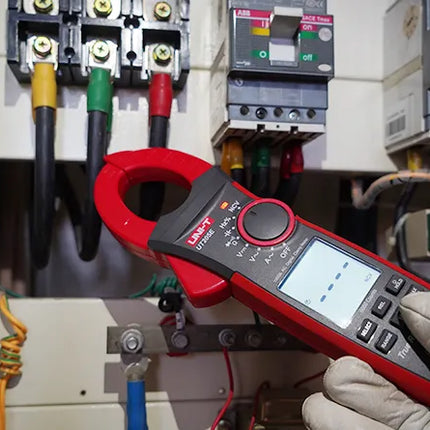

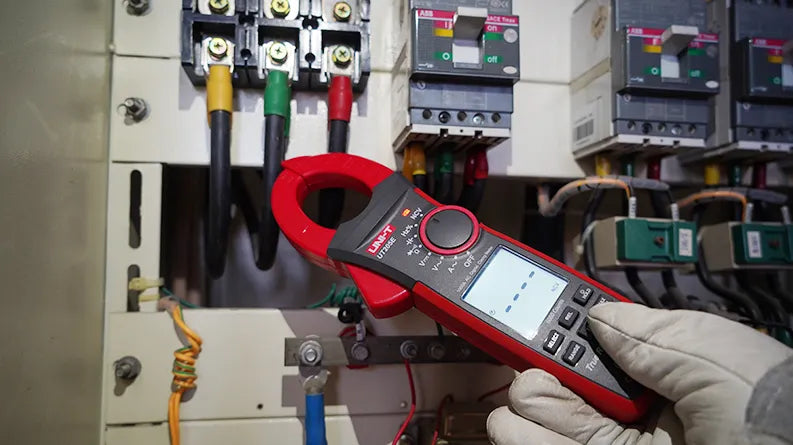

Non-contact voltage (NCV) detection with audio/visual alarm
-
6000 count digital display
-
Analog bar display for quick monitoring
-
Flashlight function for dark work areas
-
Auto backlight LCD display
-
Temperature measurement capability
-
Flexible current probe support (optional up to 3000A)
-
NCV and function retention feature
Specifications:
| Specification |
Details |
| AC Current |
1000A |
| DC Current |
1000A |
| AC Voltage |
1000V |
| DC Voltage |
1000V |
| AC Frequency Response |
40Hz – 400Hz |
| Inrush Current |
1000A |
| Resistance |
60MΩ |
| Capacitance |
60mF |
| Temperature Range |
-40°C to 1000°C |
| Low Voltage Frequency |
10Hz – 1MHz |
| Duty Cycle |
10% – 90% |
| Display Count |
6000 |
| Jaw Opening |
42mm |
| Power Supply |
3 × 1.5V AAA batteries |
| Display Size |
43mm × 45mm |
| Net Weight |
420g |
| Product Size |
272 × 81 × 43.5 mm |
