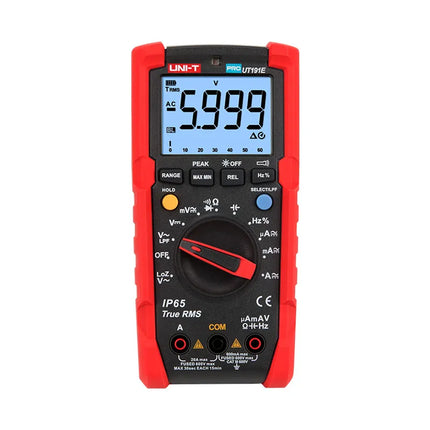

The UNI T UT191E Digital Multimeter is a professional industrial-grade measuring instrument engineered for electricians, technicians, and maintenance engineers who demand accuracy and durability. Designed for harsh working environments, it features IP65 protection against dust and water along with 2 meter drop resistance.
With True RMS capability, the UT191E ensures precise readings even on non-linear loads. It measures AC/DC voltage and current, resistance, capacitance, frequency, and duty cycle with high reliability. The 6000-count LCD display with analog bar graph delivers clear visibility, while the built-in flashlight and automatic backlight enhance usability in low-light environments.
Whether for industrial maintenance, electrical troubleshooting, HVAC systems, or automation diagnostics, the UT191E provides professional performance and long-lasting durability in one rugged device.
Features
-
True RMS measurement for accurate non-sinusoidal signal testing
-
Auto and manual ranging
-
Data Hold function
-
MIN MAX recording
-
Peak Hold measurement
-
Diode and continuity test with buzzer
-
Low Impedance LoZ AC mode
-
Built in flashlight
-
Auto backlight display
-
Low battery indication
-
IP65 dust and water protection
-
2 meter drop resistance
Specifications
| Specification |
Details |
| Display Count |
6000 count LCD |
| AC Voltage |
Up to 600V |
| DC Voltage |
Up to 600V |
| AC Current |
Up to 20A |
| DC Current |
Up to 20A |
| Resistance |
Up to 60MΩ |
| Capacitance |
Up to 60mF |
| Frequency |
Up to 1MHz |
| Duty Cycle |
0.1% to 99.9% |
| Safety Rating |
CAT III 600V |
| Protection Level |
IP65 |
| Power Supply |
9V Battery |
| Drop Protection |
2 meters |
