Description

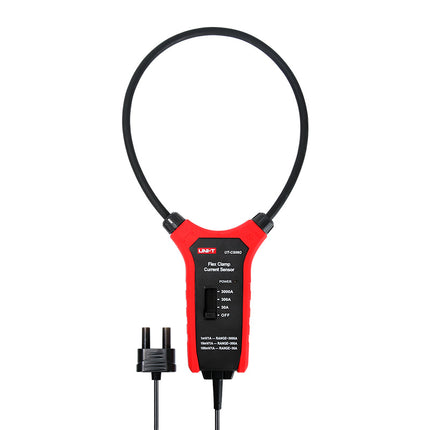

The UNI-T UT-CS09D Flex Clamp Sensor is a professional-grade current measurement accessory designed for high-current industrial and commercial applications. Built with a flexible Rogowski coil, this sensor easily wraps around large conductors, making it ideal for confined panels and complex installations where traditional rigid clamp jaws cannot fit.

Capable of measuring AC current up to 3000A, the UT-CS09D ensures reliable and stable performance for electricians, maintenance engineers, and industrial technicians. Its lightweight yet durable construction makes it suitable for field use, while the CAT IV 600V safety rating provides enhanced protection during high-energy measurements. The device includes essential accessories for convenient operation and immediate deployment on job sites.

Features

Flexible Rogowski coil for confined space measurements
AC current measurement up to 3000A
Wide measurement range starting from low current levels
Compatible with multimeters and clamp meters
Lightweight and portable design
Durable housing with 1 meter drop protection
CAT IV 600V safety rating
Includes BNC adapter for extended compatibility
Designed for professional and industrial environments

Specifications

Specification	Detail
AC Current Range	30A / 300A / 3000A
Minimum Current	1.5A
Frequency Response	45Hz – 500Hz
Flex Coil Length	45.7 cm (18 inch)
Operating Temperature	0°C – 50°C
Storage Temperature	-20°C – 60°C
Storage Humidity	≤ 80% RH
Safety Category	CAT IV 600V
Power Supply	3 × 1.5V AAA batteries
Net Weight	260 g
Dimensions	267 × 119.4 × 34 mm
Included Accessories	Batteries, BNC adapter, user manual
