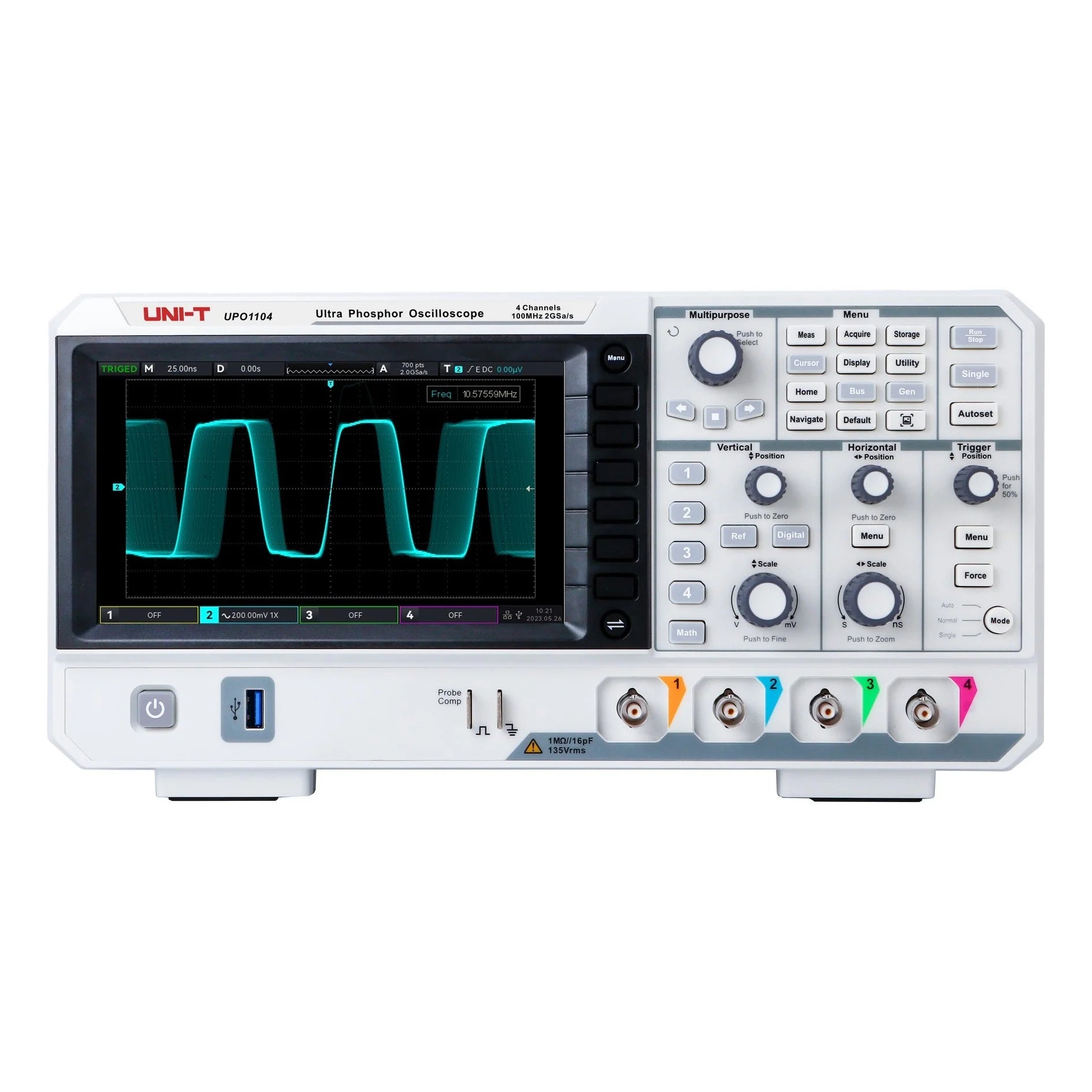

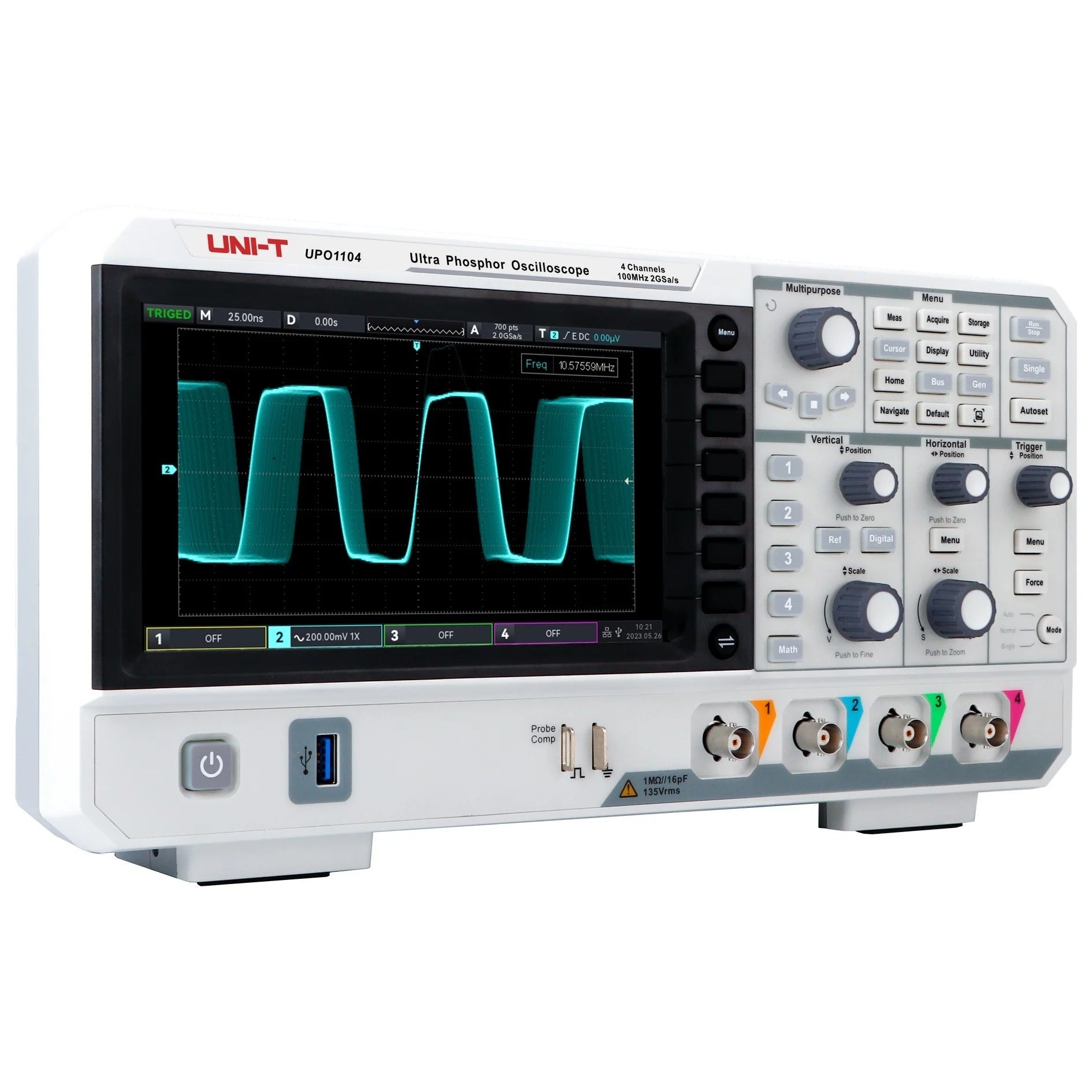

The UNI T UPO1104 Digital Oscilloscope is a high performance measurement instrument designed for engineers, technicians, laboratories, and electronics testing environments. With a bandwidth of 100 MHz and four analog input channels, it allows simultaneous signal monitoring and detailed waveform analysis.
Equipped with a real time sampling rate of 2 GSa/s and a memory depth of 56 Mpts, the oscilloscope provides precise signal acquisition and extended waveform storage for detailed analysis. Its fast waveform capture rate of up to 500,000 waveforms per second allows users to detect signal anomalies and transient events effectively.
The device features a clear 7 inch TFT LCD display that ensures excellent waveform visualization and easy parameter adjustment. Its intuitive control interface allows engineers and technicians to perform measurements efficiently during development, troubleshooting, and maintenance tasks.
With high reliability and professional measurement capabilities, the UNI T UPO1104 Digital Oscilloscope is ideal for electronics design, educational laboratories, industrial testing, and circuit diagnostics.
Features
-
100 MHz bandwidth for accurate signal measurement
-
Four analog channels for simultaneous waveform monitoring
-
Real time sampling rate up to 2 GSa/s
-
Fast waveform capture rate up to 500000 wfms per second
-
56 Mpts memory depth for extended waveform storage
-
7 inch TFT LCD display for clear waveform visualization
-
Suitable for laboratories, electronics development, and troubleshooting
Specifications
| Feature |
Specification |
| Model Number |
UPO1104 |
| Bandwidth |
100 MHz |
| Channels |
4 Analog |
| Real Time Sample Rate |
2 GSa/s |
| Rise Time |
≤ 3.5 ns |
| Memory Depth |
56 Mpts |
| Waveform Capture Rate |
500000 wfms/s |
| Input Impedance |
1 MΩ ±2% 16 pF ±2 pF |
| Waveform Generator |
No |
| Display |
7 inch TFT LCD |
| Touchscreen |
No |
| Warranty |
3 Years |
| Shipping Dimensions |
306 × 138 × 107 mm |
| Shipping Weight |
2.5 kg |
| Documents |
English download guide, multi language safety manual, calibration report COC |

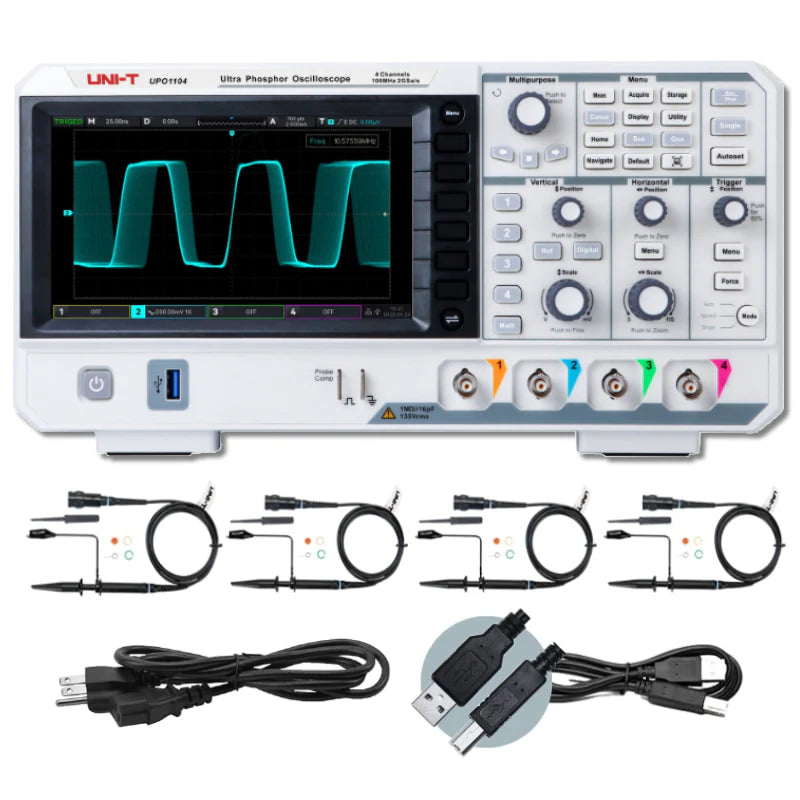

| Included Accessories |
Power cord, USB2.0 printing cable, Passive probe 100 MHz ×4 UT P04 |
