Description

Shop Legrand Undervoltage Release 2NO 110V AC MPX3 Motor Circuit Breaker | 417431 In Iraq Best Prices

Specialized undervoltage release module with 2 NO contacts for MPX3 motor circuit breakers, 110V AC rated, ideal for tertiary and industrial motor protection applications

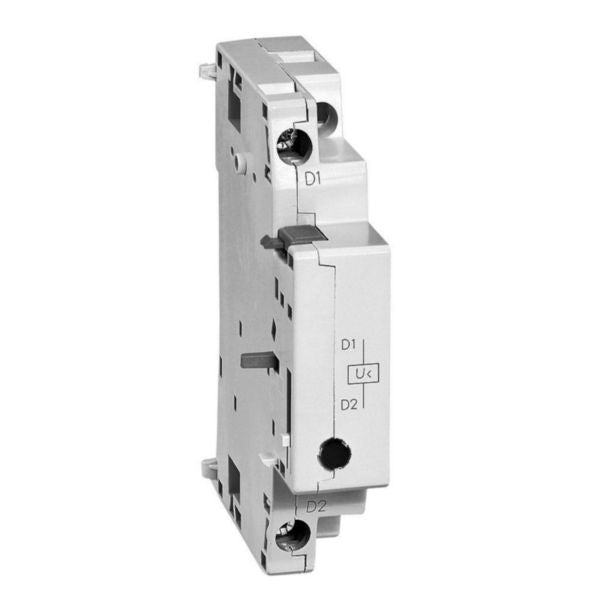

The Undervoltage Release 2NO built-in 110V AC is a specialized auxiliary module designed for the MPX3 motor circuit breaker series by Legrand. This device provides critical undervoltage protection for three-phase asynchronous motors in tertiary and industrial installations. The module features 2 normally open (NO) auxiliary contacts and operates on a rated control supply voltage of 110V AC at both 50Hz and 60Hz frequencies, with an operational range of 93.5-121V. The undervoltage release automatically disconnects the motor circuit when the supply voltage drops below the set threshold, preventing damage to equipment and ensuring operational safety in demanding industrial environments. This product is specifically engineered for motor safety applications and mounts on the right side of the MPX3 breaker (not compatible with MPX3 32S models). The screw connection terminal provides secure and reliable electrical connections. The device incorporates advanced protection mechanisms that comply with international standards for motor control and protection systems. It is particularly suitable for applications requiring continuous monitoring of supply voltage and automatic circuit disconnection during voltage anomalies. The Undervoltage Release 2NO is an essential component for comprehensive motor protection strategies in industrial facilities, data centers, and commercial installations where equipment reliability is paramount. Installation requires careful attention to the provided instructions to ensure optimal performance and safety compliance.

Key Features

2 Normally Open (NO) auxiliary contacts for reliable circuit control
Rated control supply voltage 110V AC (50/60Hz) with operating range 93.5-121V
Automatic undervoltage protection for three-phase asynchronous motors
Screw connection terminals for secure electrical connections
Right-side mounting on MPX3 breaker series (not compatible with MPX3 32S)
Designed for tertiary and industrial installations requiring motor safety
Complies with international standards for motor control and protection
Delayed protection mechanism prevents nuisance trips

Technical Specifications

Specification	Value
Product Reference	417431
EAN Code	3414970396716
Brand	Legrand
Product Series	MPX3
Rated Control Supply Voltage AC 50Hz	110V AC (93.5-121V)
Rated Control Supply Voltage AC 60Hz	110V AC (93.5-121V)
Voltage Type for Actuating	AC
Number of Normally Open Contacts	2
Number of Normally Closed Contacts	0
Number of Change-over Contacts	0
Type of Electric Connection	Screw connection
Delayed Protection	No
Suitable for Power Circuit Breaker	No
Suitable for Off-load Switch	No
Suitable for Motor Safety Switch	Yes
Suitable for Overload Relay	No
Mounting Position	Right side of breaker
Compatibility	Not compatible with MPX3 32S
Application Type	Tertiary and Industrial Installations
Protection Function	Undervoltage Release

Order Legrand Undervoltage Release 2NO 110V AC MPX3 Motor Circuit Breaker | 417431 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
