Shop Snap-On Tools@Height 3/8" Drive 6-Point SAE 5/8" Flank Drive® Deep Socket | THSFS201 In Iraq Best Prices
Professional 3/8" drive deep socket with 6-point SAE 5/8" Flank Drive system, locking hole design, and chrome/nickel finish for superior rust resistance and durability.

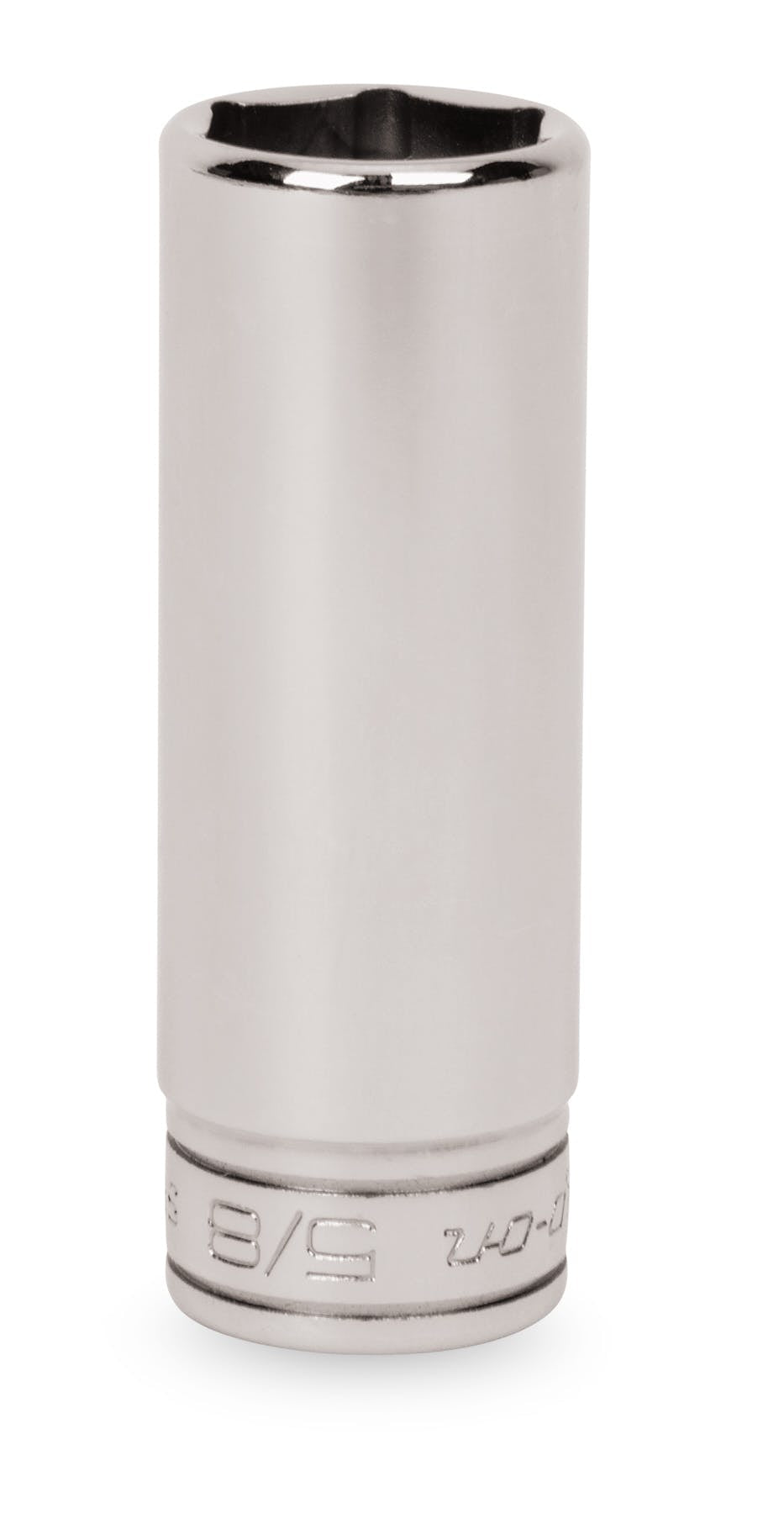

The Tools@Height 3/8" Drive 6-Point SAE 5/8" Flank Drive Deep Socket (Model THSFS201) is a professional-grade socket engineered for demanding work environments and high-performance applications. This deep socket features Snap-on's proprietary Flank Drive wrenching system that grips fasteners on the flanks and flats, delivering 15-25% more turning power compared to traditional socket designs. The socket is constructed from the highest quality proprietary steel, ensuring optimum strength and durability for extended tool life and reliable performance in demanding industrial applications.
The socket incorporates innovative safety features including locking holes on all four sides of the socket body. This unique locking hole and pin combination design significantly reduces the risk of misaligning the socket, adaptor, or extension onto the drive tool, enhancing workplace safety and preventing tool damage. The chrome/nickel-alloy finish provides superior rust and corrosion resistance, making it ideal for use in harsh environments including aviation, aerospace, military, defense, oil and gas, power generation, and general industrial applications.
With a 6-point configuration, this deep socket provides excellent fastener engagement and is manufactured to ASME/ANSI B107.1-2002 standards. The socket weighs only 0.18 lb (0.08 kg) and measures 2-3/8 inches in length, making it compact and easy to transport. This professional tool is designed for technicians and maintenance professionals who demand precision, reliability, and superior performance in their socket tools.
Key Features
- Flank Drive wrenching system delivers 15-25% more turning power than traditional sockets
- Locking holes on all four sides reduce misalignment risk and enhance safety
- Manufactured from highest quality proprietary steel for optimum strength and durability
- 6-Point SAE configuration for secure fastener engagement
- Chrome/nickel-alloy finish provides superior rust and corrosion resistance
- ASME/ANSI B107.1-2002 standards certified
- Compact lightweight design at 0.18 lb for easy portability
- Deep socket design for extended reach on recessed fasteners
Technical Specifications
| Specification |
Value |
| Model Number | THSFS201 |
| Drive Size | 3/8 inch |
| Socket Size (SAE) | 5/8 inch |
| Point Configuration | 6-Point |
| Wrenching System | Flank Drive |
| Socket Type | Deep Socket |
| Material | Proprietary Steel |
| Finish | Chrome/Nickel-Alloy |
| Socket End Diameter (Dimension A) | 27.32 mm |
| Drive End Outside Diameter (Dimension B) | 13/16 inch |
| Bolt Clearance Depth (Dimension C) | 1-29/32 inches |
| Overall Length (Dimension D) | 2-3/8 inches |
| Opening Depth (Dimension E) | 15/32 inch |
| Weight | 0.18 lb (0.08 kg) |
| Standards Compliance | ASME/ANSI B107.1-2002 |
| Safety Features | Locking holes on all four sides |
| Corrosion Resistance | Superior rust and corrosion resistant finish |
| List Price | $47.75 |
