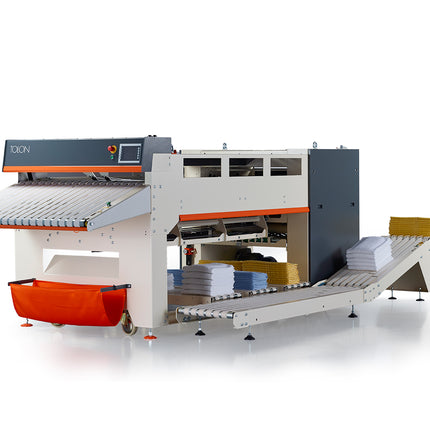

The TOLON TTF 200 is a high-performance industrial towel folder designed to deliver precise and hygienic folding at exceptional speeds. Ideal for commercial laundries, hospitals, and hospitality operations, it handles up to 1250 towels per hour, with consistent quality in folding thanks to its integrated reverse motor and assisting strips.
It supports a wide range of towel sizes—from as small as 17.7 × 23.6 inches to as large as 47.2 × 78.7 inches—across three standard folding lanes (optional fourth lane available). With flexibility in folding styles including half fold, third fold, quarter fold, French fold, and half wing, the TTF 200 adapts to various presentation needs.
The unit operates in manual, automatic, or continuous modes and features an easy-to-use USB interface for program setup. It also includes automatic length measurement of towels for precise folding. Four output directions and a delivery conveyor enhance workflow efficiency in demanding laundry settings.
Features:
-
Folding capacity: up to 1250 towels/hour
-
3 standard folding lanes (optional 4th lane)
-
Supports various fold types: French, quarter, third, half wing, etc.
-
Handles towel sizes from 17.7 × 23.6 in to 47.2 × 78.7 in
-
Manual, automatic, and continuous operation modes
-
Integrated reverse motor and guiding strips for quality folding
-
Automatic linen length detection
-
Fast USB-based setup of folding programs
-
Four exit direction configurations
-
Includes output delivery conveyor
-
Hygienic design ideal for professional laundries
Specifications Table:
| Specification |
TTF 200 |
| Nominal Capacity |
1250 towels/hour |
| Operational Capacity |
~900 towels/hour |
| Min Towel Size |
17.7 × 23.6 in |
| Max Towel Size |
47.2 × 78.7 in |
| Number of Folding Lanes |
3 (optional 4) |
| Folding Combinations |
2 × 2 |
| Motor Power |
2.01 HP |
| Fuse |
3 × 16 A |
| Cable |
4 × 14 AWG |
| Air Pressure |
87–116 psi |
| Air Consumption |
92 gal/min |
| Air Connection |
0.39 in |
| Installed Dimensions (W×D×H) |
81.4 × 187.7 × 59 in |
| Packing Dimensions Folder |
59 × 154.3 × 59.8 in |
| Packing Dimensions Conveyor |
23.6 × 94.4 × 31.4 in |
| Net Weight |
2425 lb (folder), 275 lb (conveyor) |
| Gross Weight |
2712 lb (folder), 330 lb (conveyor) |
