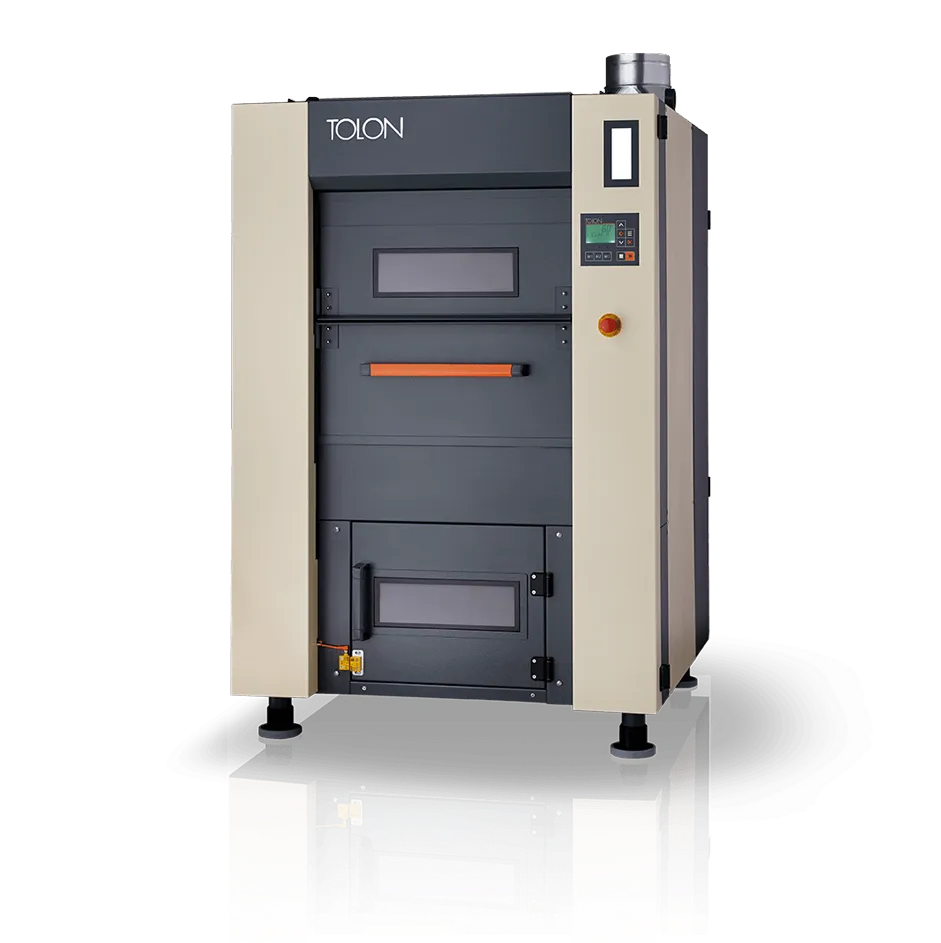

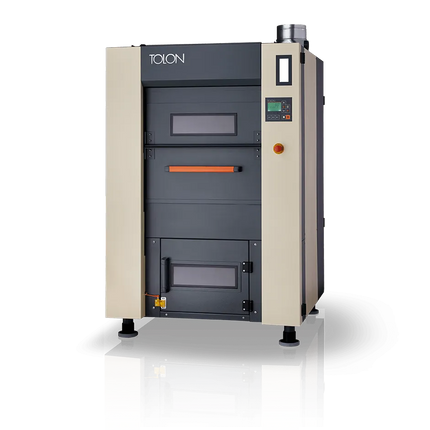

The TOLON TTD 40 is a robust industrial tumble dryer engineered for large-scale laundry environments. With its 40 kg (88 lb) dry load capacity and powerful heating options, it offers rapid, uniform drying performance ideal for hotels, hospitals, and laundromats.
Equipped with a stainless steel reversing drum, the TTD 40 maximizes airflow for efficient drying. It includes a fully insulated drum to minimize energy loss, a wide sliding door with a view window for easy handling, and a large, accessible lint filter for streamlined maintenance.
Operators benefit from a freely programmable control system with a large LCD display, enabling precision across various textile types. Available in electric, gas, or steam heating, it also features safety enhancements like a sprinkler fire suppression system (in gas models) and a sail switch for optimal airflow monitoring.
Features:
-
40 kg (88 lb) drying capacity
-
Reversing stainless steel drum for efficient drying
-
Fully insulated drum to save energy
-
Wide sliding door with inspection window
-
Programmable LCD control system
-
Fire suppression system on gas models
-
Easy access and removable lint filter
-
Hinged lint filter door for fast cleaning
-
Sail switch for airflow control
-
Inverter-driven motor
-
Electric, steam, or gas heating available
Specifications Table:
| Specification |
TTD 40 |
| Dry Load Capacity |
40 kg (88 lb) |
| Drum Volume |
213 gal |
| Drum Diameter / Depth |
48.43 in / 26.77 in |
| Door Opening |
28.14 in |
| Cycle Time (Electric) |
40–45 minutes |
| Cycle Time (Gas) |
30–35 minutes |
| Cycle Time (Steam) |
35–40 minutes |
| Heating Power (Electric) |
36 kW |
| Gas Burner Power |
55.24 kW |
| Steam Heat Power (6 Bar) |
45 kW |
| Electric Consumption |
39 kWh (electric model) |
| Noise Level |
< 63.7 dB |
| Dimensions (Electric) |
55.74 x 60.15 x 86.25 in |
| Net Weight (Electric) |
1355 lb |
