Professional disposable CO detector with 2-year battery life, hibernation mode, dual alarms, and hazardous area certifications. Zero maintenance required.

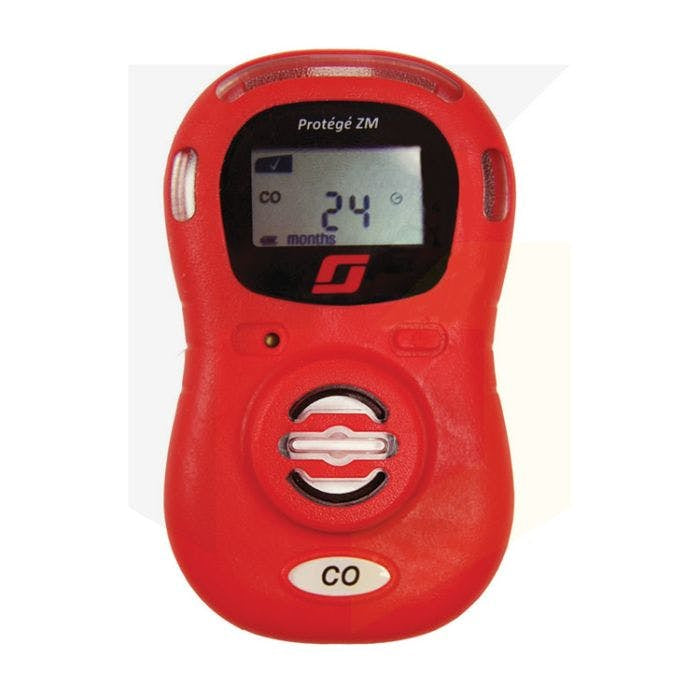

The Teledyne GMI Protege ZM is a premium disposable single gas detector specifically designed for Carbon Monoxide (CO) detection with alarm thresholds set at Hi 35ppm and HiHi 200ppm. This zero-maintenance unit operates continuously for approximately 2 years without requiring calibration, charging, or maintenance. The detector features an innovative hibernation mode that can extend battery life for up to one additional year, making it an economical choice for long-term gas monitoring applications. Simply activate the monitor and it will run 24 hours a day for the entire service period, providing reliable and consistent protection against carbon monoxide hazards.
Designed for professional safety applications, the Protege ZM combines advanced technology with user-friendly operation. The unit features dual high-visibility LED alarms that flash when gas is detected, complemented by a 95dB audible alarm and vibrating alert system. The display provides real-time information including time remaining in the monitor's life, gas type, functional test validation status, bump test due indicators, and battery level. With its compact size (3.7" x 2.2" x 1.3") and lightweight construction (2.7 oz), this detector is ideal for workers who need portable, reliable protection without the burden of regular maintenance.
The Protege ZM is fully certified for hazardous area use with ETL/CETL certification to UL 913 7th edition, CSA C22.2 No. 157, ATEX II 1 G Ex ia IIC T4 GA, and IECEx certifications. It features an impact-absorbent rubber casing, IP66/67 rating for dust and water protection, and operates reliably across a temperature range of -30°C to 50°C. The device includes a stainless steel alligator clip for secure attachment and supports data logging of the last 25 events with backup capability via infrared connection to PC. Configuration options are available through the IR Connect Module and dedicated software, allowing for customized settings and inventory management via six-character user IDs.
Key Features
- 2-year zero-maintenance operation with continuous 24/7 monitoring capability
- Hibernation mode extends battery life up to one additional year
- Dual high-visibility LED alarms with 95dB audible alarm and vibrating alert
- Compact lightweight design (2.7 oz) with stainless steel alligator clip included
- IP66/67 rated with impact-absorbent rubber casing for hazardous environments
- Data logging of last 25 events with PC backup via infrared connection
- Configurable via IR Connect Module and dedicated software with user ID assignment
- Display shows real-time readings, gas type, battery level, and test status
- ETL/CETL, ATEX, and IECEx certified for Class I Division 1 & 2 hazardous areas
- Temperature range -30°C to 50°C with 5-95% humidity tolerance
Technical Specifications
| Specification |
Value |
| Product Type | Disposable Single Gas Detector |
| Gas Detected | Carbon Monoxide (CO) |
| Alarm Thresholds | Hi 35ppm / HiHi 200ppm |
| Dimensions | 3.7" x 2.2" x 1.3" (H x W x D) |
| Weight | 2.7 oz |
| Battery Type | Lithium Ion Battery |
| Battery Life | Approximately 2 years continuous operation (extendable to 3 years with hibernation mode) |
| Operating Temperature Range | -30°C to 50°C |
| Humidity Range | 5 to 95% R.H. (non-condensing) |
| IP Rating | IP66/67 (3rd-party tested) |
| Alarm Types | Visual (red LED), Audible (95dB), Vibrating |
| Display Features | Real-time readings, gas type, battery level, functional test status, bump test due indicator |
| Data Logging | Last 25 events with PC backup via infrared |
| Activation | One-button activation, non-reversible |
| Casing Material | Impact-absorbent rubber material |
| Accessories Included | Stainless steel alligator clip |
| Certifications | ETL/CETL (UL 913 7th, CSA C22.2 No. 157), ATEX II 1 G Ex ia IIC T4 GA, IECEx Ex ia IIC T4 GA, INMETRO BR-Ex d ia IIC T4, CE marked, EMC compliant |
| Explosive Atmosphere Rating | Class I Division 1 & 2, Groups A, B, C, and D |
| EMC/RFI Compliance | CE marked, EMC Directive (2004/108/EC) compliant |
| Maintenance Required | None - zero maintenance unit |
| Calibration Required | No calibration required |
| SKU | 2025938 |
| Manufacturer | Teledyne GMI (Scott Safety) |
Order Teledyne GMI Protege ZM CO Single Gas Detector Monitor at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
