Shop Legrand Synergy Switch Grid Module 2-Way 250V 20AX Brushed Stainless Steel | 832604 In Iraq Best Prices
Premium two-way switch with 20AX 250V rating, brushed stainless steel finish, flush-mounted design with screwed terminals for modern electrical installations

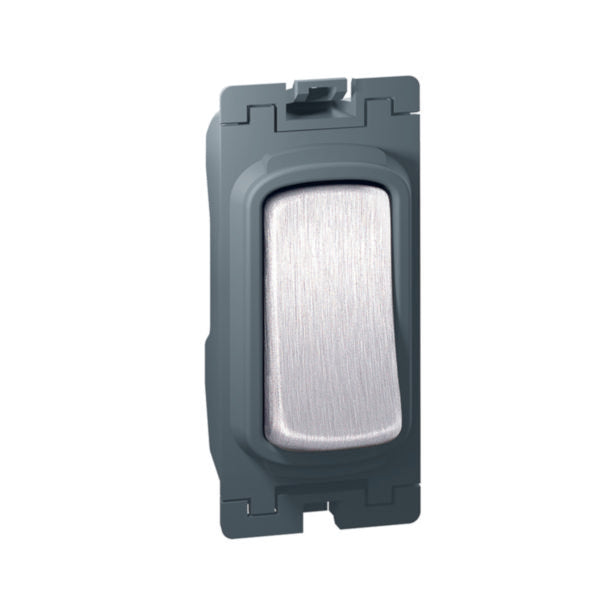

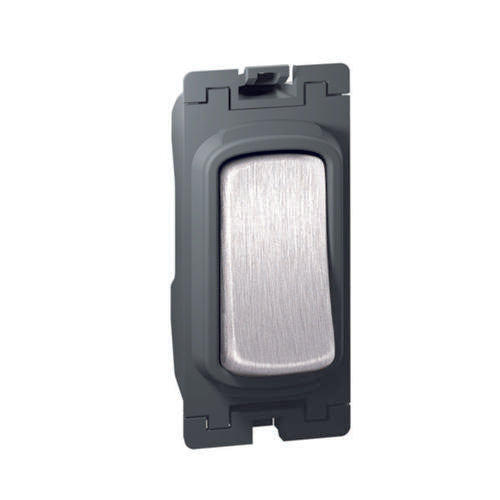

The Synergy™ Switch Grid module is a premium two-way electrical switch designed for modern residential and commercial applications. This single pole switch features a 20 AX rated current at 250V~ AC, making it suitable for standard lighting and electrical loads. The decorative rocker switch operator provides intuitive two-way switching functionality, allowing control from multiple locations. Constructed with brushed stainless steel material, this switch combines durability with contemporary aesthetic appeal, offering excellent corrosion resistance and a sophisticated metallic finish that complements any interior design.
This grid module features a flush-mounted installation method with screwed terminal connections for secure wiring. The device dimensions of 25.5mm width, 57.5mm height, and 30mm depth ensure compatibility with standard installation boxes requiring a minimum depth of 30mm. Operating across a temperature range of -5 to 40°C, this switch maintains reliable performance in various environmental conditions. The halogen-free construction meets modern environmental and safety standards, while the IP2X degree of protection ensures adequate protection against direct contact with internal components.
The Synergy™ collection represents Legrand's commitment to quality electrical infrastructure, offering seamless integration with existing wiring systems. With a cable section capacity of 4-4mm², this switch accommodates standard electrical installations. The brushed stainless steel finish provides both aesthetic sophistication and practical durability, resisting fingerprints and wear while maintaining its elegant appearance over time. This product is ideal for discerning customers seeking reliable, stylish electrical solutions.
Key Features
- Two-way switching functionality for multi-location control
- Brushed stainless steel construction with metallic finish
- 20 AX rated current at 250V~ AC for standard electrical loads
- Halogen-free material meeting environmental safety standards
- Flush-mounted design with screwed terminal connections
- IP2X degree of protection against direct contact
- Operating temperature range -5 to 40°C
- Compatible with 4-4mm² cable sections
Technical Specifications
| Specification |
Value |
| Product Type | Two-Way Switch Grid Module |
| Nominal Voltage | 250 V AC |
| Rated Current | 20 A |
| Switching Current | 20 AX for fluorescent lamps |
| Material | Stainless Steel |
| Material Quality | Brushed Stainless Steel |
| Surface Finishing | Glossy Metallic |
| Colour | Stainless Steel |
| Device Width | 25.5 mm |
| Device Height | 57.5 mm |
| Device Depth | 30 mm |
| Built-in Depth | 20.5 mm |
| Minimum Installation Box Depth | 30 mm |
| Mounting Method | Flush-mounted |
| Assembly Arrangement | Basic element with central cover plate |
| Method of Operation | Rocker/Button |
| Number of Rockers | 1 |
| Connection Type | Screwed Terminal |
| Cable Section | 4-4 mm² |
| Degree of Protection (IP) | IP2X |
| Degree of Impact Strength (IK) | IK01 |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -5 to 40 °C |
| Voltage Type | AC |
| Frequency | 50-60 Hz |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Push Button Switch | No |
| Monitoring Contact | No |
| Heating Switch | No |
| Washing Machine Switch | No |
| Lighting | No |
| HomeKit Compatible | No |
| Google Assistant Compatible | No |
| Amazon Alexa Compatible | No |
| IFTTT Support | No |
| Reference Number | 832604 |
| EAN Code | 3414970664105 |
| Brand | Legrand |
| Collection | Synergy™ |
