Shop Legrand Synergy Switch Grid Module 1-Way 250V 20AX Polished Stainless Steel | 832609 In Iraq Best Prices
Premium 1-way electrical switch with 20AX 250V capacity, polished stainless steel finish, rocker operation, and flush-mount installation for modern residential and commercial applications.

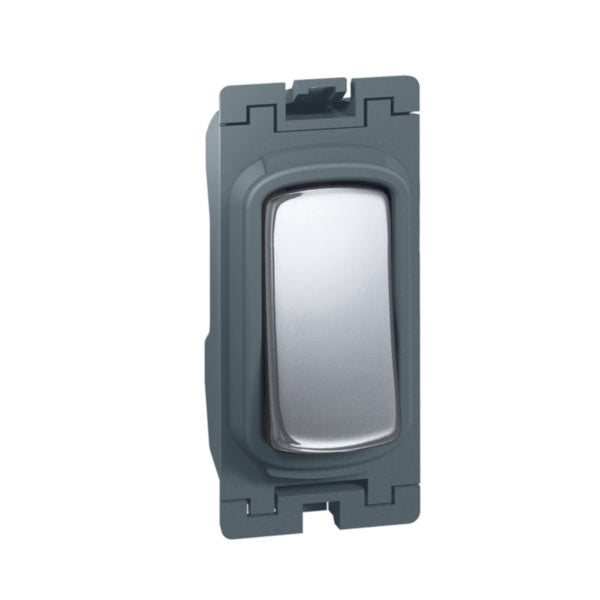

The Synergy™ Switch Grid module is a premium single pole electrical switch designed for modern residential and commercial applications. This 1-way switch features a 20 AX rated current capacity at 250V AC, making it suitable for standard lighting and general-purpose electrical circuits. Constructed from polished stainless steel, it combines durability with an elegant aesthetic that complements contemporary interior designs. The switch operates via a rocker/button mechanism and is designed for flush-mounted installation, providing a seamless integration into standard electrical boxes.
This professional-grade switch module meets stringent safety and performance standards, including halogen-free construction for environmental compliance. The device features screwed terminal connections for secure and reliable wiring, with a cable section rating of 4-4 mm². The polished stainless steel finish provides superior corrosion resistance and maintains its appearance over time. Operating across a temperature range of -5 to 40°C, this switch is suitable for diverse climatic conditions. The device dimensions of 25.5mm width, 57.5mm height, and 30mm depth ensure compatibility with standard electrical installation boxes.
The Synergy™ switch grid module represents Legrand's commitment to quality electrical infrastructure. With its IP2X degree of protection and IK01 impact strength rating, this switch provides reliable performance in typical domestic and light commercial environments. The basic element design with central cover plate allows for flexible installation configurations, while the stainless steel construction ensures longevity and minimal maintenance requirements.
Key Features
- Single pole 1-way switch with 20 AX rated current at 250V AC
- Polished stainless steel construction for superior corrosion resistance and elegant appearance
- Rocker/button operation mechanism for intuitive user control
- Flush-mounted installation compatible with standard electrical boxes
- Halogen-free construction meeting environmental compliance standards
- Screwed terminal connections for secure and reliable wiring
- Operating temperature range -5 to 40°C for diverse climatic conditions
- IP2X degree of protection and IK01 impact strength rating
- Basic element design with central cover plate for flexible configurations
- Professional-grade quality by Legrand
Technical Specifications
| Specification |
Value |
| Wiring System | Single pole switch |
| Method of Operation | Rocker/button |
| Rated Current | 20 A |
| Nominal Voltage | 250 V AC |
| Switching Current for Fluorescent Lamps | 20 AX |
| Number of Rockers | 1 |
| Mounting Method | Flush-mounted |
| Material | Stainless steel |
| Surface Finishing | Polished glossy |
| Colour | Polished stainless steel |
| Device Width | 25.5 mm |
| Device Height | 57.5 mm |
| Device Depth | 30 mm |
| Built-in Depth | 20.5 mm |
| Minimum Depth of Built-in Installation Box | 30 mm |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -5 to 40 °C |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Degree of Protection (IP) | IP2X |
| Degree of Impact Strength (IK) | IK01 |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Lighting | No |
| Monitoring Contact | No |
| Push Button Switch | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Reference Number | 832609 |
| EAN Code | 3414970664204 |
