Shop Legrand Synergy Switch Grid Module 1-Way 250V 20AX Brushed Stainless Steel | 832603 In Iraq Best Prices
Premium 1-way electrical switch with 20AX 250V capacity, brushed stainless steel finish, ideal for residential and commercial applications with reliable rocker mechanism and flush-mount installation.

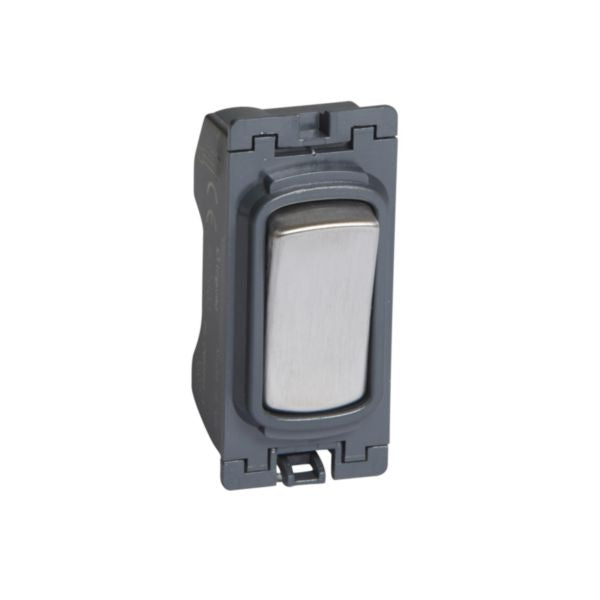

The Synergy™ Switch Grid module is a premium single-pole electrical switch designed for residential and commercial applications. This 1-way switch features a 20 AX rated current capacity at 250V AC, making it suitable for controlling standard lighting and electrical loads. Manufactured by Legrand, a global leader in electrical and digital building infrastructure, this switch combines functionality with aesthetic appeal through its brushed stainless steel finish. The switch operates using a rocker/button mechanism and is designed for flush-mounted installation in standard electrical boxes.
This switch module meets international safety standards and is engineered for reliable performance in demanding environments. The brushed stainless steel material provides superior durability and corrosion resistance, ensuring long-term functionality and maintaining its elegant appearance. With a rated voltage of 250V and switching current capacity of 20 AX for fluorescent lamps, this switch is ideal for both residential homes and commercial office spaces. The device features a compact design with dimensions of 25.5mm width, 57.5mm height, and 30mm depth, allowing for seamless integration into existing electrical installations.
The Synergy™ switch is constructed with halogen-free materials, reflecting modern environmental and safety standards. It operates reliably across a temperature range of -5°C to 40°C and supports cable sections from 4-4mm². The switch provides IP2X degree of protection and IK01 impact strength rating, ensuring safety in various installation environments. With its screwed terminal connection type and compatibility with standard electrical infrastructure, this switch represents an excellent choice for anyone seeking a reliable, stylish, and durable electrical switching solution.
Key Features
- Single-pole 1-way switch with 20 AX rated current at 250V AC for reliable electrical control
- Premium brushed stainless steel finish providing superior durability and corrosion resistance
- Rocker/button operation mechanism for intuitive and comfortable switching action
- Halogen-free construction meeting modern environmental and safety standards
- Compact flush-mount design compatible with standard electrical installation boxes
- IP2X degree of protection and IK01 impact strength for safe operation in various environments
- Screwed terminal connection type ensuring secure and reliable electrical connections
- Wide operating temperature range of -5°C to 40°C for versatile installation locations
- Suitable for both residential homes and commercial office spaces
- 20 AX switching current capacity for fluorescent lamps and standard lighting loads
Technical Specifications
| Specification |
Value |
| Product Type | Single-pole switch grid module |
| Wiring System | 1-way switch |
| Rated Voltage | 250V AC |
| Rated Current | 20 A |
| Switching Current for Fluorescent Lamps | 20 AX |
| Material | Stainless steel |
| Surface Finish | Brushed stainless steel |
| Operation Method | Rocker/button mechanism |
| Installation Type | Flush-mounted |
| Device Width | 25.5 mm |
| Device Height | 57.5 mm |
| Device Depth | 30 mm |
| Built-in Depth | 20.5 mm |
| Minimum Installation Box Depth | 30 mm |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Degree of Protection | IP2X |
| Impact Strength Rating | IK01 |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -5°C to 40°C |
| Voltage Type | AC (Alternating Current) |
| Frequency Range | 50-60 Hz |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Monitoring Contact | No |
| Lighting Function | No |
| Number of Rockers | 1 |
| Assembly Arrangement | Basic element with central cover plate |
| Mounting Method | Flush-mounted |
| Type of Fastening | Other |
| Reference Number | 832603 |
| EAN Code | 3414970664082 |
| Brand | Legrand |
| Product Series | Synergy™ |
