Shop Legrand Synergy Switch Grid Module 1-Way 250V 10AX Polished Stainless Steel | 832606 In Iraq Best Prices
Premium single-pole switch with polished stainless steel finish, 10A/250V rating, flush-mounted design, and reliable rocker operation for residential and commercial applications.

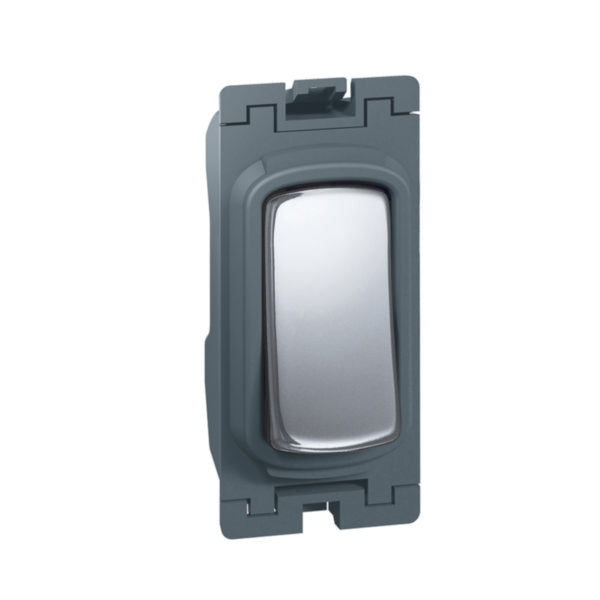

The Synergy™ Switch Grid module is a premium single-pole switch designed for modern residential and commercial applications. This decorative switch features a polished stainless steel finish that delivers an elegant and contemporary aesthetic to any interior. With a rated current of 10A at 250V AC, it provides reliable switching performance for standard lighting and general-purpose circuits. The switch employs a rocker/button operation method and is mounted flush into standard installation boxes, making it ideal for new constructions and renovations.
This single-pole switch is engineered with high-quality stainless steel material construction, ensuring durability and resistance to corrosion. The device measures 25.5mm in width, 57.5mm in height, and 30mm in depth, with a built-in depth of 20.5mm, making it compatible with standard electrical installation boxes. The switch operates reliably across a temperature range of -5°C to 40°C and supports both 50Hz and 60Hz frequencies, making it suitable for global applications. It features halogen-free construction for enhanced safety and environmental compliance.
The Synergy™ collection represents Legrand's commitment to combining functionality with sophisticated design. The polished stainless steel finish provides a premium appearance while maintaining practical performance standards. With screwed terminal connections for secure wiring and a minimum cable section capacity of 4mm², this switch is designed for professional installation and long-term reliability. The device meets IP2X protection standards and IK01 impact resistance ratings, suitable for protected indoor environments.
Key Features
- Single-pole switch with 1-way rocker/button operation for simple on/off control
- Polished stainless steel finish providing elegant contemporary aesthetic
- Rated for 10A at 250V AC with 10AX switching capacity for fluorescent lamps
- Halogen-free construction for enhanced safety and environmental compliance
- Flush-mounted design compatible with standard 30mm installation boxes
- Screwed terminal connections ensuring secure and reliable wiring
- Operates across -5°C to 40°C temperature range with 50-60Hz frequency support
- IP2X protection degree and IK01 impact resistance for protected indoor use
- Compact dimensions: 25.5mm width × 57.5mm height × 30mm depth
- Professional-grade construction by Legrand for long-term reliability
Technical Specifications
| Specification |
Value |
| Product Type | Single-pole switch grid module |
| Brand | Legrand - Synergy™ |
| Reference Number | 832606 |
| EAN Code | 3414970664143 |
| Nominal Voltage | 250V AC |
| Rated Current | 10A |
| Switching Current (Fluorescent Lamps) | 10AX |
| Operation Method | Rocker/button |
| Number of Rockers | 1 |
| Mounting Type | Flush-mounted |
| Material | Stainless steel |
| Material Quality | Polished stainless steel |
| Colour | Stainless steel |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Device Width | 25.5mm |
| Device Height | 57.5mm |
| Device Depth | 30mm |
| Built-in Depth | 20.5mm |
| Minimum Installation Box Depth | 30mm |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4mm² |
| IP Protection Degree | IP2X |
| Impact Strength Degree | IK01 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -5°C to +40°C |
| Frequency Support | 50-60Hz |
| Monitoring Contact | No |
| Push Button Switch | No |
| With Mounting Plate | No |
| Label Space/Information Surface | No |
| Lighting Function | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
| IFTTT Support | Not available |
