Shop Legrand Synergy Socket Outlet 1 Gang Switched 15A 250V Metalclad | 733889 In Iraq Best Prices
Premium British Standard 1 gang switched socket outlet with 15A capacity, patented safety shutter mechanism, and metalclad construction for reliable residential and commercial use.

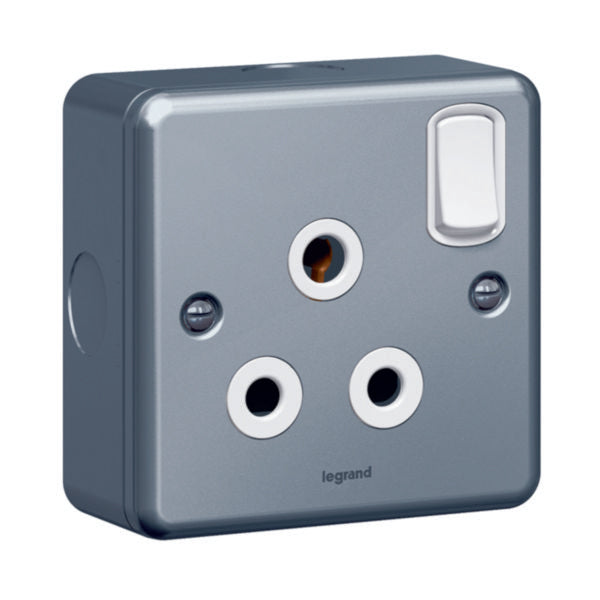

The Synergy™ Socket Outlet is a premium British Standard electrical accessory designed for residential and commercial applications. This 1 gang switched socket outlet features a robust metalclad construction with grey epoxy coated steel front plates, providing exceptional durability and aesthetic appeal. Compliant with BS 546:1950 standards, it delivers reliable performance with a rated capacity of 15A at 250V~, making it suitable for standard household and light commercial electrical loads.
This socket outlet incorporates advanced safety features including a patented 3-pin safety shutter mechanism that protects against accidental contact with live pins. The terminal screws are captive and backed off, ready for easy cabling with large angled terminal entries that accommodate flexible or rigid cables from 4-4 mm² cross-section. The unit features enhanced contact protection and is supplied complete with a close-fit 43mm deep surface-mounting back box, ensuring secure and professional installation.
The Synergy range is engineered for excellence with halogen-free materials, lacquered matt finish, and a loop-through function for convenient daisy-chaining of multiple outlets. Operating temperature range of -5 to 40°C ensures reliable performance in various environmental conditions. With its IP2X protection rating and IK01 impact strength, this socket outlet meets stringent safety and quality standards, making it an ideal choice for discerning customers seeking premium electrical solutions.
Key Features
- Patented 3-pin safety shutter mechanism for enhanced protection against accidental contact
- British Standard BS 546:1950 compliant design ensuring reliability and compatibility
- Metalclad construction with grey epoxy coated steel front plates for durability
- Captive and backed-off terminal screws with large angled entries for easy installation
- Loop-through function enabling convenient daisy-chaining of multiple outlets
- Halogen-free materials supporting environmental sustainability
- Enhanced contact protection for superior safety performance
- IP2X protection rating suitable for standard indoor installations
- Supplied with close-fit 43mm deep surface-mounting back box
- Wide operating temperature range -5 to 40°C for versatile applications
Technical Specifications
| Specification |
Value |
| Product Name | Synergy Socket Outlet 1 Gang Switched |
| Reference Number | 733889 |
| EAN Code | 3245067338896 |
| Standard | British Standard BS 546:1950 |
| Rated Current | 15 A |
| Rated Voltage | 250 V~ |
| Frequency | 50-60 Hz |
| Number of Gangs | 1 gang |
| Number of Socket Outlets | 1 |
| Switchable Outlets | 1 |
| Number of Active Contacts | 2 round pins |
| Protective Contact Type | Round |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Material | Metal with epoxy coated steel |
| Colour | Grey |
| Surface Finishing | Matt lacquered |
| Mounting Method | Surface mounted |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 42.7 mm |
| Back Box Depth | 43 mm |
| Plate Dimensions | 86 x 86 mm nominal |
| IP Protection Rating | IP2X |
| Impact Strength Rating | IK01 |
| Operating Temperature | -5 to 40 °C |
| Storage Temperature | -5 to 40 °C |
| Voltage Type | AC |
| Safety Features | Patented 3-pin safety shutter mechanism, enhanced contact protection |
| Halogen Free | Yes |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not supported) |
| Assembly Type | Basic element with full cover plate |
| Number of Modules | 2 |
| Concurrently Switching Neutral | No |
| Imprint/Indication | Other |
