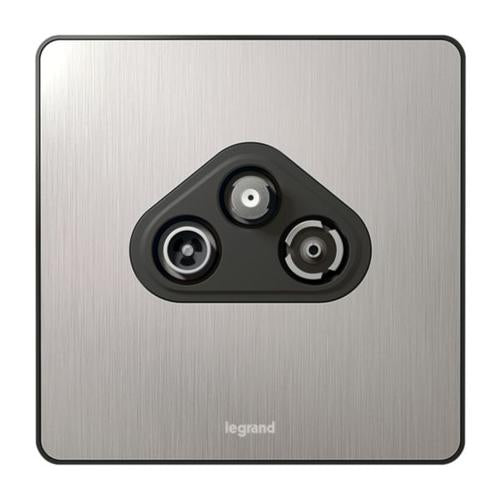

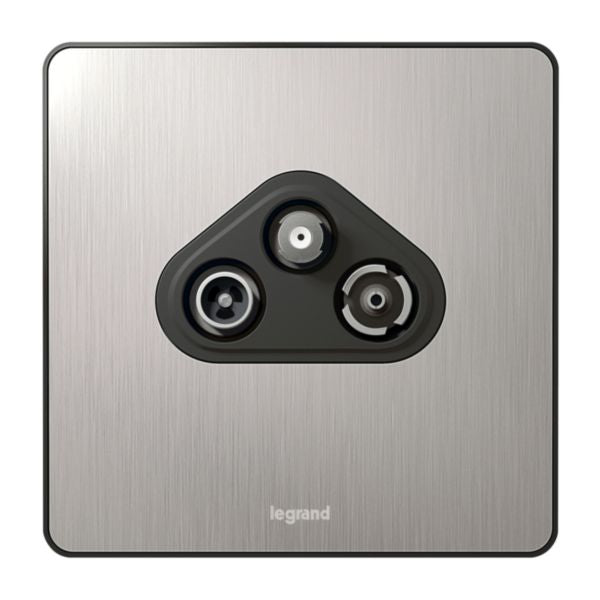

Shop Legrand Synergy Sleek TV-R-SAT Socket Brushed Stainless Steel | 832043 In Iraq Best Prices
Premium triple TV-R-SAT socket with Class A certified shielding, brushed stainless steel finish, and optimized performance for 4K/UHD televisions. Features low attenuation, intuitive installation, and protection against 3G/4G/5G interference.
The Synergy™ Sleek TV-R-SAT socket is a premium triple outlet solution designed for modern UHD and 4K television installations. This advanced socket combines three separate connectors - TV (male diameter 9.5mm), R (female connector diameter 9.5mm), and SAT (F type connector) - into one elegant brushed stainless steel unit. Manufactured by Legrand, this socket features Class A certified shielding that protects against interference from modern mobile signals including 3G, 4G, and 5G technologies, ensuring optimal picture and sound quality without pixelation or image jamming. The device incorporates sophisticated cable management with low attenuation of just 1dB maximum, guaranteeing superior signal reception across all frequency bands.
Designed for intuitive installation and user experience, the Synergy™ Sleek socket features a screwless square cover plate measuring 86x86mm with a slim 4mm profile once installed. The terminal block is strategically positioned in the center of the mechanism for easy cable insertion and quick connections. The product is delivered complete with screws suitable for both plastic and metal flush-mounted boxes, making installation straightforward for professionals. The brushed stainless steel Grade 304L material provides durability, non-magnetic properties, and an elegant aesthetic that complements modern interior designs.
This socket is optimized for new television technologies and delivers exceptional performance across a wide frequency range from 87.5-240 MHz for standard TV signals and 950-2400 MHz for satellite signals. With an IP21 protection rating and IK04 impact resistance, it ensures reliable performance in residential environments. The product operates effectively between 5-45°C and includes halogen-free construction for environmental compliance and safety.
Key Features
- Class A certified shielding protects against 3G, 4G, and 5G mobile signal interference
- Triple outlet configuration: TV (9.5mm male), R (9.5mm female), and SAT (F type connector)
- Optimized for UHD and 4K television signal reception with minimal attenuation
- Brushed stainless steel Grade 304L non-magnetic material with elegant aesthetic design
- Screwless square cover plate (86x86mm) with slim 4mm installation profile
- Low attenuation of 1dB maximum ensures superior signal quality
- Intuitive cable insertion design with centrally positioned terminal block
- Delivered with installation screws for both plastic and metal flush-mounted boxes
- Wide frequency range support: 87.5-240 MHz (TV) and 950-2400 MHz (SAT)
- IP21 protection rating and IK04 impact resistance for reliability
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Product Line | Synergy™ Sleek |
| Reference Number | 832043 |
| EAN Code | 3414970660725 |
| Socket Type | TV/R/SAT End Socket |
| TV Connector | Male diameter 9.5mm |
| R Connector | Female connector diameter 9.5mm |
| SAT Connector | F type connector |
| Number of Outlets | 3 |
| Mounting Method | Flush-mounted |
| Cover Plate Type | Screwless square, 86x86mm |
| Device Depth | 37mm (4mm profile when installed) |
| Minimum Built-in Box Depth | 28mm |
| Material | Austenitic stainless steel Grade 304L |
| Finish | Brushed stainless steel |
| Attenuation at 860 MHz | 1.5 dB |
| Attenuation at 2150 MHz | 2 dB |
| Maximum Attenuation | 1dB max |
| TV Frequency Band | 87.5-240 MHz |
| SAT Frequency Band | 950-2400 MHz |
| DAB+ Support | Yes |
| Cable Modem Compatible | No |
| Remote Power Supply Compatible | Yes |
| Degree of Protection (IP) | IP21 |
| Impact Strength (IK) | IK04 |
| Shielding Certification | Class A certified |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Suitable for 4K/UHD | Yes |
| Installation Type | Basic element with full cover plate |
| Included Accessories | Screws for plastic and metal flush boxes |
| Recommended Use | Indoor use only |
| Magnetic Properties | Non-magnetic |
Order Legrand Synergy Sleek TV-R-SAT Socket Brushed Stainless Steel | 832043 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
