Shop Legrand Synergy Sleek Single Male TV Socket Brushed Stainless Steel | 832040 In Iraq Best Prices
Premium single male TV socket with brushed stainless steel finish, low-attenuation design, and toolless installation for professional residential and commercial applications.

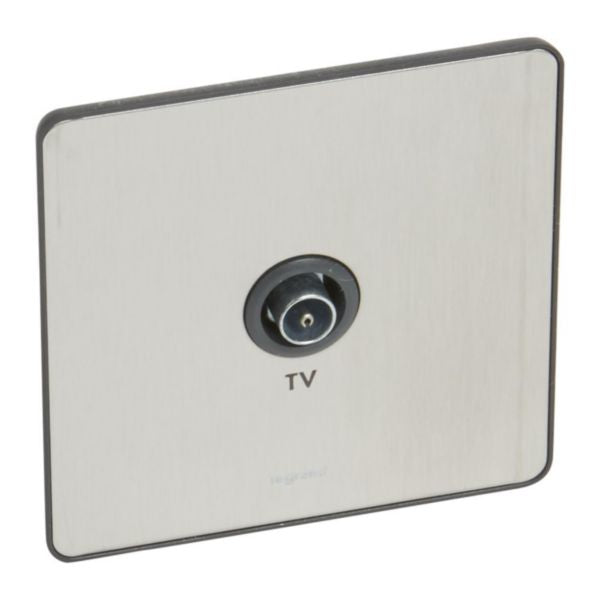

The Synergy™ Sleek single male TV socket is a premium-grade television outlet designed for professional installation in both residential and commercial applications. Manufactured by Legrand, this socket features a brushed stainless steel finish (Grade 304L austenitic stainless steel) that is non-magnetic and provides exceptional durability and aesthetic appeal. The socket is specifically engineered for TV signal distribution with a male connector diameter of 9.5mm and incorporates advanced low-attenuation technology with a maximum signal loss of just 1dB at standard frequencies.
This flush-mounted TV socket utilizes star cabling configuration, meaning each socket requires a dedicated cable connection to the antenna, splitter, or multiswitch, ensuring optimal signal quality and reliability. The product comes complete with a screwless square cover plate measuring 86x86mm with a total installed thickness of 4mm, providing a sleek and modern appearance. Installation is toolless and straightforward, with the mechanism and cover plate integrated into one complete unit. The socket is delivered with all necessary screws compatible with both plastic and metal flush and surface mounting boxes.
Designed with quality and longevity in mind, the Synergy™ Sleek TV socket is manufactured in the UK and meets all relevant European standards. It features a degree of protection rating of IP21 and impact strength rating of IK04, making it suitable for standard indoor environments. The socket supports remote power supply capability and is halogen-free, complying with environmental regulations. Operating temperature range is 5-45°C with a storage temperature range of -25-70°C, ensuring reliable performance across various climate conditions.
Key Features
- Low attenuation technology with maximum 1dB signal loss at standard frequencies
- Premium brushed stainless steel Grade 304L non-magnetic finish
- Toolless installation with integrated screwless cover plate
- Star cabling configuration for optimal signal quality and reliability
- Made in UK with full compliance to European standards
- Compatible with both plastic and metal mounting boxes
- Halogen-free and environmentally compliant design
- Remote power supply capable socket outlet
Technical Specifications
| Specification |
Value |
| Product Type | Single Male TV Socket |
| Model | Synergy™ Sleek - End Socket |
| Connector Diameter | 9.5mm male connector |
| Material | Austenitic Stainless Steel Grade 304L (brushed finish) |
| Cover Plate Dimensions | 86mm x 86mm square |
| Device Depth | 37mm total thickness (4mm installed) |
| Minimum Built-in Installation Box Depth | 28mm |
| Signal Attenuation at 860 MHz | 1dB maximum |
| Signal Attenuation at 2150 MHz | 1.5dB maximum |
| Number of Outlets | 1 outlet |
| Mounting Method | Flush-mounted |
| Installation Type | Toolless installation |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5°C to 45°C |
| Storage Temperature Range | -25°C to 70°C |
| Halogen Free | Yes |
| Remote Power Supply Compatible | Yes |
| Cable Modem Compatible | No |
| DAB+ Compatible | No |
| Antimicrobial Treatment | No |
| Manufacturing Origin | Made in UK |
| SKU/Reference | 832040 |
| EAN Code | 3414970660688 |
Order Legrand Synergy Sleek Single Male TV Socket Brushed Stainless Steel | 832040 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
