Shop Legrand Synergy Sleek Single F-Type TV Socket Polished Stainless Steel | 832241 In Iraq Best Prices
Premium single F-type satellite TV socket with low attenuation performance, polished stainless steel finish, toolless installation, and UK manufacturing for professional residential and commercial use.

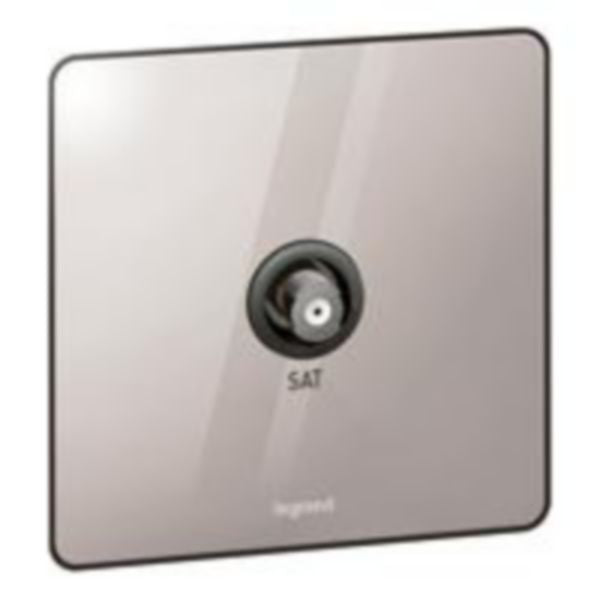

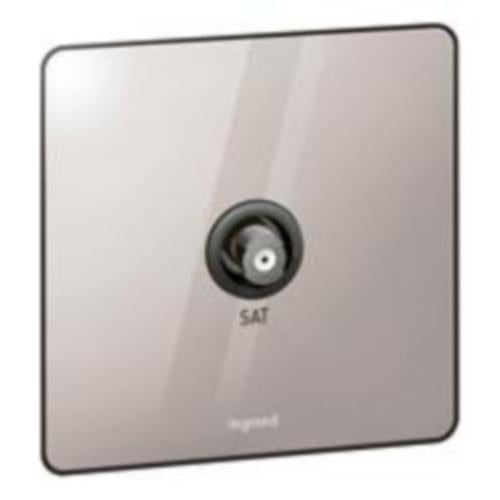

The Synergy Sleek single F-type TV socket is a premium satellite receiver outlet designed for professional installation in residential and commercial environments. This socket features low attenuation performance with a maximum of 1dB at 860 MHz and 1.5dB at 2150 MHz, ensuring superior signal quality for satellite television reception. The product utilizes star cabling configuration where each socket connects directly to an antenna, splitter, or multiswitch, providing optimal signal distribution and minimal signal loss.
Manufactured in the United Kingdom with ferritic stainless steel Grade 430 and chromium plating, this socket offers exceptional corrosion resistance and an elegant polished stainless steel finish. The screwless cover plate features a square design measuring 86x86 mm with a 4mm installation depth, providing a sleek, modern aesthetic that complements contemporary interior designs. The complete product includes both the mechanism and cover plates which clip directly onto the installation base, eliminating the need for separate components.
This socket is specifically designed for flush-mounted installation in both plastic and metal boxes, with included screws for secure mounting. The toolless installation system simplifies the setup process, making it ideal for professional installers and certified electricians. With an IP21 degree of protection and IK04 impact strength rating, this socket is suitable for indoor use only and operates reliably within a temperature range of 5-45°C. The product is halogen-free and RoHS compliant, meeting all current environmental and safety standards for electrical installations.
Key Features
- Low attenuation performance with maximum 1dB at 860 MHz and 1.5dB at 2150 MHz for superior signal quality
- Star cabling configuration with one socket connecting directly to antenna, splitter, or multiswitch
- Premium ferritic stainless steel Grade 430 with chromium plating for enhanced corrosion resistance
- Toolless installation system simplifying setup for professional installers and electricians
- Screwless square cover plate measuring 86x86 mm with 4mm installation depth for sleek modern aesthetic
- Complete product includes mechanism and cover plates clipped directly onto installation base
- Suitable for remote power supply and compatible with satellite receiver systems
- IP21 degree of protection and IK04 impact strength rating for reliable indoor performance
- Halogen-free and RoHS compliant meeting current environmental and safety standards
- Made in UK with included screws for both plastic and metal box installation
Technical Specifications
| Specification |
Value |
| Product Type | F-type Satellite TV Socket |
| Model | End Socket - SAT |
| Reference Number | 832241 |
| EAN Code | 3414970661906 |
| Brand | Legrand Synergy Sleek |
| Connector Type | F screw-type connector for satellite |
| Attenuation at 860 MHz | 1 dB maximum |
| Attenuation at 2150 MHz | 1.5 dB maximum |
| Cabling Configuration | Star cabling - 1 socket = 1 cable to antenna, splitter or multiswitch |
| Mounting Method | Flush-mounted |
| Assembly Arrangement | Basic element with full cover plate |
| Number of Outlets | 1 |
| Cover Plate Design | Screwless square design |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 37 mm |
| Installation Depth | 4 mm once installed on wall |
| Minimum Built-in Installation Box Depth | 28 mm |
| Material | Ferritic Stainless Steel Grade 430 with chromium plating |
| Finish | Polished Stainless Steel |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| Suitable for Cable Modem | No |
| Suitable for Remote Power Supply | Yes |
| DAB+ Compatible | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| RoHS Compliant | Yes |
| Installation Method | Toolless installation |
| Included Components | Screws for flush and surface boxes in plastic and metal |
| Recommended Use | Inside use only |
| Country of Manufacture | United Kingdom |
| Warranty | Legrand standard product warranty |
