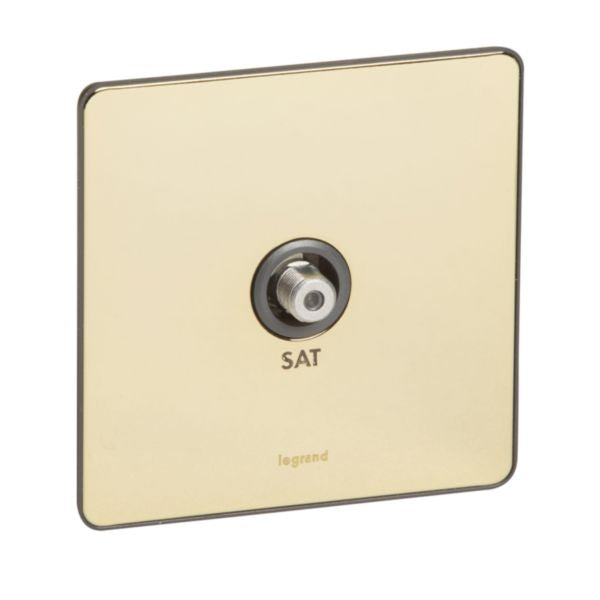

Shop Legrand Synergy Sleek Single F Type TV Socket Glossy Gold | 832441 In Iraq Best Prices
Premium Synergy Sleek single F-type satellite TV socket with Glossy Gold finish. Features low attenuation design, stainless steel construction, toolless installation, and IP21 protection rating for reliable indoor television reception.
The Synergy™ Sleek single F-type TV socket in Glossy Gold is a premium satellite television outlet designed for modern homes and buildings. This high-quality socket features a robust F screw-type connector specifically engineered for satellite reception with minimal signal loss. The product utilizes star cabling architecture where each socket connects directly to the antenna, splitter, or multiswitch, ensuring optimal signal integrity and performance. With a maximum attenuation of just 1dB at 860 MHz, this socket maintains excellent signal quality for crystal-clear television reception.
This flush-mounted socket is manufactured in the UK using premium Stainless Steel Grade 430 with chromium plating, providing superior corrosion resistance and an elegant aesthetic finish. The screwless cover plate measures 86x86 mm with a slim 4mm installation depth, making it compatible with most standard flush and surface mounting boxes. The product comes complete with installation screws for both plastic and metal boxes, offering toolless installation for convenience. It features an IP21 degree of protection and IK04 impact strength rating, ensuring durability in residential and commercial environments.
The Synergy™ Sleek socket is specifically designed for satellite reception and is recommended for indoor use only. Operating temperature range of 5-45°C ensures reliable performance in typical indoor conditions. This premium socket combines functionality with sophisticated design, making it an ideal choice for modern interior installations where both performance and aesthetics are paramount.
Key Features
- F screw-type connector for satellite reception with low signal attenuation of 1dB maximum
- Star cabling architecture ensuring direct connection from socket to antenna or multiswitch
- Stainless Steel Grade 430 construction with chromium plating for superior corrosion resistance
- Toolless installation with complete mounting hardware for both plastic and metal boxes
- Compact 86x86mm screwless cover plate with only 4mm installation depth
Technical Specifications
| Specification |
Value |
| Product Type | Single F-Type TV Socket |
| Connector Type | F screw-type connector for satellite |
| Socket Model | End socket SAT |
| Attenuation at 860 MHz | 1 dB maximum |
| Attenuation at 2150 MHz | 1.5 dB |
| Mounting Method | Flush-mounted |
| Cover Plate Dimensions | 86 x 86 mm |
| Installation Depth | 4 mm |
| Minimum Box Depth Required | 28 mm |
| Material | Stainless Steel Grade 430 with chromium plating |
| Color | Glossy Gold |
| IP Protection Rating | IP21 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5°C to 45°C |
| Storage Temperature Range | -25°C to 70°C |
| Halogen Free | Yes |
| Number of Outlets | 1 |
| Cabling Type | Star cabling |
| Remote Power Supply Compatible | Yes |
| Suitable for Cable Modem | No |
| Installation Type | Toolless installation |
| SKU | 832441 |
| EAN Code | 3414970663108 |
| Brand | Legrand |
| Product Line | Synergy Sleek |
