Shop Legrand Synergy Sleek Design 1 Gang USB C 18W Charger Outlet | 832273A In Iraq Best Prices

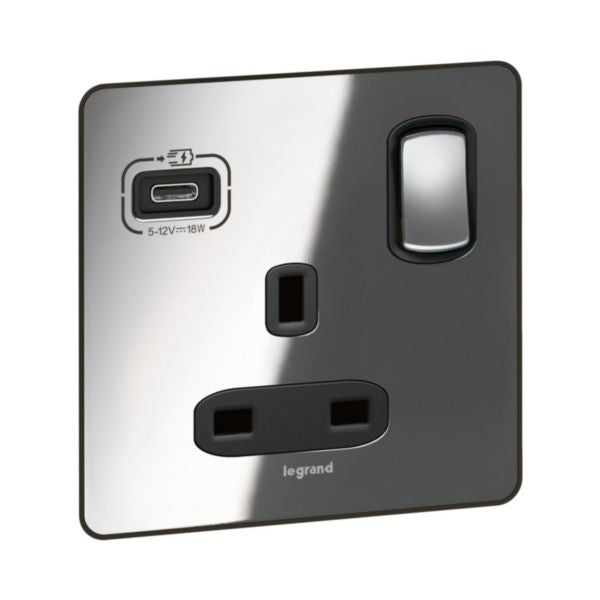

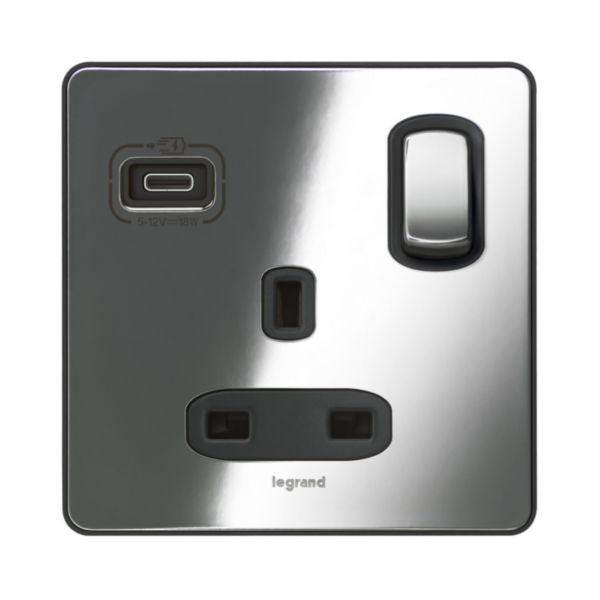

Premium 1 gang switched outlet with integrated 18W USB Type-C charger in polished stainless steel. British Standard BS1363 compliant with enhanced safety shutters and screw terminals. Ready-to-install monobloc design manufactured in the UK.
The Synergy Sleek Design 1 gang single pole switched outlet with USB C 18W charger combines modern functionality with elegant design. This premium switched socket outlet features a polished stainless steel finish that provides superior rust resistance and durability. The product integrates a powerful 18W USB Type-C charger directly into the outlet, allowing convenient charging of modern USB devices while maintaining full power outlet functionality. This is a complete monobloc product that arrives ready-to-install, featuring screw-type terminals for secured and enhanced electrical contacts.
Designed according to British Standard BS1363 specifications, this outlet delivers 2P+E configuration at 13A, 250V, ensuring safe and reliable power distribution. The USB charger conforms to international standards IEC62368 and IEC62680, guaranteeing compatibility with a wide range of devices. The square cover plate measures 86x146mm with a product thickness of 7mm when installed on the wall. Safety features include enhanced contact protection and integrated safety shutters to maximize child protection.
Manufactured in the UK, this Synergy outlet comes delivered with screws suitable for both flush and surface mounting in plastic and metal boxes. The strip length indicator helps avoid unnecessary wire waste during installation, while backed-off terminal screws facilitate easy cabling. With its combination of two-in-one functionality, premium materials, and reliable British design, this outlet is ideal for modern residential and commercial spaces requiring convenient device charging alongside standard power access.
Key Features
- Integrated 18W USB Type-C charger for convenient device charging
- Polished stainless steel finish with superior rust resistance
- Enhanced safety shutters for maximum child protection
- British Standard BS1363 compliant with 13A, 250V rating
- Screw-type terminals for secured and enhanced electrical contacts
- Strip length indicator to minimize wire waste
- Ready-to-install monobloc design
- Manufactured in the UK with premium quality assurance
- Suitable for both flush and surface mounting
- IP2X degree of protection with IK02 impact strength
Technical Specifications
| Specification |
Value |
| Product Reference | 832273A |
| EAN Code | 3414972428712 |
| Standard | British Standard BS1363 |
| Voltage Rating | 250V AC |
| Current Rating | 16A nominal, 13A socket outlet |
| Frequency | 50-60 Hz |
| Configuration | 2P+E single pole switched outlet |
| USB Charger Output | 18W USB Type-C with Power Delivery |
| USB Charger Current | 3A maximum |
| Number of Socket Outlets | 3 (1 switchable outlet + 2 USB ports equivalent) |
| Connection Type | Screw terminals |
| Terminal Capacity | 1-4 mm² flexible or rigid cable |
| Cover Plate Dimensions | 86 x 146 mm (square) |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 32.9 mm |
| Built-in Depth | 22.4 mm |
| Minimum Installation Box Depth | 35 mm |
| Product Thickness (When Installed) | 7 mm |
| Material | Thermoplastic |
| Color | Polished Stainless Steel Chrome |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Degree of Protection | IP2X |
| Impact Strength | IK02 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -20°C to +70°C |
| Contact Protection | Enhanced contact protection with safety shutters |
| Mounting Method | Flush-mounted |
| Compliance Standards | BS1363, IEC62368, IEC62680 |
| Manufacturing Origin | Made in UK |
| Installation Type | Ready-to-install monobloc product |
| Number of Modules | 2 |
| With On/Off Switch | Yes |
| With Function Lighting | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
