Description

Shop Legrand Synergy Sleek 2 Gang Switched Double Pole BS Socket 13A Stainless Steel | 832270 In Iraq Best Prices

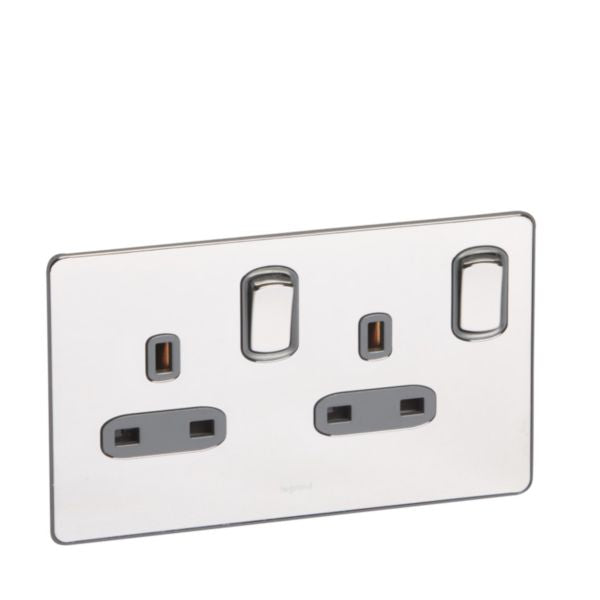

Premium 2-gang switched BS socket outlet 13A with polished stainless steel finish, safety shutters, and screw-type terminals for enhanced security and reliability.

The Synergy™ Sleek 2 gang switched double pole BS socket outlet 13A in Polished Stainless Steel is a premium electrical outlet designed for modern homes and commercial spaces. This British Standard compliant socket features a sleek polished stainless steel finish with Grade 430 ferritic stainless steel construction, providing superior corrosion resistance and an elegant appearance. The outlet is manufactured in the UK and incorporates screw-type terminals for enhanced contact security and reliability. This dual socket outlet includes integrated safety features such as protective shutters to maximize child protection and safety. The switched design allows safe disconnection of electrical appliances, making it ideal for controlling power to devices. With a nominal current rating of 13A at 250V, this outlet is suitable for a wide range of household and commercial applications. The product features a strip length indicator on the terminals to minimize wire waste during installation, and mounting screws are provided for both flush and surface boxes in plastic and metal configurations. The Synergy™ Sleek range combines functionality with aesthetic appeal, featuring plate and switch rockers made from the same high-quality stainless steel material. The device dimensions of 146mm width by 86mm height with a 4mm profile thickness ensure a modern, streamlined appearance once installed. This outlet is recommended for inside use only and conforms to BS1363-2 standards with ASTA Licence certification, guaranteeing compliance with British electrical safety standards.

Key Features

Switched 2x2P+E British Standard socket outlet 13A, 250V with BS1363-2 compliance and ASTA Licence certification
Polished stainless steel Grade 430 ferritic construction with chromium plating for superior corrosion resistance and elegant finish
Screw-type terminals for secured and enhanced electrical contacts with strip length indicator to minimize wire waste
Integrated safety shutters for maximum child protection and safe disconnection of electrical appliances
Made in UK with mounting screws provided for both flush and surface boxes in plastic and metal configurations

Technical Specifications

Specification	Value
Product Type	2 Gang Switched Double Pole BS Socket Outlet
Nominal Current	13 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Standard Compliance	BS1363-2, ASTA Licence
Material	Stainless Steel Grade 430 (Ferritic) with Chromium Plating
Colour	Polished Stainless Steel
Device Width	146 mm
Device Height	86 mm
Device Depth	29 mm
Built-in Depth	25 mm
Installation Profile Thickness	4 mm
Number of Socket Outlets	2
Number of Modules	4
Connection Type	Screwed Terminal
Cable Section	6-6 mm²
Protective Contact	Flat
Number of Active Contacts (Flat)	4
Concurrently Switching Neutral Conductor	Yes
Assembly Arrangement	Basic Element with Full Cover Plate
Mounting Method	Flush-mounted
Type of Fastening	Mounting with Screw
IP Rating	IP2X
Impact Strength Rating	IK01
Operating Temperature Range	-5 to 40°C
Storage Temperature Range	-5 to 40°C
Voltage Type	AC
Halogen Free	Yes
Surface Protection	Metallic
Surface Finishing	Glossy
With On/Off Switch	Yes
With Loop Through Function	Yes
Safety Features	Safety Shutters for Child Protection
Reference Number	832270
EAN Code	3414970662224
Manufacturing Country	United Kingdom
Recommended Use	Inside Use Only

Order Legrand Synergy Sleek 2 Gang Switched Double Pole BS Socket 13A Stainless Steel | 832270 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
