Shop Legrand Synergy SAT Socket Single Screened F Type Metalclad 733841 | 733841 In Iraq Best Prices
Premium single screened F-type SAT socket with metalclad finish, designed for satellite television reception. Features captive terminal screws, halogen-free construction, and RoHS compliance. Ideal for residential and commercial installations with minimal signal loss.

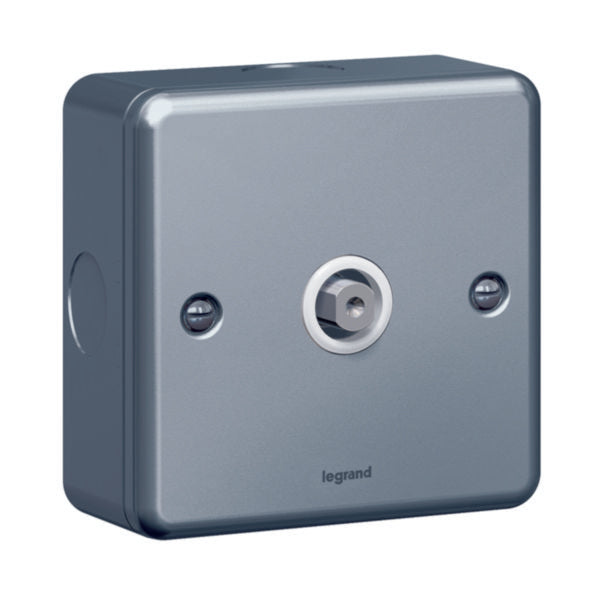

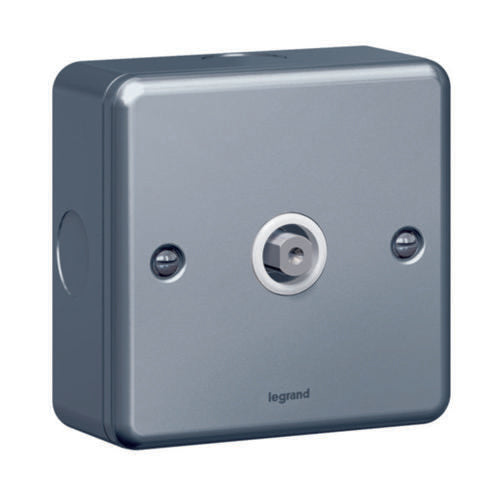

The Synergy™ SAT socket is a premium television satellite outlet designed for flush-mounting installation in modern residential and commercial spaces. This single screened F-type socket features a metalclad construction with grey epoxy coated steel front plates, ensuring durability and aesthetic appeal. The socket is supplied complete with a close-fit 43mm deep surface-mounting back box, making installation straightforward and professional. The terminal screws are captive and backed off ready for cabling, with large angled terminal entries that facilitate easy cable management and secure connections.
This SAT socket is specifically engineered for satellite television reception with exceptional signal integrity. The screened design minimizes electromagnetic interference, providing tap loss of only 1 dB at 860 MHz and 1.5 dB at 2150 MHz, ensuring optimal picture and sound quality. The device maintains an IP21 degree of protection and IK04 impact strength rating, making it suitable for various installation environments. With halogen-free materials and compliance with RoHS directives, this product meets modern environmental and safety standards. The socket operates reliably across a temperature range of 5-45°C and includes remote power supply capability for enhanced functionality.
The Synergy range represents Legrand's commitment to quality British Standard wiring devices that combine functionality with contemporary design. Each outlet is manufactured to exacting standards, featuring nominal plate dimensions of 86 x 86 mm and a device depth of 33 mm for seamless integration into standard electrical installations. The product is ideal for home theater installations, commercial television systems, and any application requiring reliable satellite signal distribution.
Key Features
- Single screened F-type satellite socket for optimal signal reception
- Metalclad construction with grey epoxy coated steel front plates for durability
- Captive and backed-off terminal screws ready for easy cabling
- Low tap loss: 1 dB at 860 MHz and 1.5 dB at 2150 MHz for superior signal quality
- Halogen-free materials with RoHS compliance and remote power supply capability
- IP21 protection degree and IK04 impact strength rating
- Complete with 43mm deep surface-mounting back box for flush installation
- Standard 86 x 86 mm plate dimensions compatible with British Standard installations
- Operating temperature range of 5-45°C for reliable performance
- Suitable for home theater, commercial television systems, and satellite distribution
Technical Specifications
| Specification |
Value |
| Product Model | Synergy™ SAT Socket - Single Screened F Type |
| Socket Type | SAT (Satellite Television) |
| Mounting Method | Flush-mounted with 43mm deep surface-mounting back box |
| Material Construction | Metalclad with grey epoxy coated steel front plates |
| Number of Outlets | 1 (Single socket) |
| Tap Loss at 860 MHz | 1 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Plate Dimensions | 86 x 86 mm (nominal) |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 33 mm |
| Minimum Installation Box Depth | 40 mm |
| Degree of Protection (IP) | IP21 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Halogen Free | Yes |
| Remote Power Supply Compatible | Yes |
| Cable Modem Suitable | No |
| DAB+ Compatible | No |
| Antimicrobial Treatment | No |
| Standards Compliance | British Standard, RoHS Directive |
| Reference Number (REF) | 733841 |
| EAN Code | 3245067338414 |
