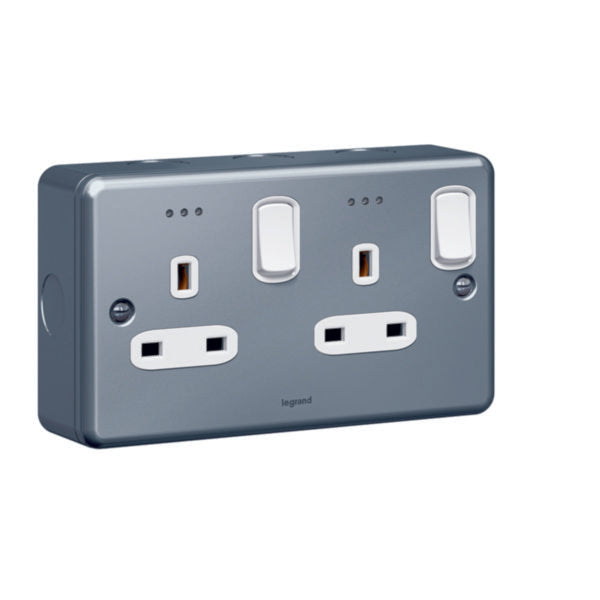

Shop Legrand Synergy Double Pole Socket Outlet 2 Gang Switched LED 13A 250V Metalclad | 733871 In Iraq Best Prices
Premium British Standard double pole socket outlet with 2-gang switched design, red LED indicator, 13A 250V rating, metalclad finish, and enhanced safety features for residential and commercial use.
The Synergy™ Double Pole Socket Outlet is a premium British Standard electrical socket designed for modern residential and commercial applications. This 2-gang switched outlet features advanced safety mechanisms including a safety shutter system and protective contact design that conforms to BS 1363 Part 2: 1995 standards. The unit incorporates a red LED power indicator for visual confirmation of power status, making it ideal for applications where power monitoring is essential.
Constructed with high-quality materials, this socket outlet features grey epoxy-coated steel front plates and captive, backed-off terminal screws designed for secure and efficient cabling. The large angled terminal entries facilitate easy installation and maintenance. The metalclad design provides enhanced durability and aesthetic appeal suitable for various interior environments. With a nominal rating of 13A at 250V~, this outlet handles standard household and light commercial power requirements effectively.
The product comes complete with a close-fit 43mm deep surface-mounting back box, ensuring proper installation and protection. The flush-mounting capability with minimum 25mm deep back box provides flexibility in installation options. The halogen-free construction meets environmental compliance standards, and the device features loop-through functionality allowing for daisy-chain installation. This socket outlet represents the perfect balance of safety, functionality, and aesthetic design for contemporary electrical installations.
Key Features
- British Standard BS 1363 Part 2: 1995 compliant double pole socket outlet
- 2-gang switched configuration with red LED power indicator for visual status confirmation
- Advanced safety shutter mechanism with protective flat contacts
- Grey epoxy-coated steel metalclad construction for durability and aesthetics
- Captive backed-off terminal screws with large angled entries for secure installation
- Loop-through functionality enabling daisy-chain installation capability
- Halogen-free construction meeting environmental compliance standards
- Complete with 43mm deep surface-mounting back box for proper protection
- Flush-mounting compatible with minimum 25mm deep back box option
- Rated 13A at 250V~ for standard household and light commercial applications
Technical Specifications
| Specification |
Value |
| Product Model | Synergy™ Double Pole Socket Outlet 2 Gang Switched + LED |
| Standard Compliance | British Standard BS 1363 Part 2: 1995 |
| Nominal Current | 13 Amperes (A) |
| Nominal Voltage | 250 Volts AC (~) |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 Gang |
| Number of Modules | 4 Modules |
| Number of Active Contacts (Flat) | 4 Contacts |
| Number of Switchable Outlets | 2 Outlets |
| Protective Contact Type | Flat Protective Contacts |
| Safety Features | Safety Shutter Mechanism with Enhanced Contact Protection |
| Power Indicator | Red LED Power Indicator with Function Lighting |
| Concurrently Switching | Yes - Neutral Conductor Switching |
| Connection Type | Screwed Terminal |
| Cable Section | 4-4 mm² (Flexible or Rigid) |
| Material | Metal - Grey Epoxy-Coated Steel |
| Surface Finishing | Matt Lacquered |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Loop Through Function | Yes - Daisy-Chain Installation Capable |
| On/Off Switch | Yes - Integrated Switch |
| Mounting Method | Surface Mounted |
| Type of Fastening | Mounting with Screw |
| Degree of Protection (IP) | IP2X |
| Degree of Impact Strength (IK) | IK01 |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 47.4 mm |
| Nominal Plate Dimensions | 86 x 146 mm |
| Back Box Depth (Surface Mounted) | 43 mm (Close-fit) |
| Back Box Depth (Flush Mounted) | Minimum 25 mm |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -5°C to +40°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery | No |
| Smart Home Compatibility | Not Compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Wi-Fi Features | No Wi-Fi Signal Repeater or Bluetooth Speaker |
| Reference Number | REF. 733871 |
| EAN Code | 3245067338711 |
| Colour | Grey |
| Metallic Finish | Yes |
| Transparent | No |
| Lockable | No |
| Eject Mechanism | No |
| Hinged Lid | No |
| Label Space | No |
| Insulated Mounting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| Special Power Supply | None |
| Heavy Conditions (VDE) | No |
| Built-in Depth | 0 mm |
| Rotated Central Insert | No |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Complementary Luminous Signal | No |
| Number of USB-A Ports | 0 |
| Number of USB-C Ports | 0 |
| Number of Phases | 1 Phase |
| Imprint/Indication | Other |
| Cable Support | Other |
| Connected Object | No |
