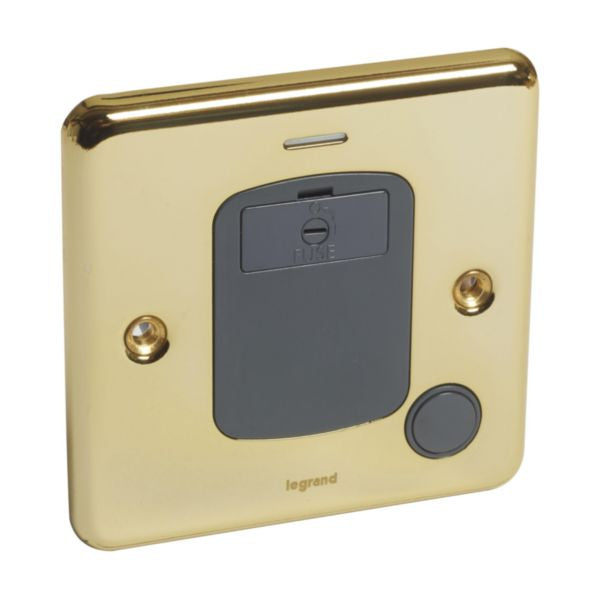

Shop Legrand Synergy Authentic Unswitched Fused Connection Unit Glossy Gold | 833433 In Iraq Best Prices
Premium 13A fused connection unit with cord outlet and blue LED indicator, featuring stainless steel Glossy Gold finish, screw terminals for 2x6mm² wires, compact design for 25mm back boxes, and UK manufacturing quality.
The Synergy Authentic Unswitched Fused Connection Unit in Glossy Gold is a premium electrical installation product designed for residential and commercial applications. This 13A, 250V rated unit combines a fused connection outlet with a cord outlet feature, offering enhanced safety and convenience. The product features a blue LED power indicator that displays the status of connected devices, ensuring users can easily monitor power supply. With screw-type terminals accepting wires up to 2x6mm², this unit provides secure and reliable electrical connections suitable for various appliances and devices.
The unit is engineered with a compact design that maximizes wiring space within back boxes as small as 25mm, making it ideal for space-constrained installations. The stainless steel plate in Glossy Gold finish provides excellent rust resistance and aesthetic appeal, complementing modern interior designs. Made in the UK to the highest quality standards, this product is delivered with screws suitable for both flush and surface boxes in plastic and metal configurations. The square 86x86mm cover plate with 7mm installation depth ensures a professional, flush appearance when installed on walls.
Designed for indoor use only, this Synergy Authentic unit represents a perfect blend of functionality, safety, and style. The monobloc complete product design means it arrives ready-to-install without requiring additional components. With an IK01 impact strength rating and IP20 protection degree, this fused connection unit is built to withstand everyday use while maintaining electrical safety standards. The operating temperature range of -5 to 40°C ensures reliable performance in various environmental conditions.
Key Features
- 13A, 250V rated electrical outlet with fused protection for enhanced safety
- Blue LED power indicator to monitor connected device status in real-time
- Cord outlet allows connection of external devices and appliances
- Stainless steel Glossy Gold finish provides rust resistance and premium aesthetics
- Screw-type terminals accept wires up to 2x6mm² for secure connections
- Compact design maximizes wiring space in back boxes as small as 25mm
- Square 86x86mm cover plate with 7mm installation depth for flush mounting
- Monobloc complete product arrives ready-to-install
- Made in UK to highest quality standards
- Includes screws for both plastic and metal flush/surface boxes
Technical Specifications
| Specification |
Value |
| Rated Current | 13A (Connection Type), 31A (Rated Current) |
| Rated Voltage | 250V AC |
| Type of Current | AC (Alternating Current) |
| Connection Type | Screw connection |
| Wire Capacity | 6-6mm² (accepts wires up to 2x6mm²) |
| Mounting Method | Front mounting |
| Dimensions | Width: 86mm, Height: 86mm, Depth: 29mm |
| Built-in Depth | 22mm |
| Fuse Dimensions | 5x25mm |
| Impact Strength Rating (IK) | IK01 |
| Protection Degree (IP) | IP20 |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -5°C to 40°C |
| Material - Plate | Stainless Steel |
| Finish Color | Glossy Gold |
| Product Type | Unswitched Fused Connection Unit with Cord Outlet |
| LED Indicator | Blue LED power indicator |
| Recommended Use | Indoor use only |
| Manufacturing Origin | Made in UK |
| Product Reference | REF. 833433 |
Order Legrand Synergy Authentic Unswitched Fused Connection Unit Glossy Gold | 833433 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
