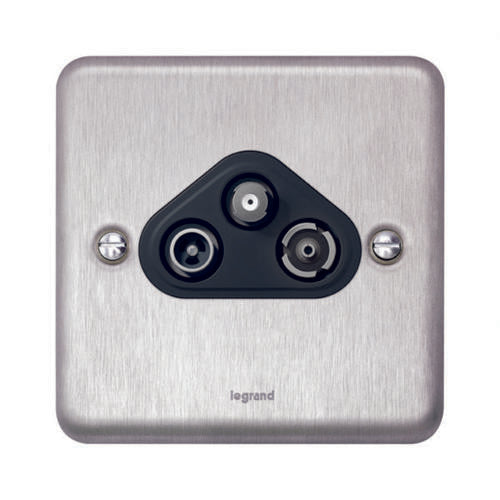

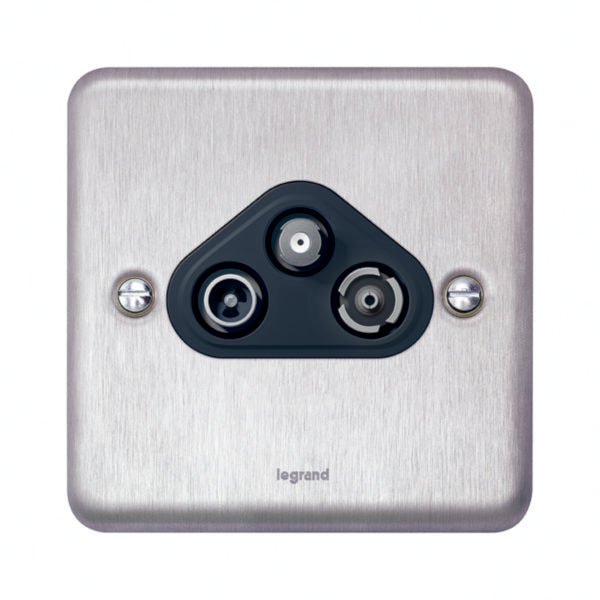

Shop Legrand Synergy Authentic TV-R-SAT Socket Brushed Stainless Steel 833043 | 833043 In Iraq Best Prices
Premium TV-R-SAT multimedia socket with Class A shield protection, brushed stainless steel finish, optimized for UHD/4K reception, includes installation hardware for flush and surface mounting
The Synergy Authentic TV-R-SAT socket is a premium multimedia outlet designed for modern home and building installations. This sophisticated device combines elegant brushed stainless steel aesthetics with advanced signal protection technology, making it ideal for contemporary interior designs. The socket features three integrated connectors: TV (male diameter 9.5mm), Radio/DAB+ (female connector diameter 9.5mm), and SAT (F-type connector), all optimized for UHD and 4K television reception.
This flush-mounted socket delivers exceptional performance with low attenuation of just 1dB maximum, ensuring superior signal quality for television, radio, and satellite applications. The Class A certified shield provides comprehensive protection from interference caused by modern mobile signals (3G, 4G, 5G), eliminating pixelation, image jamming, and sound disturbances. The monobloc design offers ready-to-install convenience with intuitive cable insertion and quick terminal block connections.
The product is engineered for professional installation with a square 86x86mm cover plate and 7mm thickness when mounted on walls. It comes complete with installation screws compatible with both plastic and metal flush-mounted boxes, making it versatile for various installation scenarios. The austenitic stainless steel Grade 304L construction ensures durability and non-magnetic properties, while halogen-free materials meet modern environmental and safety standards.
Key Features
- Class A certified shield protection against 3G, 4G, 5G interference for crystal-clear signal reception
- Low attenuation design with maximum 1dB loss ensures superior signal quality for TV, radio, and satellite
- Integrated three-connector system: TV (9.5mm male), Radio/DAB+ (9.5mm female), and SAT (F-type)
- Optimized for UHD and 4K television reception with professional-grade performance
- Austenitic stainless steel Grade 304L construction with non-magnetic properties and halogen-free materials
- Intuitive cable insertion design with quick terminal block connection for easy installation
- Complete installation package includes screws for both plastic and metal flush/surface boxes
- Square 86x86mm cover plate with 7mm installation depth for seamless wall integration
Technical Specifications
| Specification |
Value |
| Product Reference | 833043 |
| EAN Code | 3414970664921 |
| Brand | Legrand - Synergy Authentic |
| Socket Type | TV/Radio/SAT (TV-R-SAT) |
| Connector Types | TV: male 9.5mm, Radio: female 9.5mm, SAT: F-type connector |
| Number of Outlets | 3 |
| Mounting Method | Flush-mounted with full cover plate |
| Cover Plate Dimensions | 86 x 86 mm (square) |
| Installation Depth | 7 mm (once installed on wall) |
| Minimum Built-in Box Depth | 25 mm |
| Material | Austenitic stainless steel Grade 304L, non-magnetic |
| Finish | Brushed stainless steel |
| Attenuation | 1 dB maximum (1.5 dB at 860 MHz, 2 dB at 2150 MHz) |
| RF Band (TV/Radio) | 87.5-240 MHz |
| SAT Frequency Band | 950-2400 MHz |
| DAB+ | Yes |
| Cable Modem Compatible | No |
| Remote Power Supply | Yes |
| Degree of Protection (IP) | IP21 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Shield Certification | Class A certified (PKM laboratory certified) |
| Installation Hardware | Screws for flush and surface mounting in plastic and metal boxes included |
| Product Type | End socket - Monobloc complete ready-to-install product |
Order Legrand Synergy Authentic TV-R-SAT Socket Brushed Stainless Steel 833043 | 833043 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
